BRAKE SYSTEM 13
103
K01347-10
Main work

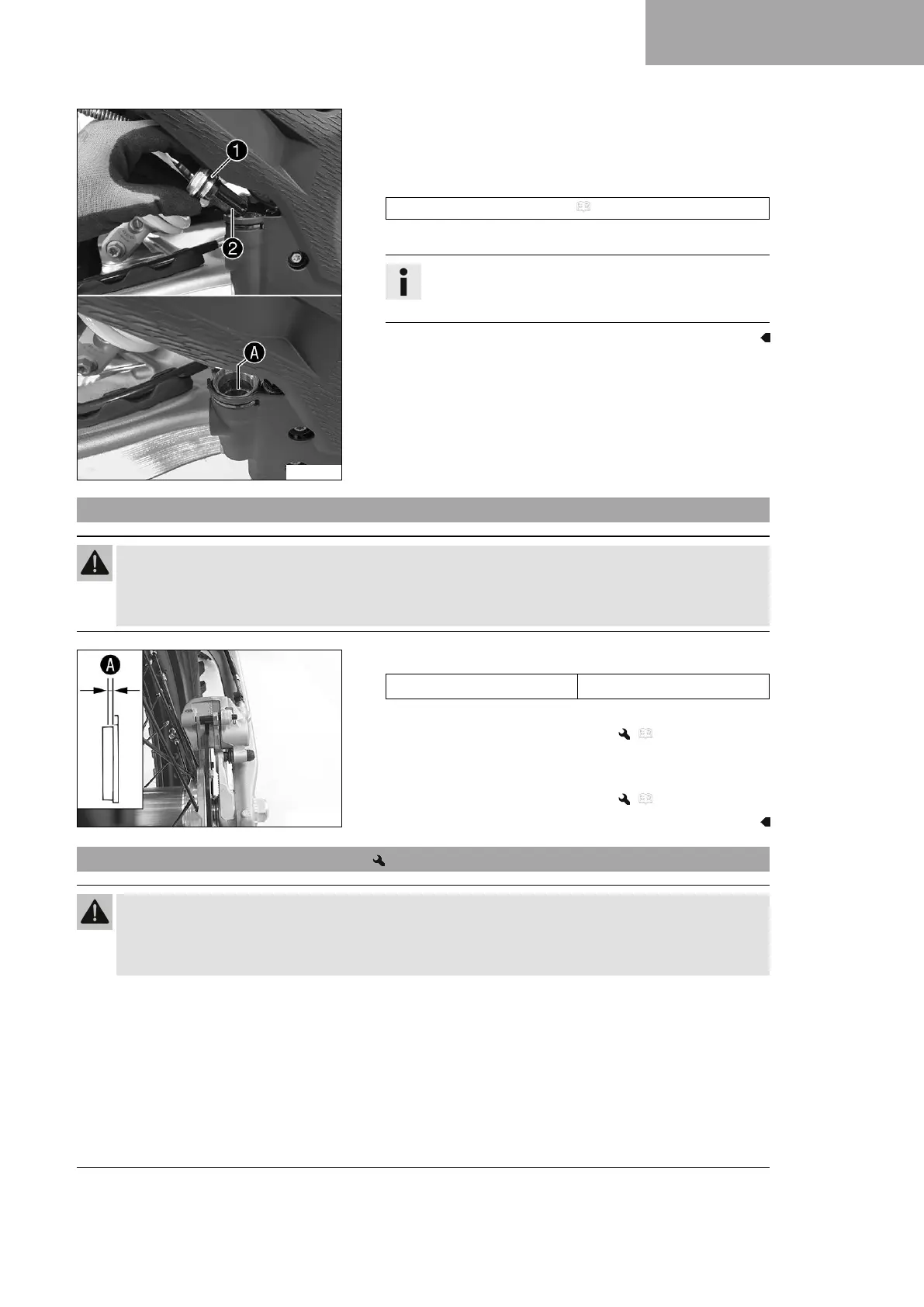

– Stand the vehicle upright.
–
Remove screw cap
1
with membrane
2
and the O-ring.
–
Add brake fluid to level
A
.
Brake fluid DOT 4 / DOT 5.1 ( p. 159)
– Mount the screw cap with the membrane and the O-ring.
Info
Clean up overflowed or spilled brake fluid immediately
with water.
13.12 Checking the rear brake linings
Warning
Danger of accidents Worn-out brake linings reduce the braking effect.
– Ensure that worn-out brake linings are replaced immediately. (Your authorized KTM workshop will be
glad to help.)
E00349-10
–
Check the brake linings for minimum thickness
A
.
Minimum thickness
A
≥ 1 mm (≥ 0.04 in)
» If the minimum thickness is less than specified:
– Change the rear brake linings. ( p. 103)
– Check the brake linings for damage and cracking.
» If damage or cracking is visible:
– Change the rear brake linings. ( p. 103)
13.13 Changing the rear brake linings
Warning
Danger of accidents Incorrect servicing will cause the brake system to fail.
– Ensure that service work and repairs are performed professionally. (Your authorized KTM workshop
will be glad to help.)
