ELECTRICAL SYSTEM 15
121

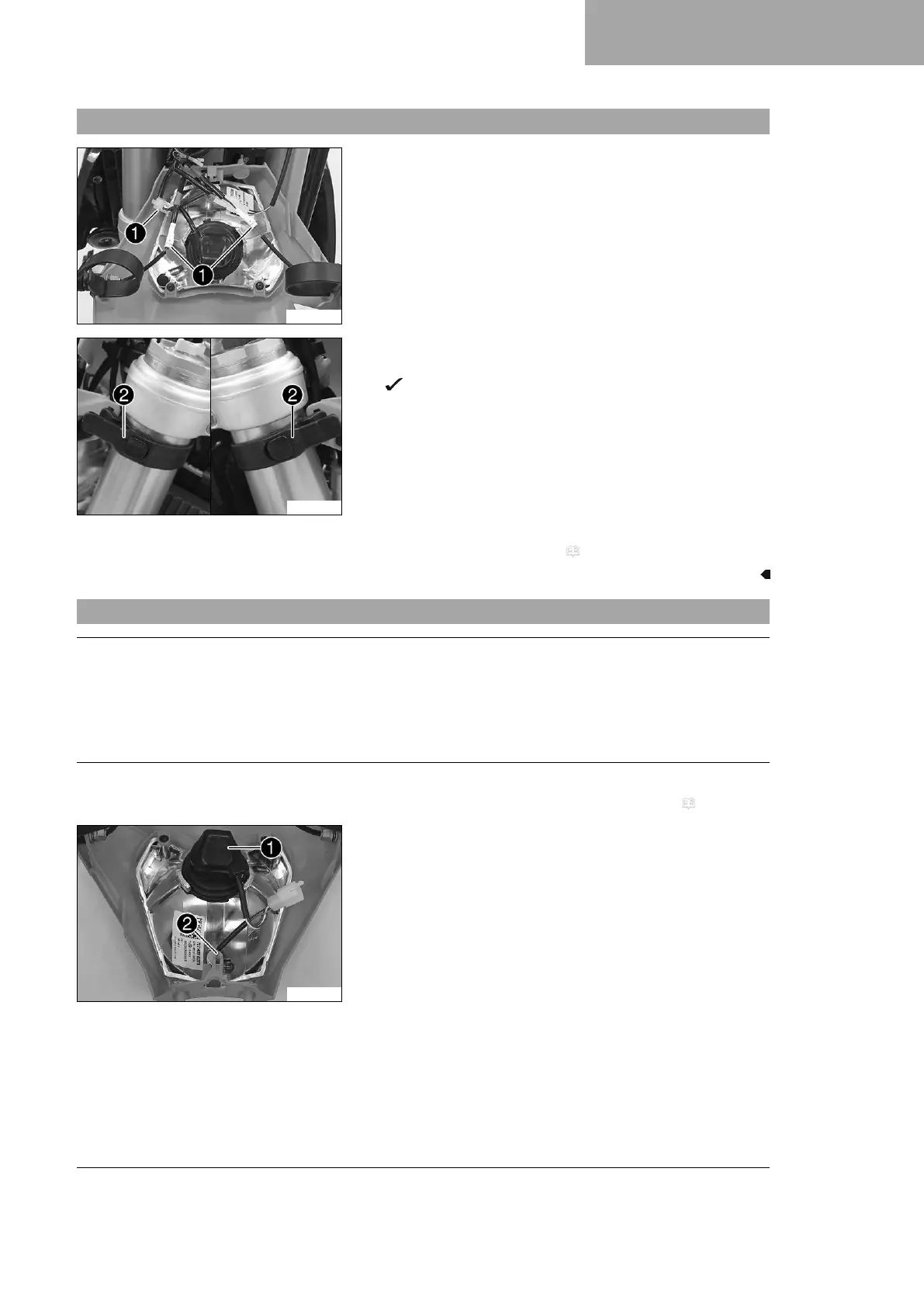

15.7 Installing the headlight mask with the headlight
S01328-11
Main work
–
Join plug-in connectors
1
.
V01782-11
– Position the headlight mask and secure it with rubber
straps
2
.
The holding lugs engage in the fender.
– Position the brake line and wiring harness in the brake line
guide.
Finishing work
– Check the headlight setting. ( p. 122)
15.8 Changing the headlight bulb
Note
Damage to reflector Grease on the reflector reduces the light intensity.
Grease on the bulb will evaporate due to the heat and be deposited on the reflector.
– Clean and degrease the bulbs before mounting.
– Do not touch the bulbs with your bare hands.
Preparatory work
– Remove the headlight mask with the headlight. ( p. 120)
V01783-10
Main work
–
Turn protection cap
1
together with the underlying bulb
socket counterclockwise all the way and remove it.
–
Pull bulb socket
2
of the position light out of the reflector.
