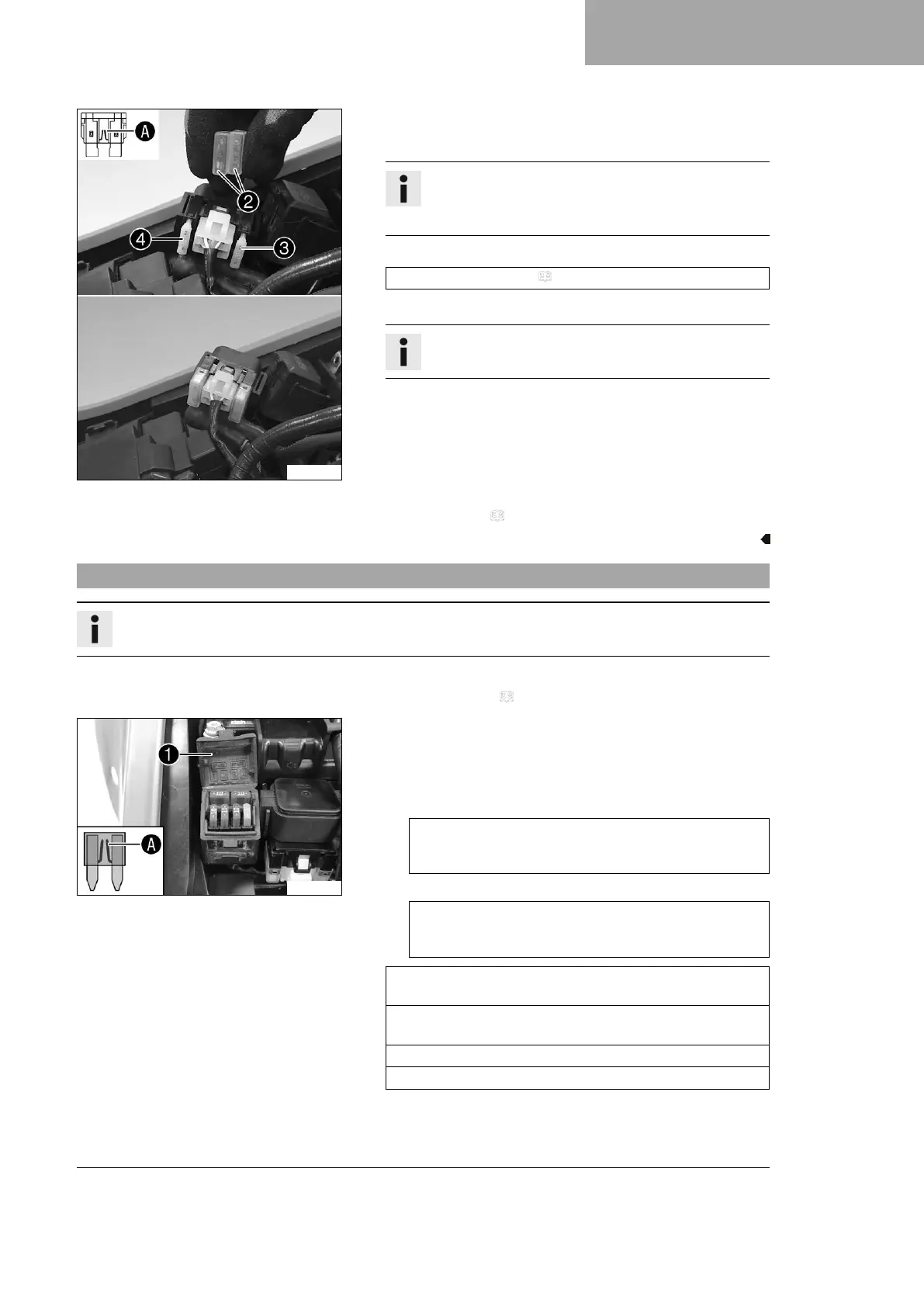

ELECTRICAL SYSTEM 15
119
V01781-10
–
Take off protection caps
2
.
–
Remove faulty main fuse
3
.
Info
A faulty fuse has a burned-out fuse wire
A
.
A spare fuse
4
is located in the starter relay.
– Insert a new main fuse.
Fuse (58011109120) ( p. 154)
– Check that the electrical system is functioning properly.
Tip
Insert a spare fuse so that it is available if needed.
– Mount the protection caps.
– Mount the starter relay onto the holder and route the cable.
Finishing work
– Mount the seat. ( p. 74)
15.5 Changing the fuses of individual electrical power consumers
Info
The fuse box containing the fuses of individual electrical power consumers is located under the seat.
Preparatory work
– Remove the seat. ( p. 73)
V01801-10
Main work
–
Open fuse box cover
1
.
– Remove the faulty fuse.
Guideline
(All EU models)
Fuse 1 – 10 A – EFI control unit, lambda sensor, combi-
nation instrument, combination switch (optional), elec-
tronic fuel injection, diagnostics connector, fuse 4
(EXC‑F BR)
Fuse 1 – 10 A – EFI control unit, combination instru-
ment, combination switch (optional), electronic fuel
injection, diagnostics connector, fuse 4
Fuse 2 ‑ 10 A ‑ high beam, low beam, position light, tail
light, license plate lamp
Fuse 3 - 10 A - radiator fan (optional), horn, brake light,
turn signal
Fuse 4 - 5 A - fuel pump
Fuses res - 10 A - spare fuse
