18 SERVICE WORK ON THE ENGINE
138

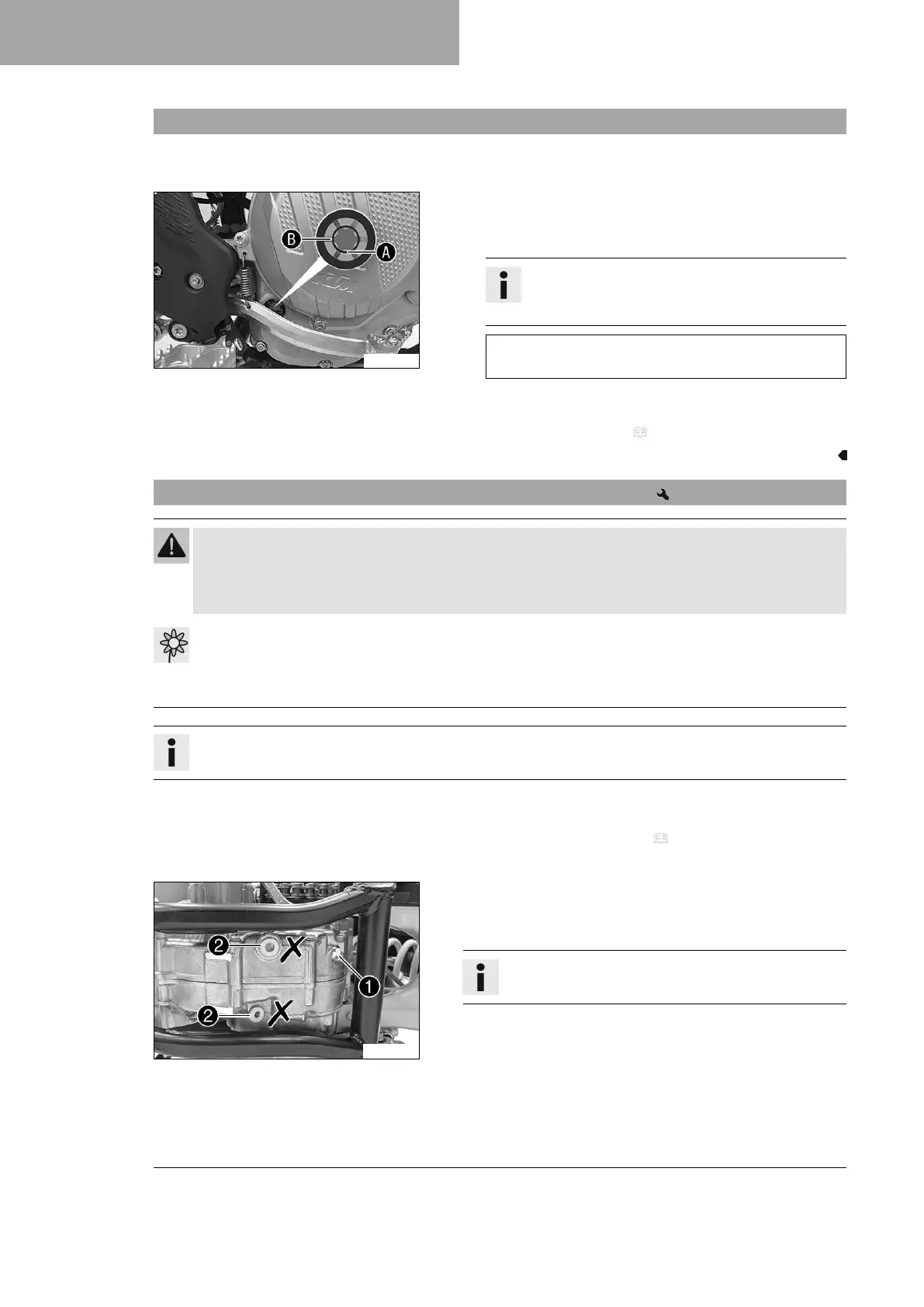

18.2 Checking the engine oil level
Preparatory work
– Stand the motorcycle upright on a horizontal surface.
V01822-10
Condition
The engine is at operating temperature.
– Check the engine oil level.
Info
After switching off the engine, wait one minute
before checking the level.
The engine oil is at a level between the lower edge
A
and the middle of the level viewer
B
.
»
If the engine oil is not up to the lower edge
A
of the
level viewer:
– Add engine oil. ( p. 140)
18.3 Changing the engine oil and oil filter, cleaning the oil screen
Warning
Danger of scalding Engine and gear oil get very hot when the motorcycle is ridden.
– Wear suitable protective clothing and safety gloves.
– In the event of scalding, rinse the area affected immediately with lukewarm water.
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
Drain the engine oil with the engine at operating temperature.
Preparatory work
(EXC‑F Six Days)
– Remove the engine guard. ( p. 93)
– Park the motorcycle on a level surface.
K00567-10
Main work
– Position an appropriate container under the engine.
–
Remove oil drain plug
1
with the magnet and seal ring.
Info
Do not remove screws
2
.
