12 SERVICE WORK ON THE CHASSIS
62

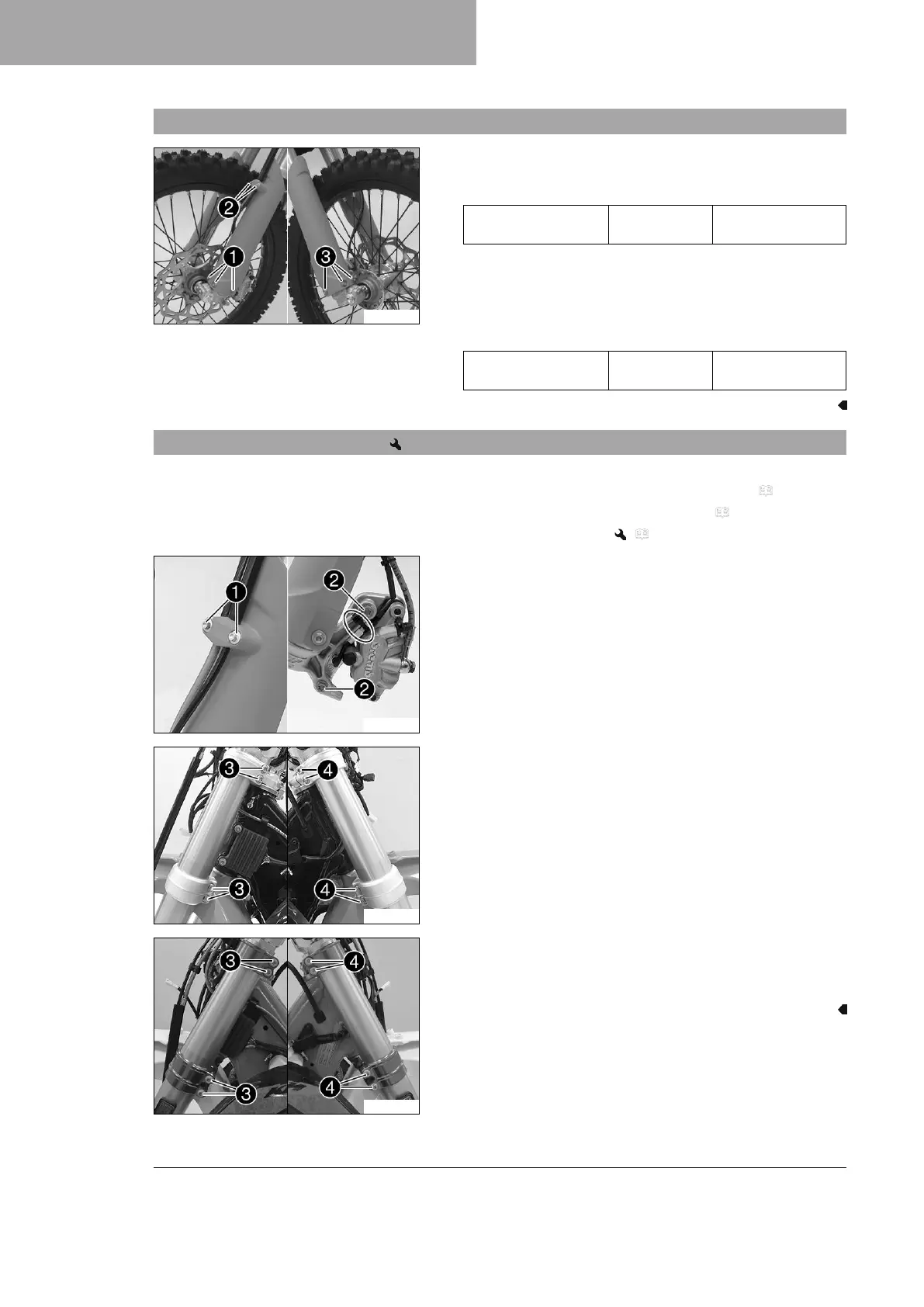

12.6 Installing the fork protector
V00332-11
– Position the fork protector on the left fork leg. Mount and
tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Position the brake line, wiring harness, and clamp. Mount and
tighten screws
2
.
– Position the fork protector on the right fork leg. Mount and
tighten screws
3
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
12.7 Removing the fork legs
Preparatory work
– Remove the headlight mask with the headlight. ( p. 120)
– Raise the motorcycle with the lift stand. ( p. 60)
– Remove the front wheel. ( p. 106)
K00545-10
Main work
–
Remove screws
1
and take off the clamp.
– Remove the cable ties.
–
Remove screws
2
and take off the brake caliper.
– Hang the brake caliper and the brake line loosely to the side.
V01756-10
(EXC‑F EU/BR)
–
Loosen screws
3
. Remove the left fork leg.
–
Loosen screws
4
. Remove the right fork leg.
V01784-10
(EXC‑F Six Days)
–
Loosen screws
3
. Remove the left fork leg.
–
Loosen screws
4
. Remove the right fork leg.
