ELECTRICAL SYSTEM 15
123
Info
A change in weight on the vehicle may require a correc-
tion of the headlight range.
–
Tighten screw
1
.
15.11 Changing the turn signal bulb
Note
Damage to reflector Grease on the reflector reduces the light intensity.
Grease on the bulb will evaporate due to the heat and be deposited on the reflector.
– Clean and degrease the bulbs before mounting.
– Do not touch the bulbs with your bare hands.
E00360-10

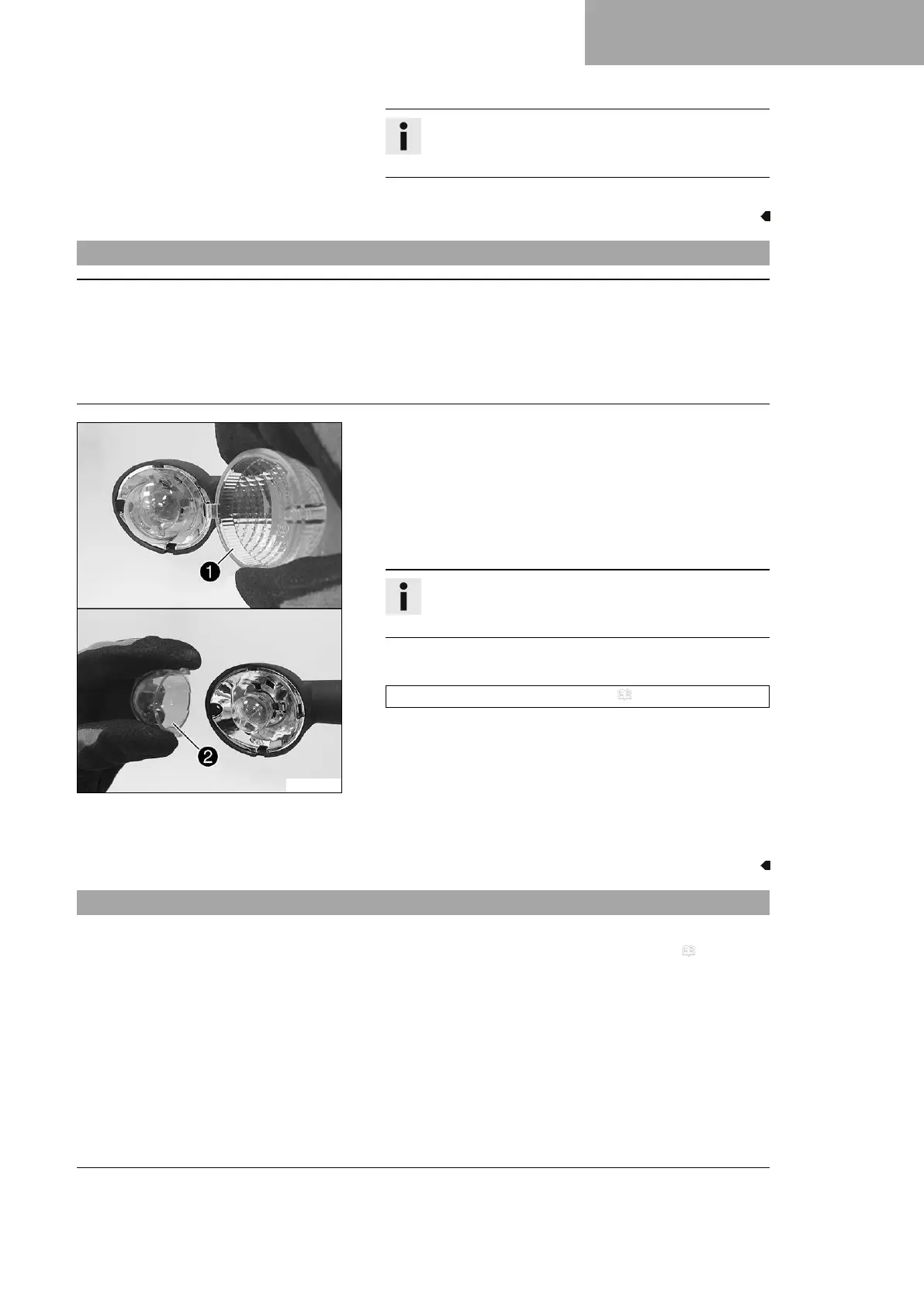

Main work
– Remove the screw on the rear of the turn signal housing.
–
Carefully remove turn signal glass
1
.
–
Lightly squeeze orange cap
2
in the area of the holding lugs
and take it off.
– Press the turn signal bulb lightly into the socket, turn it coun-
terclockwise by about 30°, and pull it out of the socket.
Info
Do not touch the reflector with your fingers and keep it
free from grease.
– Press the new turn signal bulb carefully into the socket and
turn it clockwise until it stops.
Turn signal (R10W / socket BA15s) ( p. 154)
– Mount the orange cap.
– Position the turn signal glass.
– Insert the screw and first turn counterclockwise until it
engages in the thread with a small jerk. Tighten the screw
lightly.
Finishing work
– Check that the turn signal system is functioning properly.
15.12 Changing the combination instrument battery
Preparatory work
– Remove the headlight mask with the headlight. ( p. 120)
