15 ELECTRICAL SYSTEM
124
V01807-10

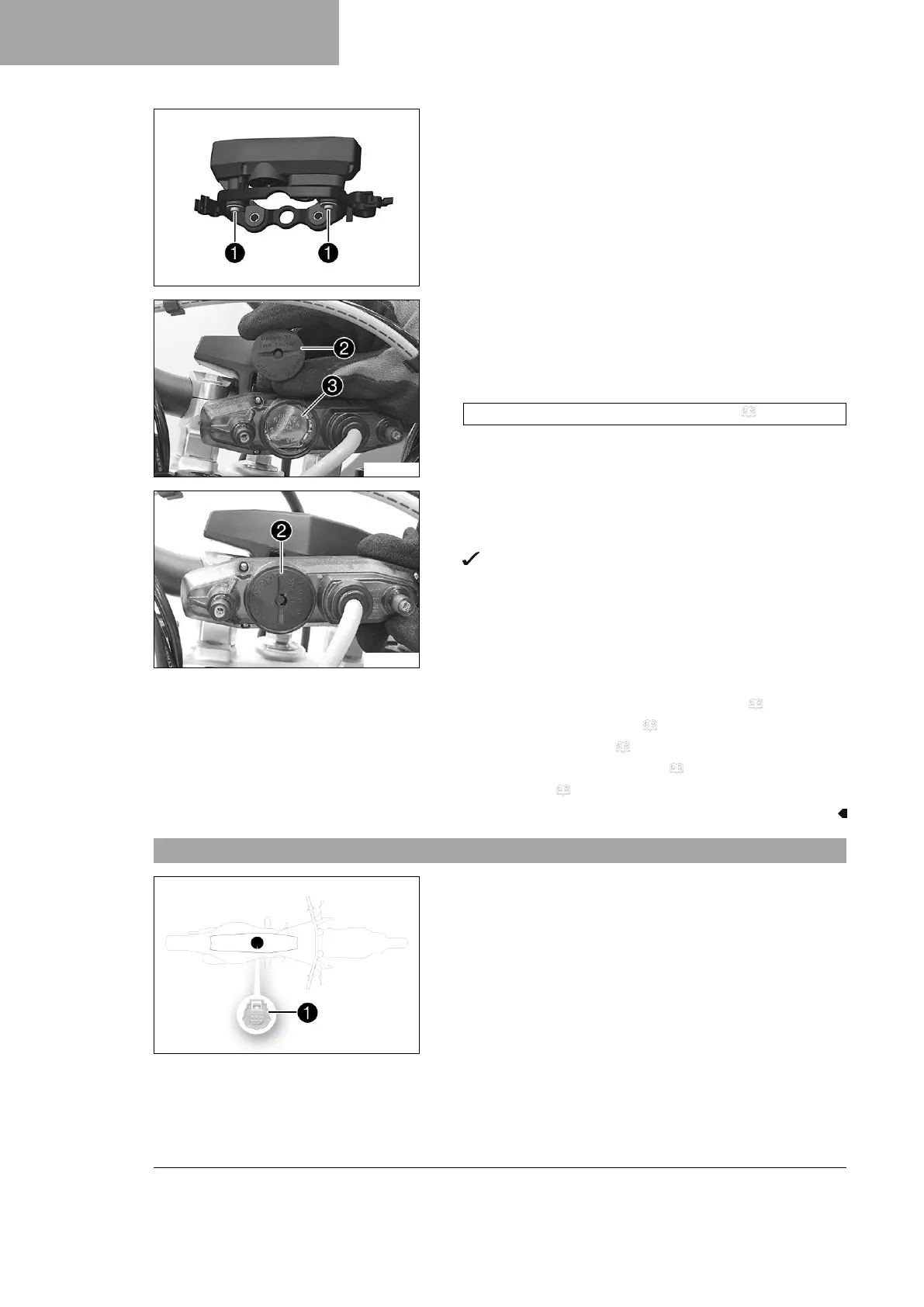

Main work
–
Remove screws
1
with the washers.
– Pull the combination instrument upward out of the holder.
V00371-10
–
Using a coin, turn protection cap
2
all the way counterclock-
wise and take it off.
–
Remove combination instrument battery
3
.
– Insert the combination instrument with the label facing
upward.
Combination instrument battery (CR 2430) ( p. 154)
– Check the O-ring of the protection cap for correct seating.
V00372-10
–
Position protection cap
2
and turn all the way clockwise
using a coin.
– Press any button on the combination instrument.
The combination instrument is activated.
– Position the combination instrument in the holder.
– Mount and tighten the screws with washers.
Finishing work
– Install the headlight mask with the headlight. ( p. 121)
– Check the headlight setting. ( p. 122)
– Set kilometers or miles. ( p. 23)
– Set the combination instrument. ( p. 24)
– Set the clock. ( p. 24)
15.13 Diagnostics connector
I00014-10
(All EU models)
Diagnostics connector
1
is located under the seat.
