12 SERVICE WORK ON THE CHASSIS
78

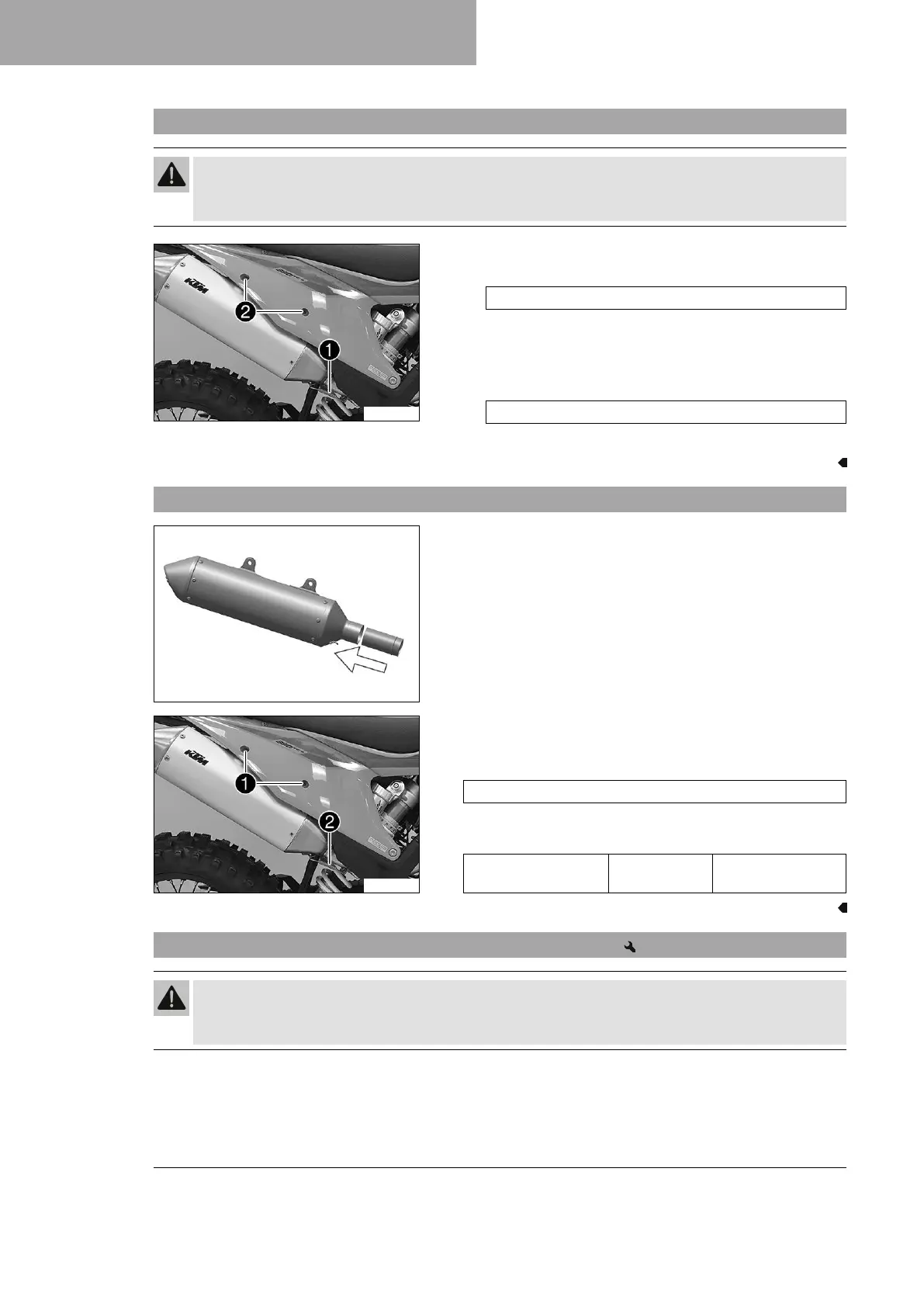

12.29 Removing the main silencer
Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
– Allow the exhaust system to cool down before performing any work on the vehicle.
V01814-10
(All EU models)
–
Detach spring
1
.
Spring hook (50305017000C1)
–
Remove screws
2
and take off the main silencer with the
catalytic converter.
(EXC‑F BR)
–
Detach spring
1
.
Spring hook (50305017000C1)
–
Remove screws
2
and take off the main silencer.
12.30 Installing the main silencer
S02101-10
(All EU models)
– Position the catalytic converter in the main silencer.
V01814-11
–
Position the main silencer. Mount screws
1
, but do not
tighten yet.
–
Attach spring
2
.
Spring hook (50305017000C1)
–
Tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
12.31 Changing the glass fiber yarn filling in the main silencer
Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
– Allow the exhaust system to cool down before performing any work on the vehicle.
