15 ELECTRICAL SYSTEM
120
E00361-10

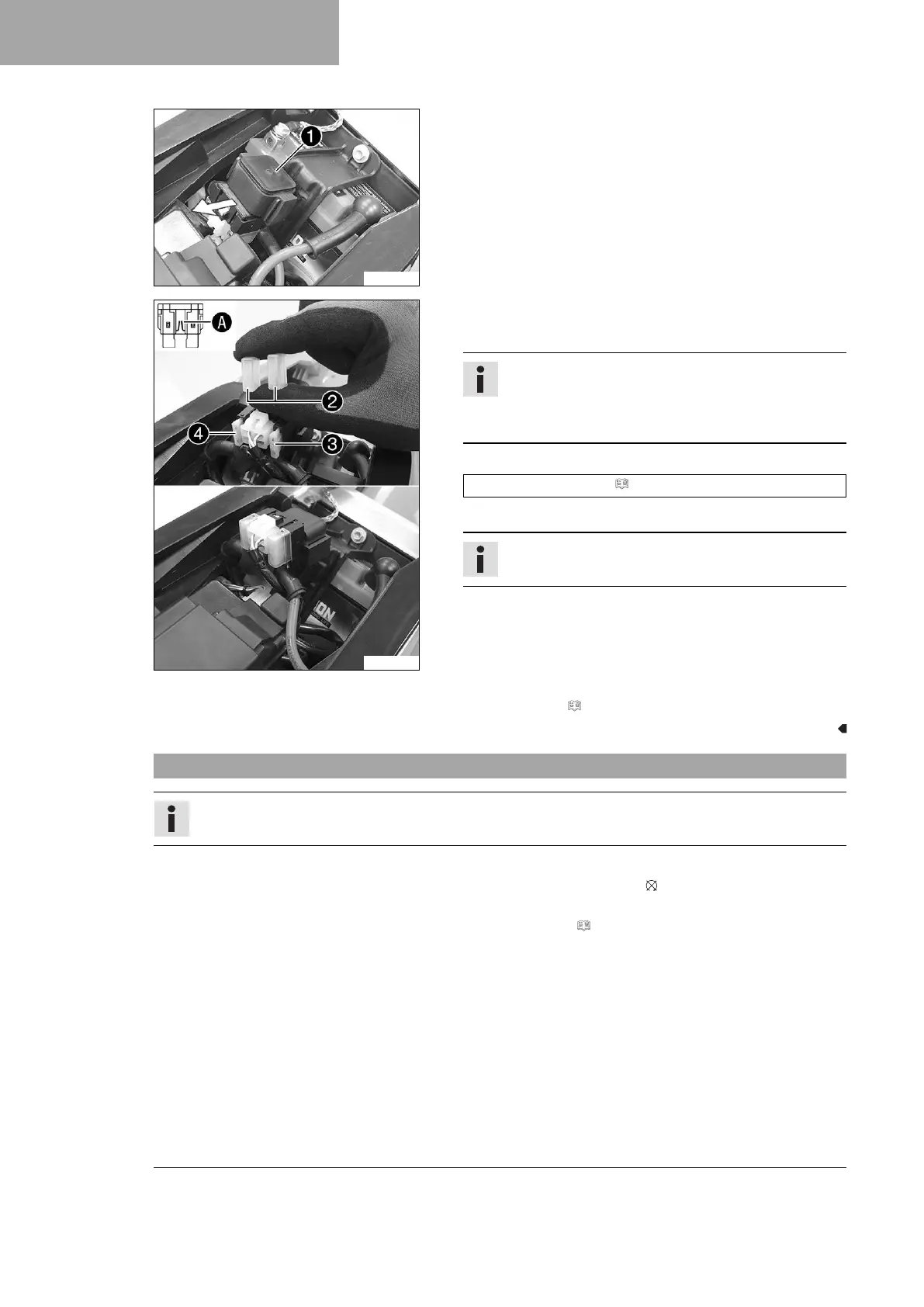

Main work
–
Pull starter relay
1
from the holder.
E00362-10
–
Take off protection caps
2
.
–
Remove faulty main fuse
3
.
Info
You can recognize a faulty fuse by a burned-out fuse
wire
A
.
A spare fuse
4
is located in the starter relay.
– Install a new main fuse.
Fuse (58011109120) ( p. 155)
– Check that the electrical equipment is functioning properly.
Tip
Insert a spare fuse so that it is available if needed.
– Mount the protection caps.
– Mount the starter relay onto the holder and route the cable.
Finishing work
– Mount the seat. ( p. 77)
15.5 Changing the fuses of individual power consumers
Info
The fuse box containing the fuses of individual power consumers is located under the seat.
Preparatory work
– Press and hold the kill switch while the engine is idling until
the engine stops.
– Remove the seat. ( p. 77)
