15 ELECTRICAL SYSTEM
125

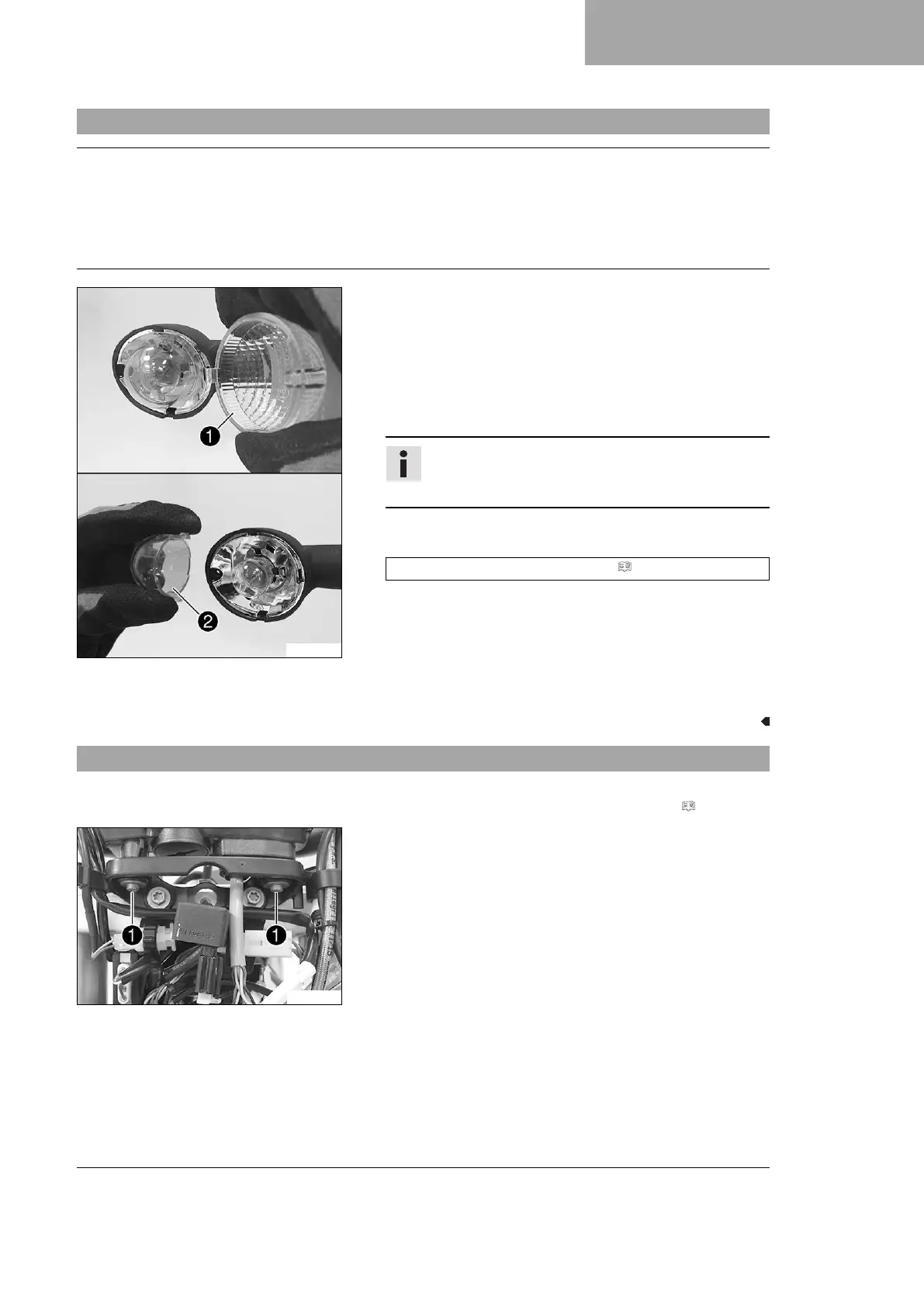

15.11 Changing the turn signal bulb
Note
Damage to reflector Grease on the reflector reduces the brightness.
Grease on the bulb will evaporate due to the heat and be deposited on the reflector.
– Clean and degrease the bulbs before mounting.
– Do not touch the bulbs with your bare hands.
E00360-10
Main work
– Remove the screw on the rear of the turn signal housing.
–
Carefully remove diffuser
1
.
–
Lightly squeeze orange cap
2
in the area of the holding lugs
and take it off.
– Press the turn signal bulb carefully into the socket, turn it
counterclockwise by about 30°, and take it out of the socket.
Info
Do not touch the reflector with your fingers, and keep it
free from grease.
– Press the new turn signal bulb carefully into the socket and
turn it clockwise until it stops.
Turn signal (R10W / socket BA15s) ( p. 155)
– Mount the orange cap.
– Position the diffuser.
– Insert the screw and first turn it counterclockwise until it
engages in the thread. Tighten the screw slightly.
Finishing work
– Check that the turn signal system is functioning properly.
15.12 Changing the combination instrument
Preparatory work
– Remove the headlight mask with the headlight. ( p. 122)
V00370-10
Main work
–
Remove screws
1
with the washers.
– Pull the combination instrument upward out of the holder.
