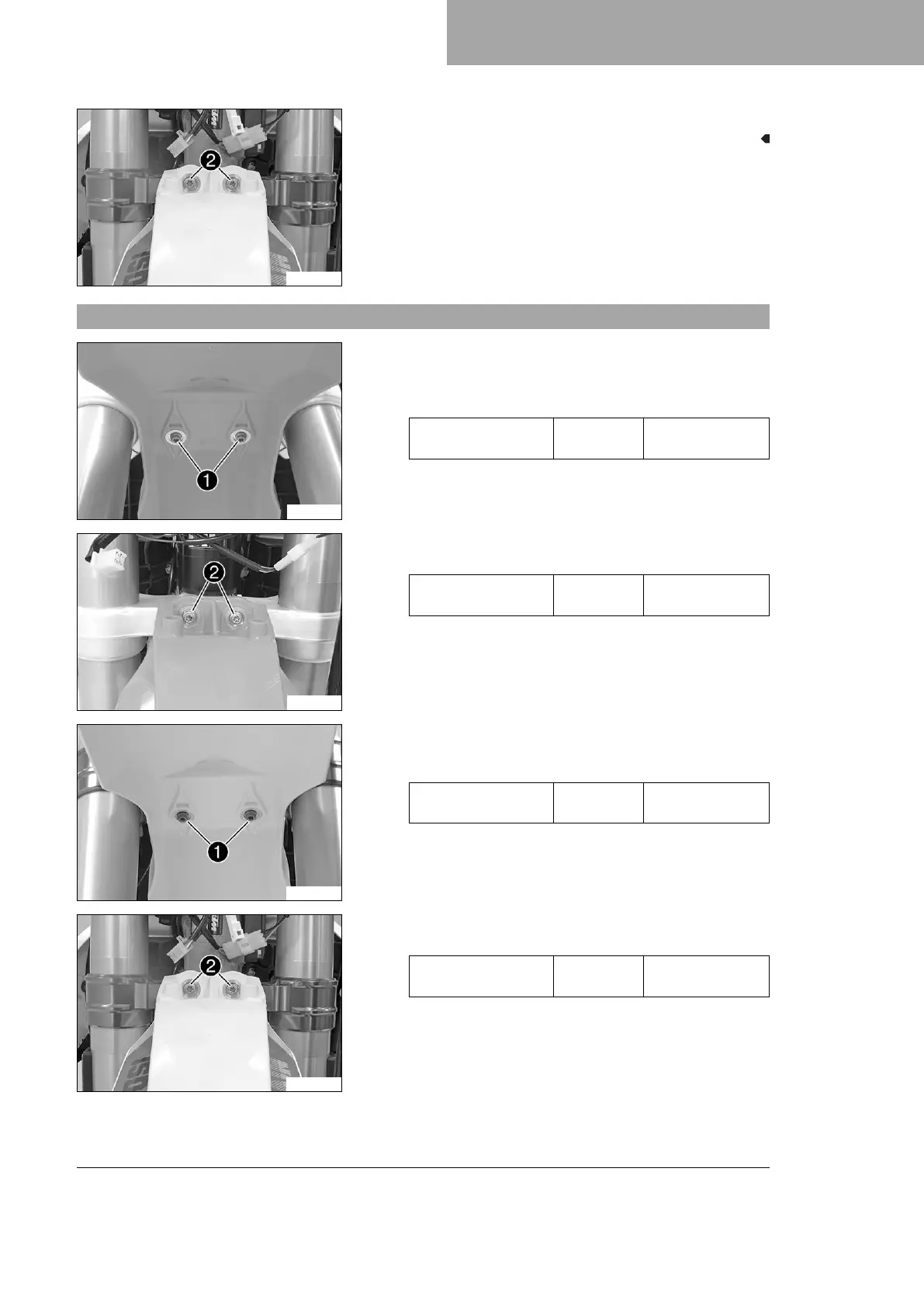

12 SERVICE WORK ON THE CHASSIS

S01321-10

–

Remove screws

. Remove front fender.

12.18 Installing front fender

V00340-10

Main work

(EXC‑F EU/AU/BR)

–

Position front fender. Mount and tighten screws

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

V00341-10

–

Mount and tighten screws

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

K00576-10

(EXC‑F Six Days)

–

Position front fender. Mount and tighten screws

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

S01321-10

–

Mount and tighten screws

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)
