KTM 250 EXC-F EU 2018 User Manual

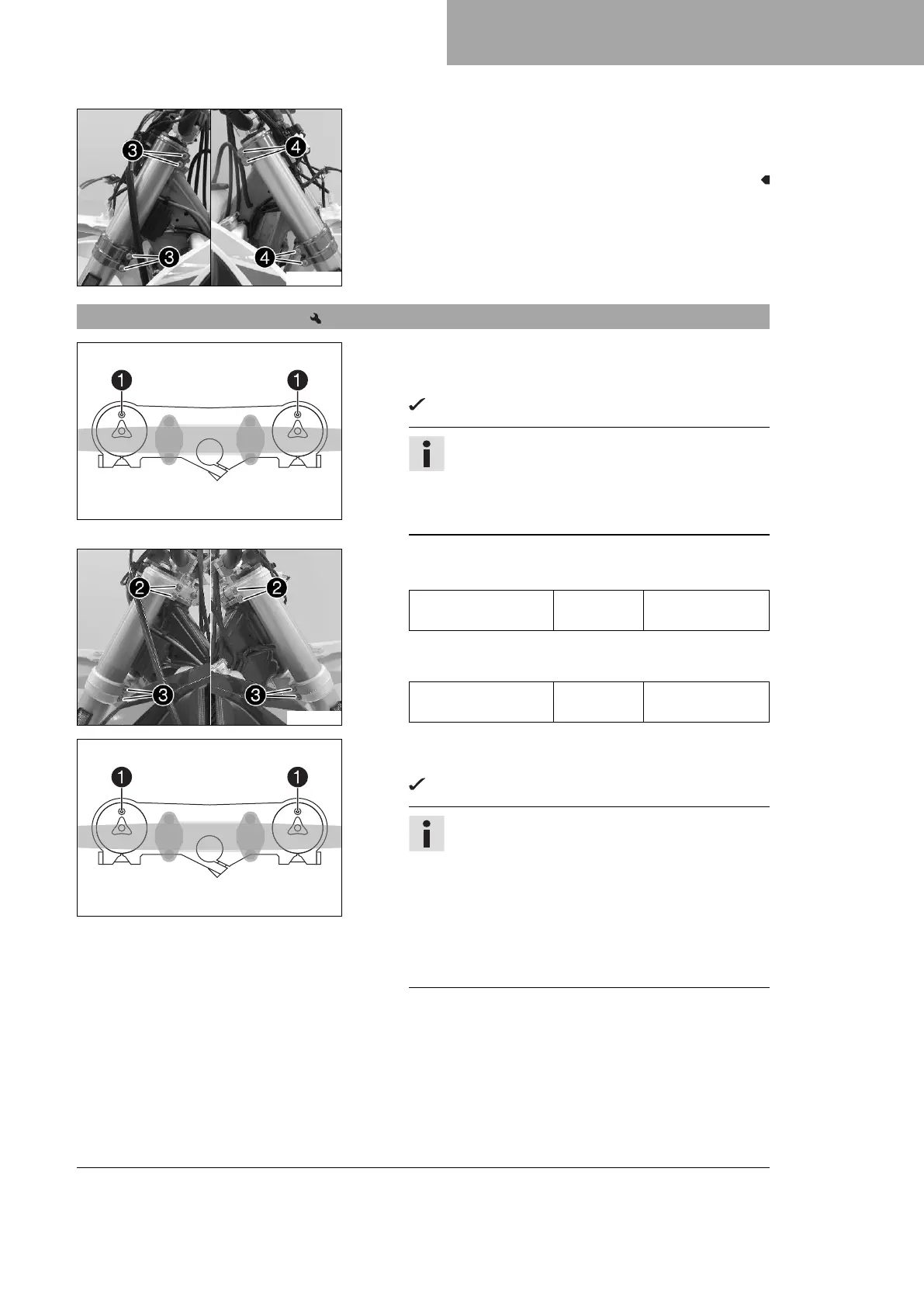

12 SERVICE WORK ON THE CHASSIS
65
E00378-10
(EXC‑F Six Days)
–
Loosen screws
3
. Take out the left fork leg.
–
Loosen screws
4
. Take out the right fork leg.
12.8 Installing the fork legs
402556-10
Main work
(EXC‑F EU/AU/BR)
– Position the fork legs.
Bleeder screws
1
are positioned toward the front.
Info
Grooves are milled into the side of the upper end of
the fork legs. The second milled groove (from the
top) must be flush with the top edge of the upper
triple clamp.
V00452-11
–
Tighten screws
2
.
Guideline
Screw, top triple
clamp
M8 20 Nm
(14.8 lbf ft)
–
Tighten screws
3
.
Guideline
Screw, bottom triple
clamp
M8 15 Nm
(11.1 lbf ft)
402556-10
(EXC‑F Six Days)
– Position the fork legs.
Bleeder screws
1
are positioned toward the front.
Info
The rebound damping is located in right fork
leg REB (red adjusting screw). The compression
damping is located in left fork leg COM (white
adjusting screw).
Grooves are milled into the side of the upper end of
the fork legs. The second milled groove (from the
top) must be flush with the top edge of the upper
triple clamp.
