12 SERVICE WORK ON THE CHASSIS
91

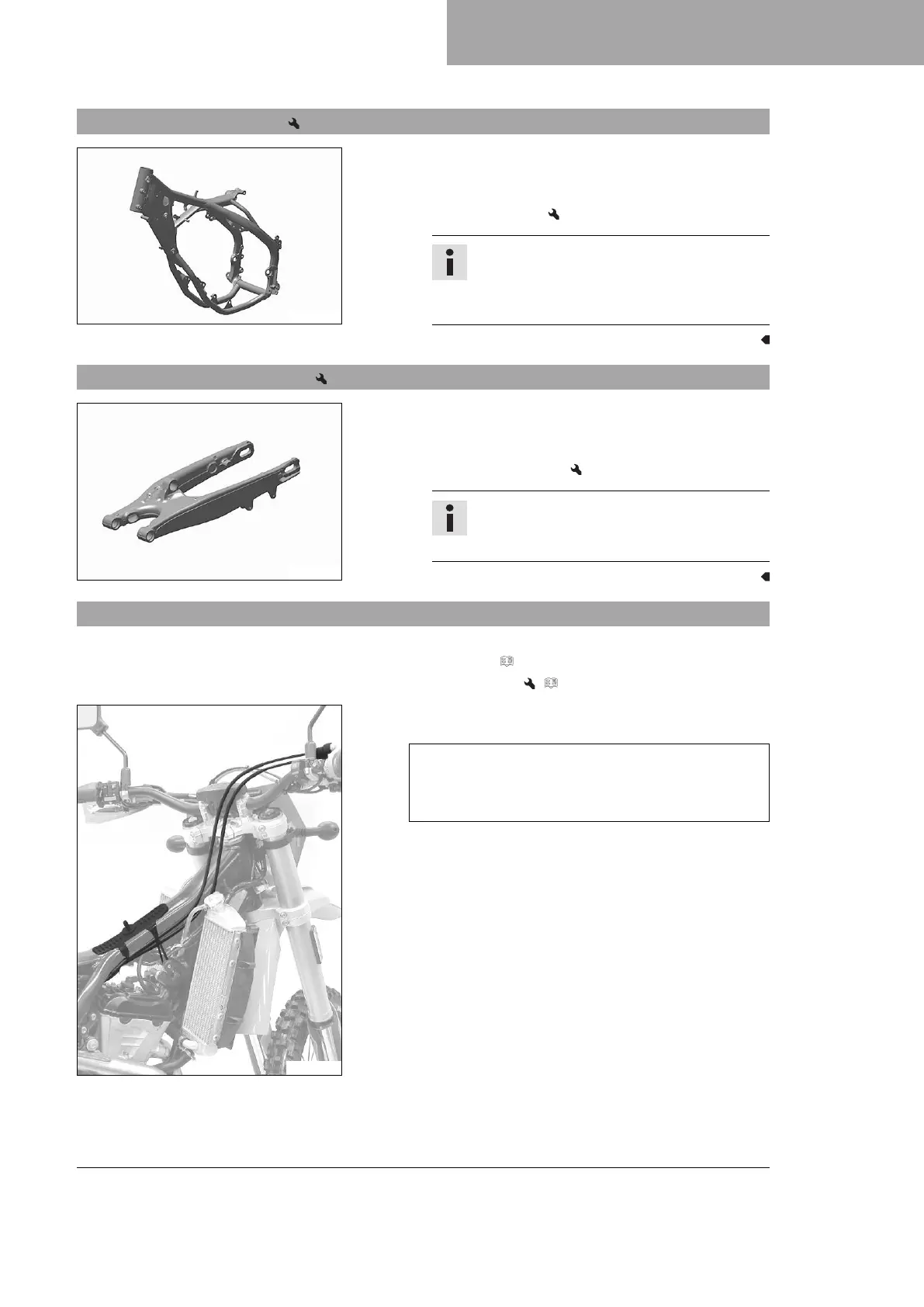

12.40 Checking the frame
S01316-10
– Check the frame for cracking and deformation.
» If the frame exhibits cracking or deformation due to a
mechanical impact:
– Change the frame.
Info
Always replace a frame that has been dam-
aged due to a mechanical impact. Repair of the
frame is not authorized by KTM.
12.41 Checking the swingarm
S01317-10
– Check the swingarm for damage, cracking, and deformation.
» If the swingarm shows signs of damage, cracking, or defor-
mation:
– Change the swingarm.
Info
Always change a damaged swingarm. Repair of
the swingarm is not authorized by KTM.
12.42 Checking throttle cable routing
Preparatory work
– Remove the seat. ( p. 77)
– Remove the fuel tank. ( p. 82)
E00392-01
Main work
– Check throttle cable routing.
Both throttle cables must be routed, side by side, on the
back of the handlebars and above the fuel tank bracket,
to the throttle valve body. Both throttle cables must be
secured behind the fuel tank contact area rubber band.
» If the throttle cable routing is not as specified:
– Correct throttle cable routing.
