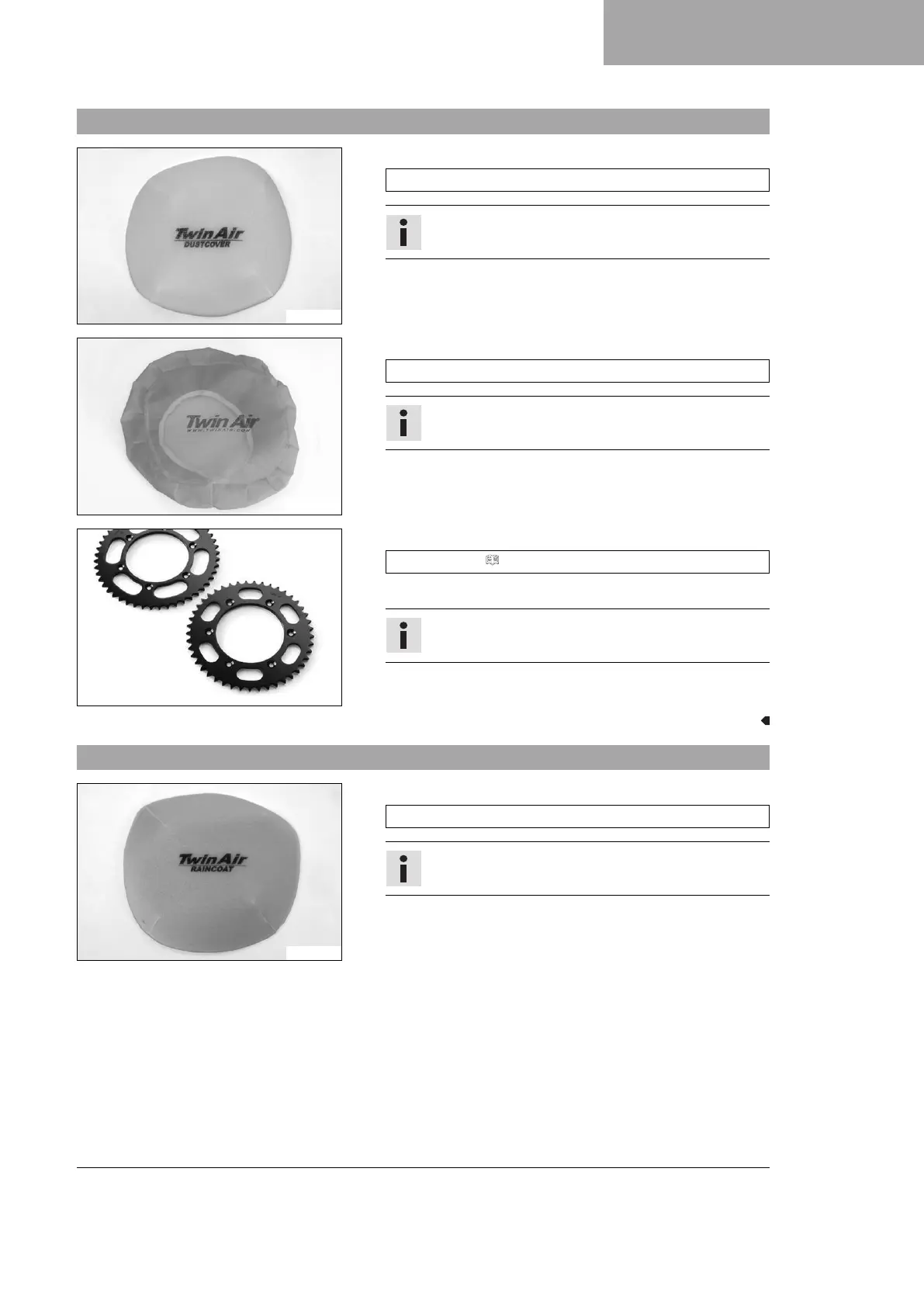

8 PREPARING FOR USE

8.5 Preparing for rides on dry sand

102136-01

– Fit a dust cover on the air filter.

Dust cover for air filter (79006920000)

Info

See the KTM PowerParts fitting instructions.

102138-01

– Fit a sand cover on the air filter.

Sand cover for air filter (79006922000)

Info

See the KTM PowerParts fitting instructions.

600868-01

– Clean the chain.

Chain cleaner ( p. 162)

– Fit the steel sprocket.

Tip

Do not grease the chain.

– Clean the radiator fins.

– Straighten bent radiator fins carefully.

8.6 Preparing for rides on wet sand

102137-01

– Fit a rain cover on the air filter.

Waterproofing device for air filter (79006921000)

Info

See the KTM PowerParts fitting instructions.
