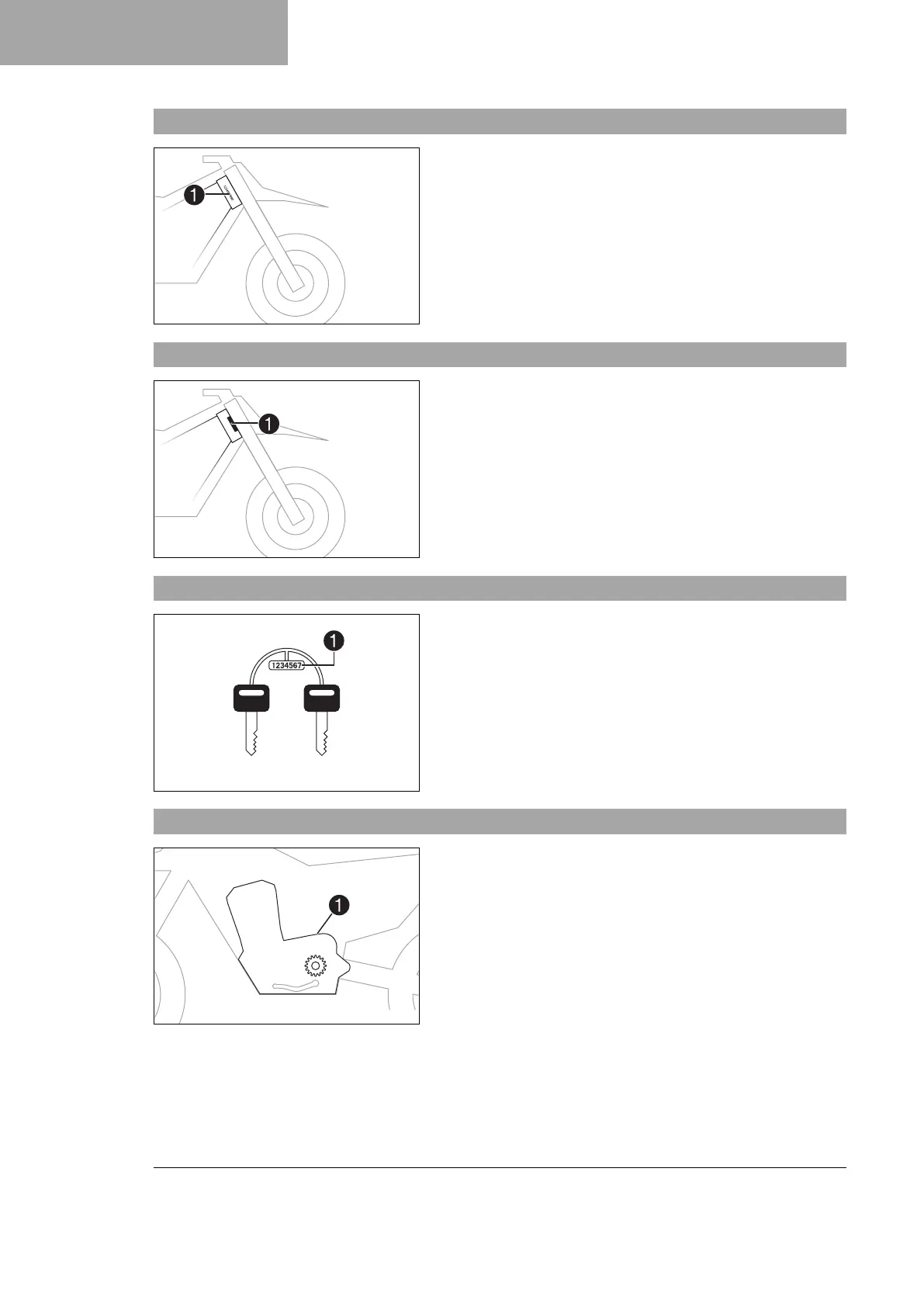

5 SERIAL NUMBERS

5.1 Chassis number

401945-10

The chassis number

is stamped on the steering head on the

right.

5.2 Type label

401946-10

The type label

is fixed to the front of the steering head.

5.3 Key number

402247-10

The key number

for the steering lock is stamped onto the key

connector.

5.4 Engine number

H01047-10

Engine number

is embossed on the left side of the engine over

the engine sprocket.
