6 CONTROLS
17

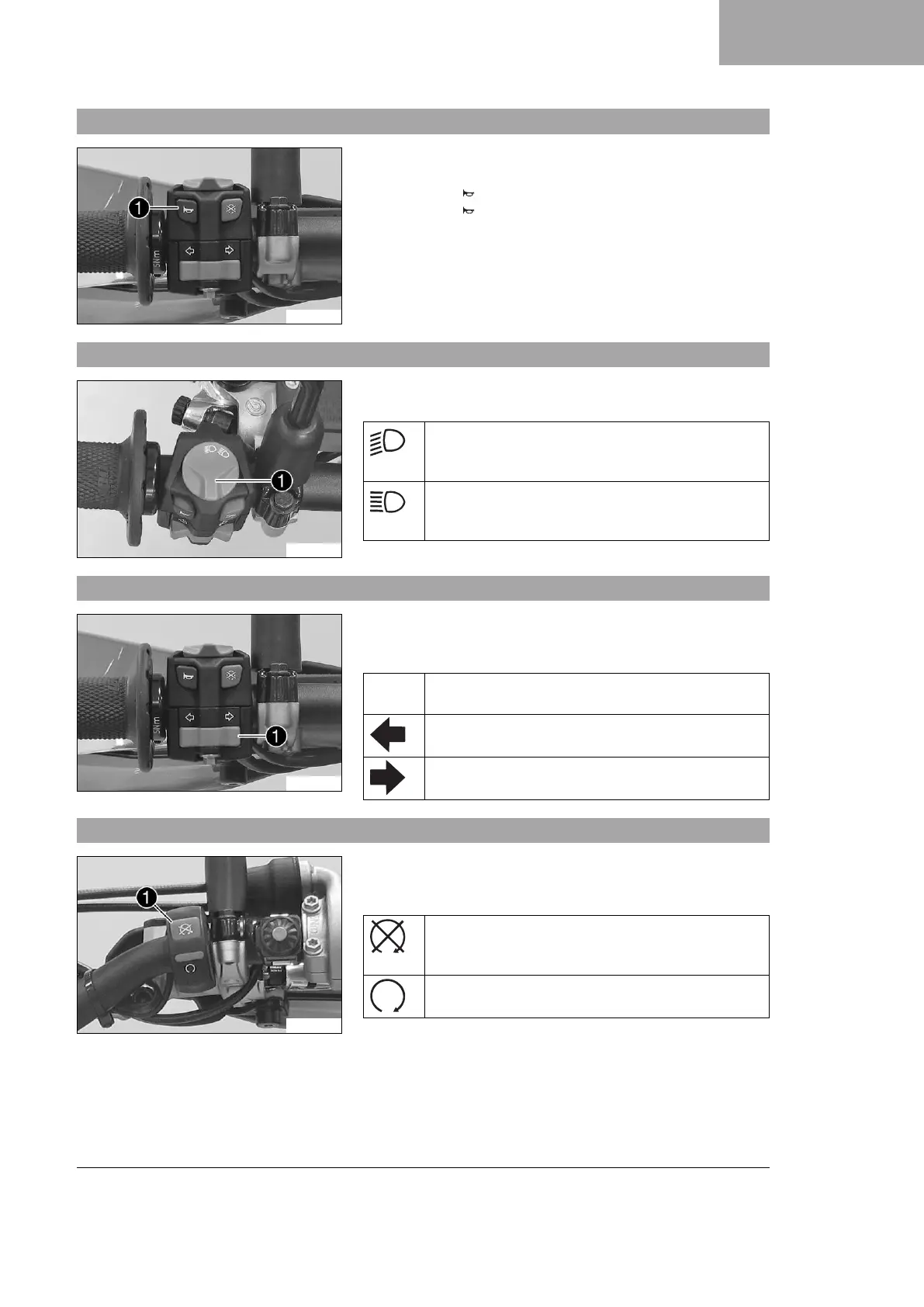

6.5 Horn button
S01303-10
The horn button
1
is fitted on the left side of the handlebar.
Possible states
• Horn button in neutral position
• Horn button pressed – The horn is operated in this posi-
tion.
6.6 Light switch
S01307-10
The light switch
1
is fitted on the left side of the handlebar.
Possible states
Low beam on – Light switch is in the central posi-
tion. In this position, the low beam and tail light are
switched on.
High beam on – The light switch is turned counter-
clockwise. In this position, the high beam and the tail
light are switched on.
6.7 Turn signal switch
S01304-10
The turn signal switch
1
is fitted on the left side of the handle-
bar.
Possible states
Turn signal off – Turn signal switch is in the central
position.
Turn signal, left, on – The turn signal switch is turned
to the left.
Turn signal, right, on – The turn signal switch is
turned to the right.
6.8 Emergency OFF switch
S01300-10
The emergency OFF switch
1
is fitted on the right side of the
handlebar.
Possible states
Ignition off – In this position, the ignition circuit
is interrupted, a running engine stops, and a
non-running engine will not start.
Ignition on – In this position, the ignition circuit is
closed and the engine can be started.
