13GRASS CATCHER MOUNTING
ENGLISH
5. Attach the couplers to the hose with the same color
tag.
6. Connect the wire harness.
BDismounting the grass catcher
For dismounting the grass catcher, reverse the above
procedures.
<Low Dump>
BMounting the bag
1. Park the machine on a level ground, shut off the
engine and remove the key.
2. Turn the lock levers to outside of the machine.
3. Slide the container pins into the hook.

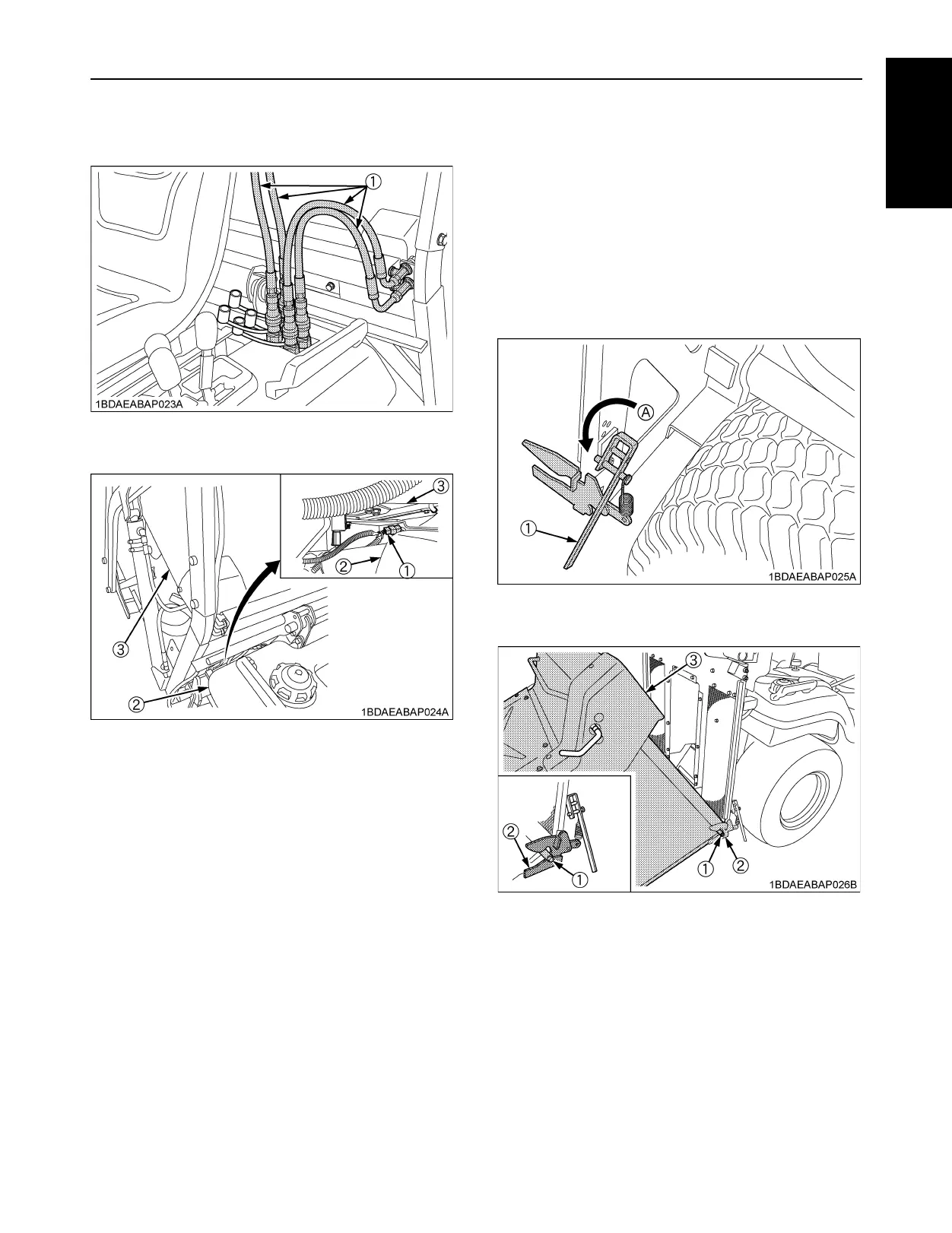

(1) Hydraulic hose
(1) Coupler
(2) Machine
(3) Grass catcher
(1) Lock lever (A) "UNLOCK"
(1)
(2)
(3)
Container pin
Hook
Grass catcher
