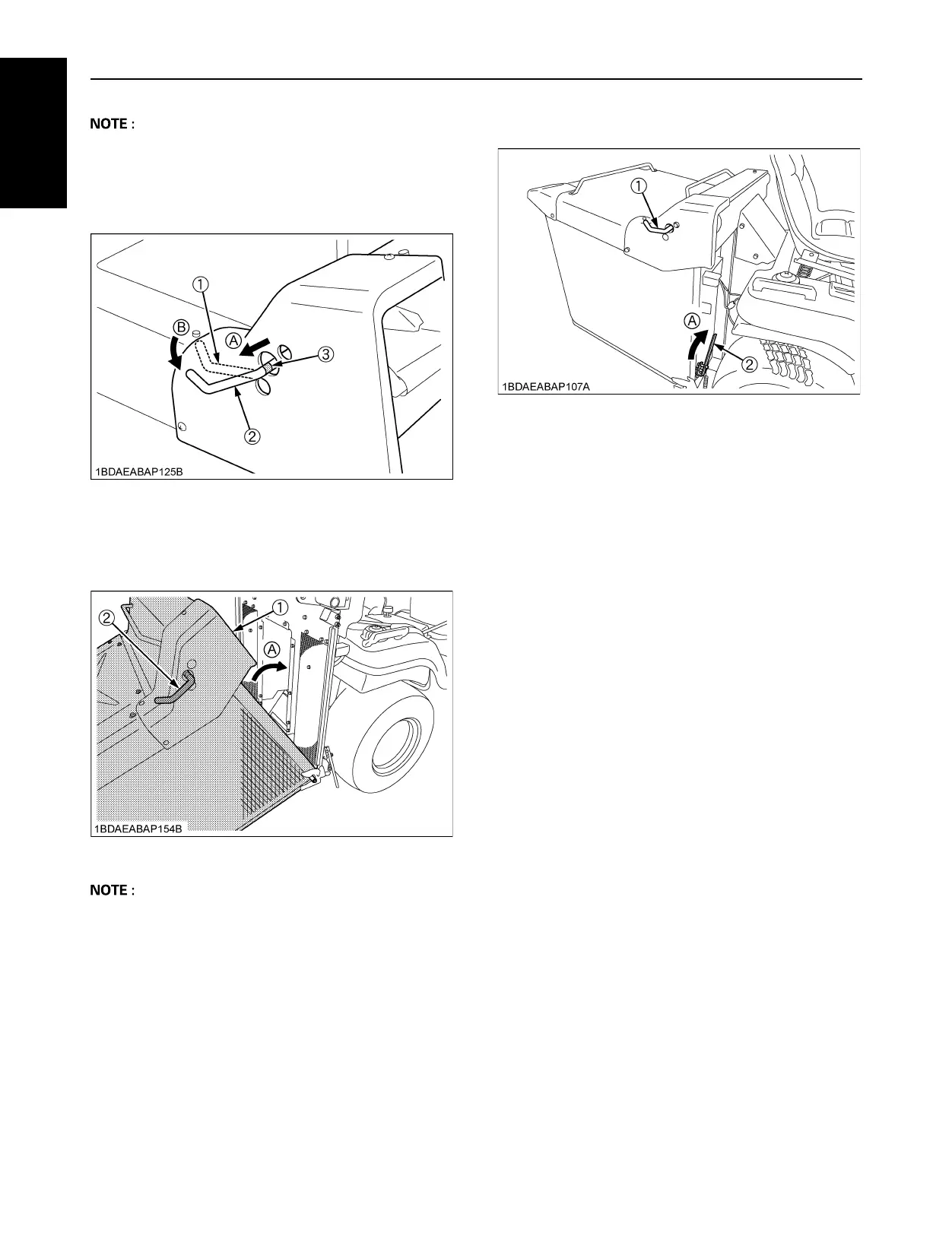

GRASS CATCHER MOUNTING14
ENGLISH
A L pin must be in unlock position.
A When L pin are unlocked, the pin lock labels can be
seen from outside.
When L pin are locked, the pin lock labels can not be
seen from outside.
4. Tilt the grass catcher forward, and then lock the both L
pins.
A Make sure that the both L pins were locked.
5. Turn the lock levers to inside of the machine.
BDismounting the grass catcher
1. Shut off the engine.
2. Move the grass container control lever several times.
3. Reverse the above procedures.
(1) L pin (Lock)
(2) L pin (Unlock)
(3) Pin lock label
(A) "PULL"
(B) "TURN"
(1) Grass catcher
(2) L pin
(A) "FORWARD"
(1) L pin
(2) Lock lever
(A) "LOCK"
