71PERIODIC SERVICE
ENGLISH

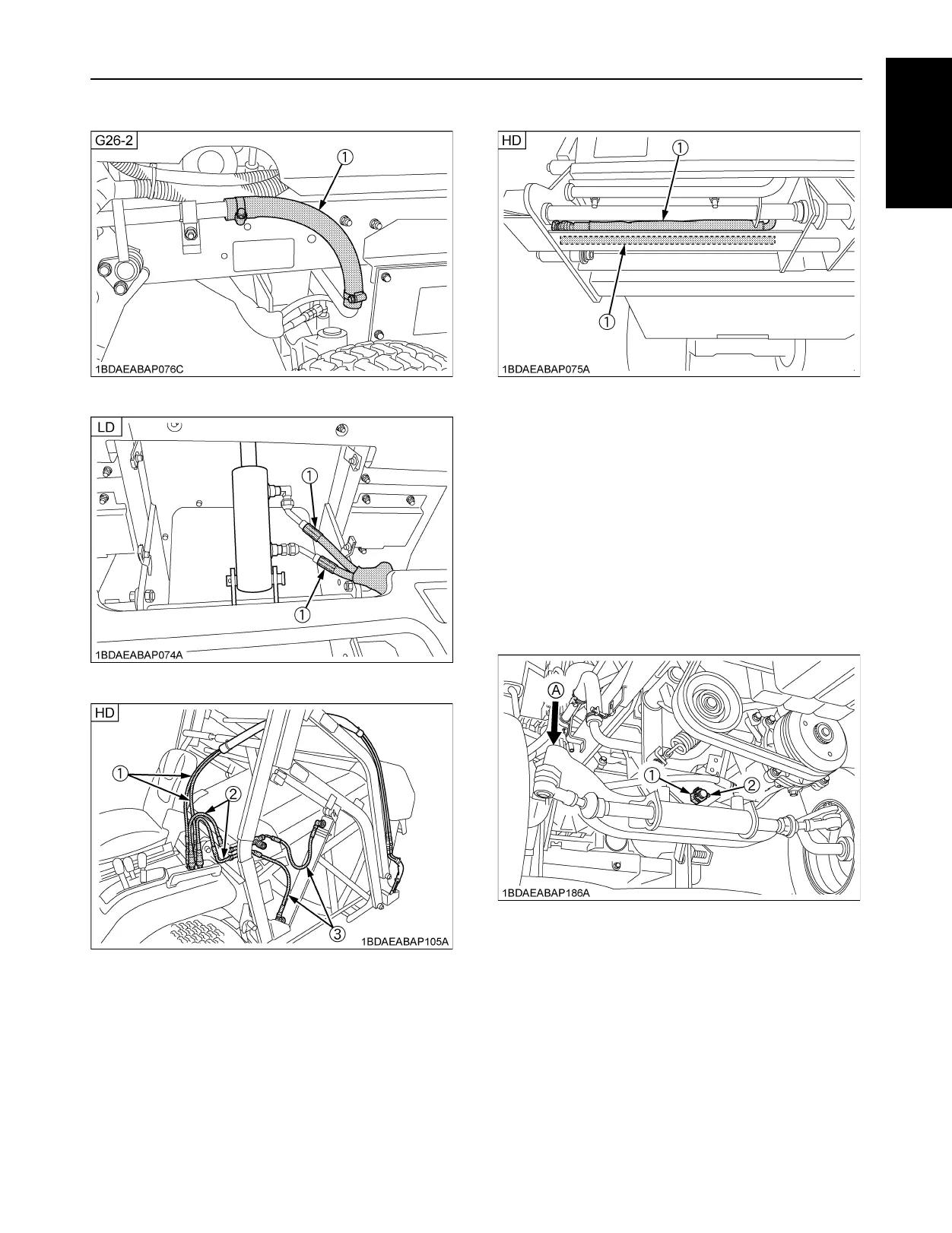

BAdjusting Front Axle Pivot
If the front axle pivot pin adjustment is not correct, front
wheel vibration can occur causing vibration in the steering
wheel.
C Adjusting procedure
Remove the split pin, tighten the adjusting nut (swing
force 20 to 300 N, 2.0 to 30.6 kgf), then make sure that
one of the nut slots aligns with the split pin hole, tighten
the nut slightly clockwise if necessary to align. Replace
the split pin.
(1) Front PTO return hose
(1) Grass container dump cylinder hose
(1) Grass container dump cylinder hose
(2) Grass container lift cylinder hose
(3) Grass container lift cylinder hose (LH)
(1) Grass container dump cylinder hose
(1) Adjusting nut (A) Swing force
(2) Split pin
To Next Page
