10. A.C. GENERATOR/STARTER CLUTCH
10-3
GRAND DINK 125/150

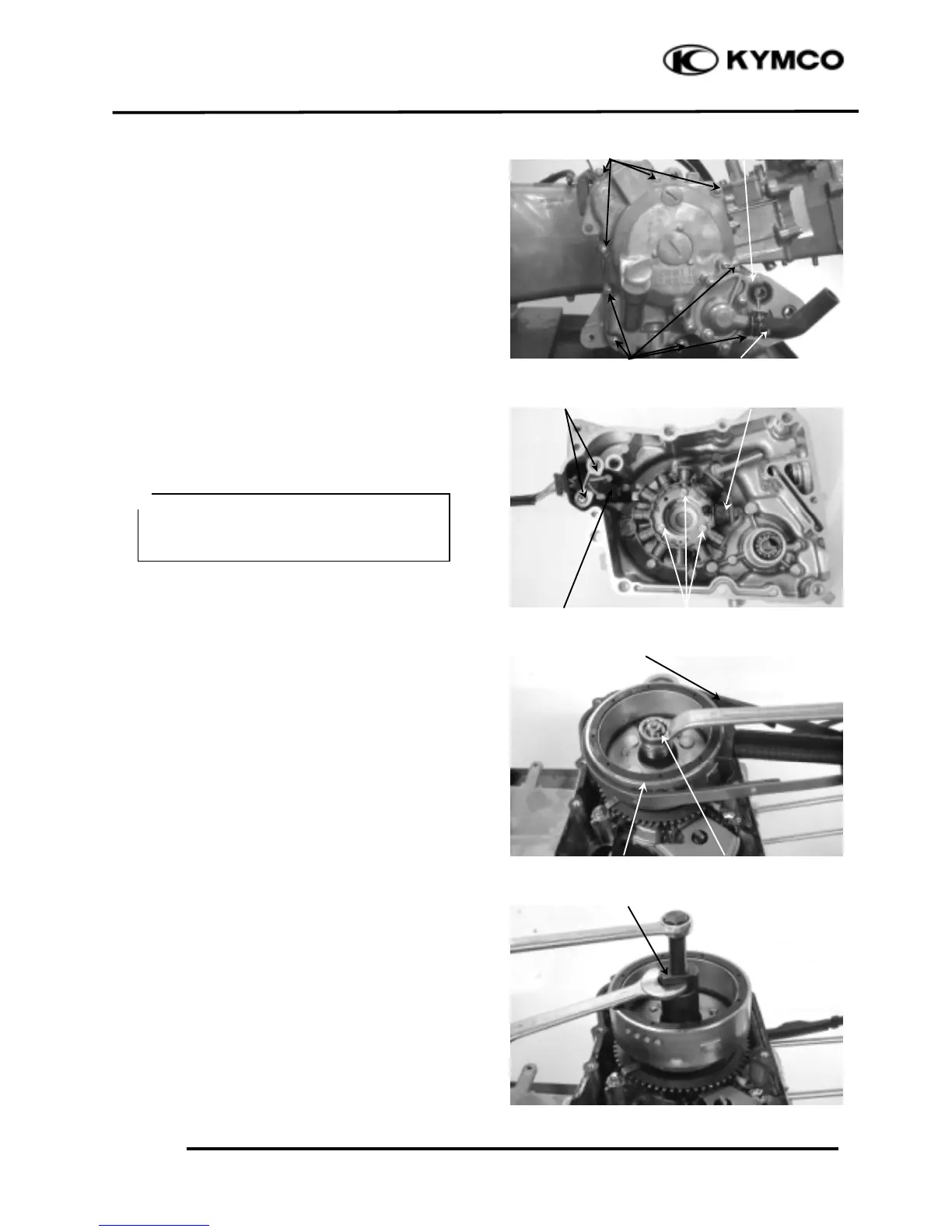

RIGHT CRANKCASE COVER
REMOVAL
Disconnect the water hoses from the right
crankcase cover.
Remove the nine bolts attaching the right
crankcase cover and the cover.
STATOR REMOVAL
Remove the two pulser coil attaching screws
and the pulser coil.
Remove the three A.C. generator stator bolts
and the stator.
FLYWHEEL REMOVAL
Hold the flywheel with a flywheel holder and
remove the flywheel nut.
Remove the flywheel with a flywheel puller.
Water Outlet Hose
Bolts
Flywheel
Nut
Flywheel Holder
When removing the pulser coil and
stator, be careful not to damage them to
avoid shorted or broken wire.
＊
Bolts
Water Inlet Hose
Screws
Bolts
Pulser Coil
A.C. Generator Stator
Flywheel Puller

KYMCO GRAND DINK 125 Specifications

General

Displacement	124.6 cc
Transmission	CVT
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Seat Height	780 mm
Starting System	Electric
Cooling System	Liquid-cooled
