8. DRIVE AND DRIVEN PULLEYS/
KICK STARTER
8-4
GRAND DINK 125/150

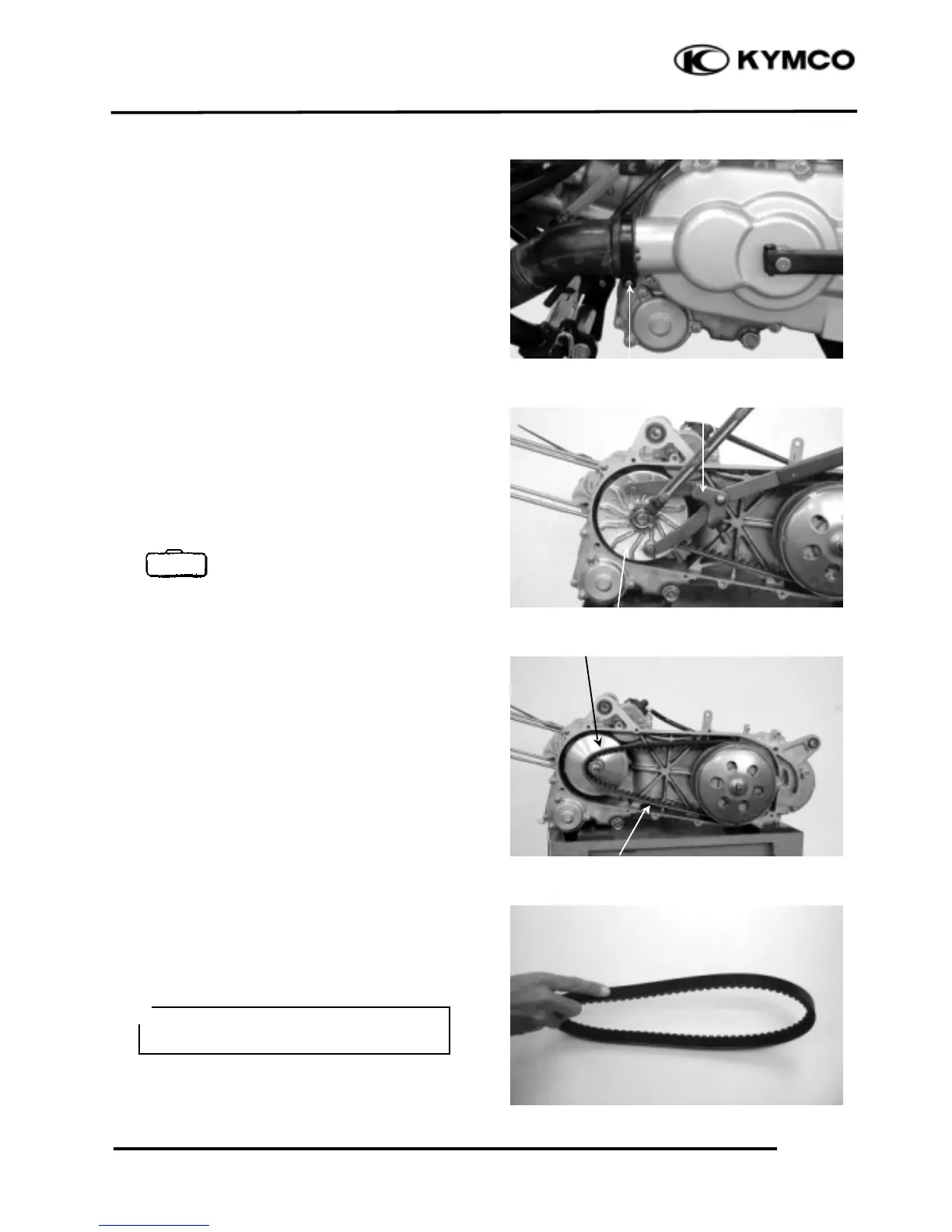

Install the drive belt air tube and tighten the
tube band screw.
DRIVE PULLEY
REMOVAL
Remove the left crankcase cover.
Hold the drive pulley using an universal
holder and remove the drive face nut and
washer.
Remove the drive pulley face.
Universal Holder
Remove the drive belt from the movable drive
face.
INSPECTION
Check the drive belt for cracks, separation or
abnormal or excessive wear.
Measure the drive belt width.
Service Limit: 17.5mm replace if below
Drive Pulley Face
Universal Holder
• Use specified genuine parts for
replace-ment.
＊
Movable Drive Face
Drive Belt
Tube Band Screw
Special
