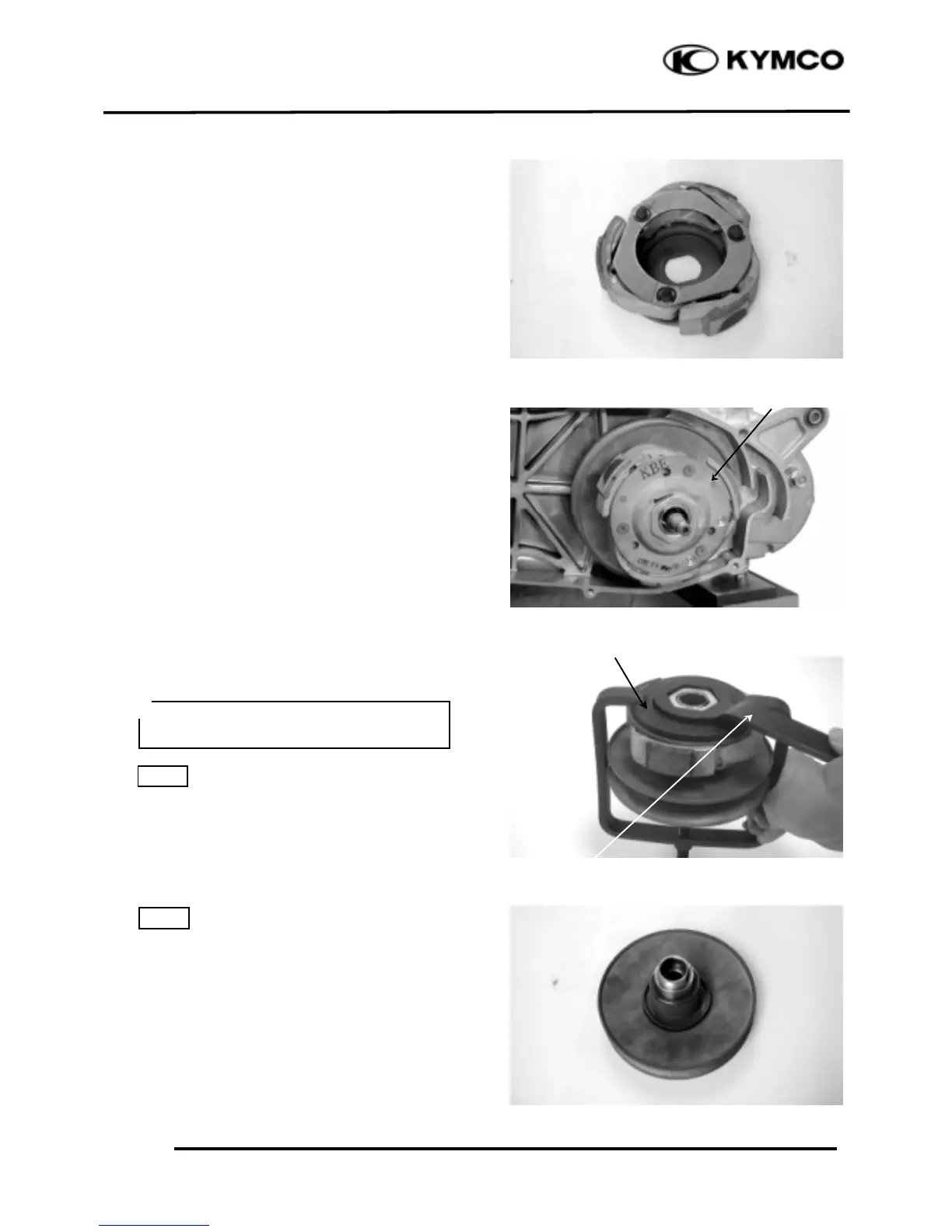

Page #95 background image
8. DRIVE AND DRIVEN PULLEYS/
KICK STARTER
8-9
GRAND DINK 125/150
Check the clutch shoes for wear or damage.
Measure the clutch lining thickness.
Service Limit: 2.0mm replace if below
CLUTCH/DRIVEN PULLEY
DISASSEMBLY
Hold the clutch/driven pulley assembly with
the clutch spring compressor.
Clutch Spring Compressor
Set the tool in a vise and remove the clutch
drive plate nut.
Lock Nut Wrench, 39mm
Loosen the clutch spring compressor and
disassemble the clutch/driven pulley
assembly.
Remove the seal collar.
Clutch/Driven Pulley
Special
Special
Clutch Spring Compressor
• Be sure to use a clutch spring
compressor to avoid spring damage.
＊
Lock Nut Wrench
