5. ENGINE REMOVAL/INSTALLATION
5-3
GRAND DINK 125/150

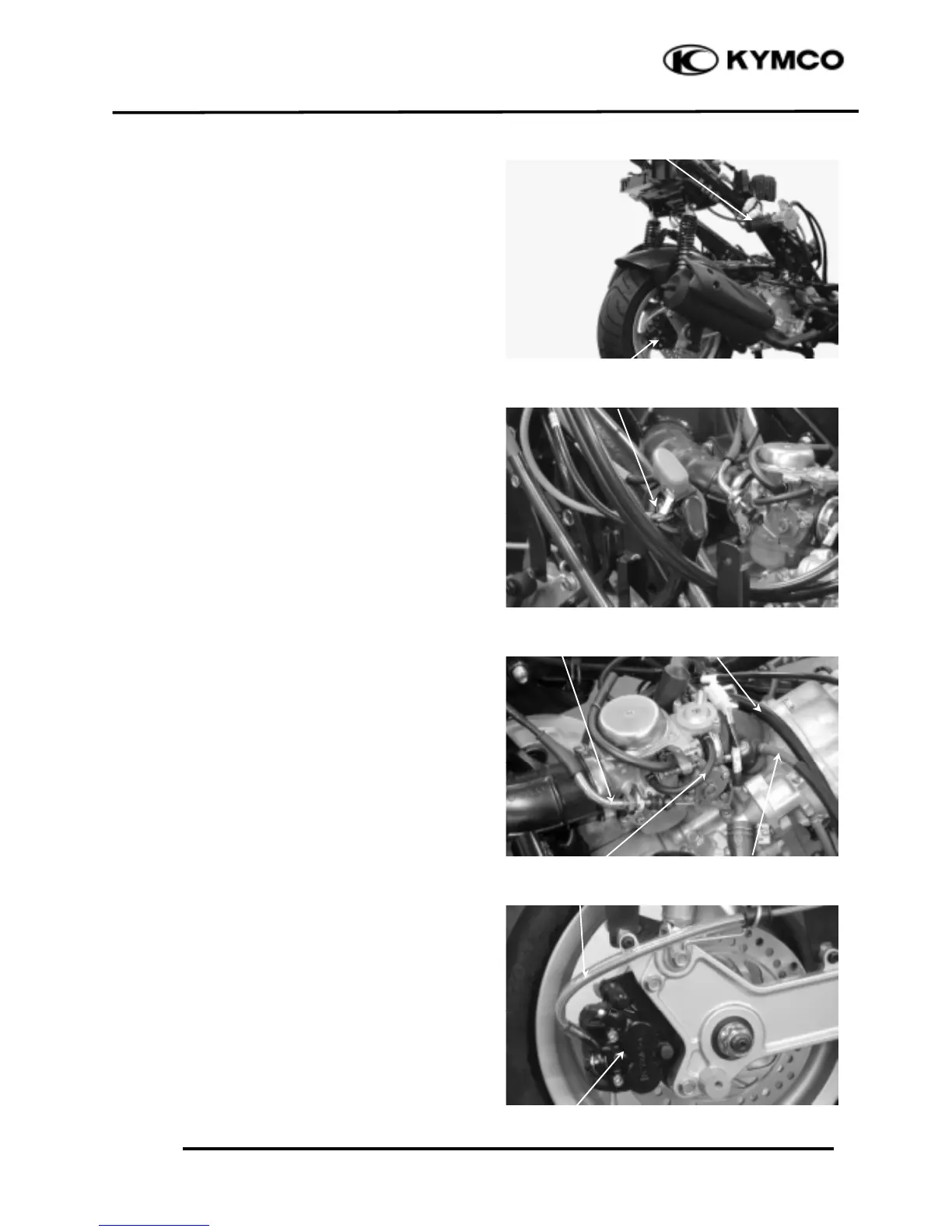

ENGINE REMOVAL
Disconnect the battery negative cable.
Remove the frame body cover. (
!
2-3)
Disconnect the engine negative cable.
Disconnect all of the A.C. generator, auto
bystarter, spark plug, thermosensor wire
couplers and connectors.
Disconnect the engine fuel tube.
Drain the coolant. (
!
3-9)
Disconnect the water hose.
Disconnect the starter motor wire that goes to
the starter relay.
Disconnect the fuel tube and vacuum tube
that go to the carburetor from the fuel pump.
Disconnect the vacuum tube from the air cut-
off valve (ACV).
Disconnect the throttle cable from the
carburetor.
Remove the brake fluid tube bolt of the rear
brake caliper.
Remove the rear brake caliper bolt and the
rear brake caliper.
Starter Relay
Wire Connectors
Rear Brake Caliper
ACV Vacuum Tube
Fuel Tube
Throttle Cable
Fuel Pump Vacuum Tube
Brake Fluid Tube
Rear Brake Caliper
