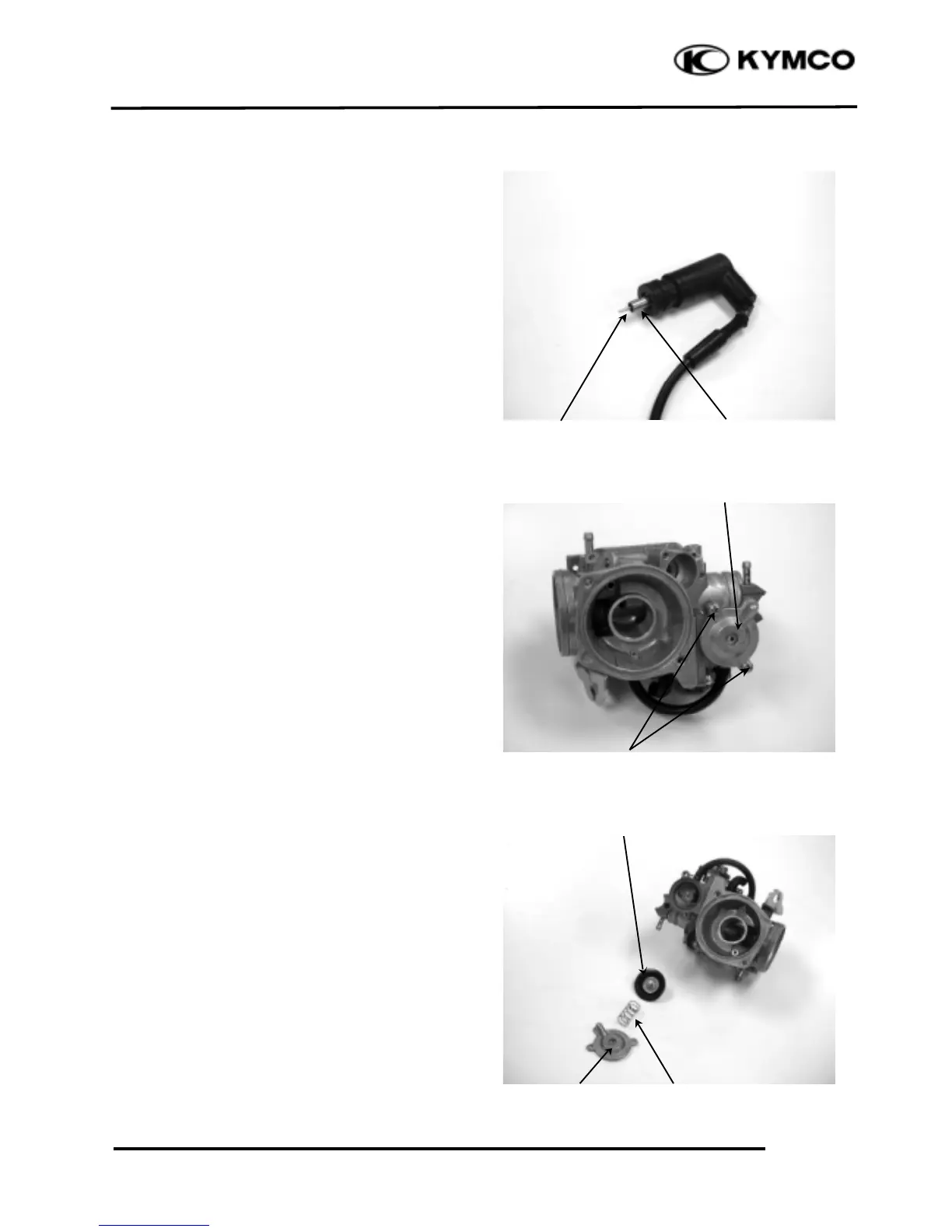

AUTO BYSTARTER INSPECTION
Check the auto bystarter valve and needle
for nicks, wear or damage.
If any faulty part is found, replace the auto
bystarter with a new one.
AIR CUT-OFF VALVE (A.C.V.)
A.C.V. REMOVAL
Remove the two screws and the air cut-off
valve cover.
Remove the spring, diaphragm and O-rings.
Inspect the diaphragm and spring for wear or
damage.
Bystarter Needle
Air Cut-off Valve Cover
Bystarter Valve
Spring
Screws
Cover
Diaphragm
