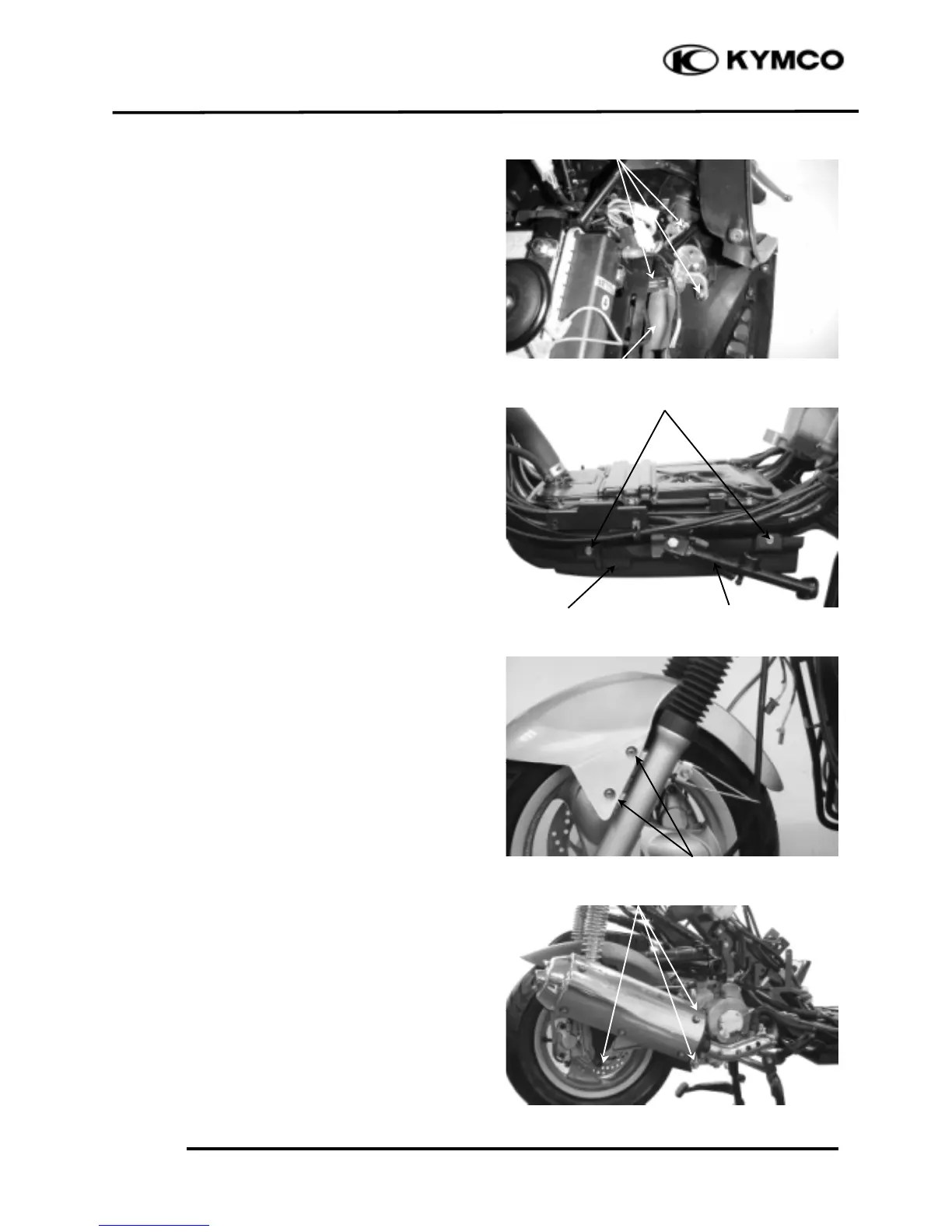

2. EXHAUST MUFFLER/FRAME COVERS
2-7
GRAND DINK 125/150
Remove the three screws attaching fuel tank
inlet tube join.
Remove the back cover.
BOTTOM COVER REMOVAL
Remove the side stand.
Remove the four bolts attaching the bottom
cover.
Remove the bottom cover.
FRONT FENDER REMOVAL
Remove the two bolts attaching the fender.
Remove the front fender cover.
The installation sequence is the reverse of
removal.
EXHAUST MUFFLER REMOVAL
Remove the two exhaust muffler joint lock
nuts.
Remove the three exhaust muffler lock bolts
to remove the exhaust muffler.
Remove the exhaust muffler joint packing
collar.
The installation sequence is the reverse of
removal.
Torque:
Exhaust muffler joint lock nut:11.8N-m
Exhaust muffler lock bolt: 34.3N-m
Screws
Fuel Tank Inlet Tube
Bolts
Bottom Cover
Side Stand
Bolts
Lock Bolts
