12. COOLING SYSTEM
12-8
GRAND DINK 125/150

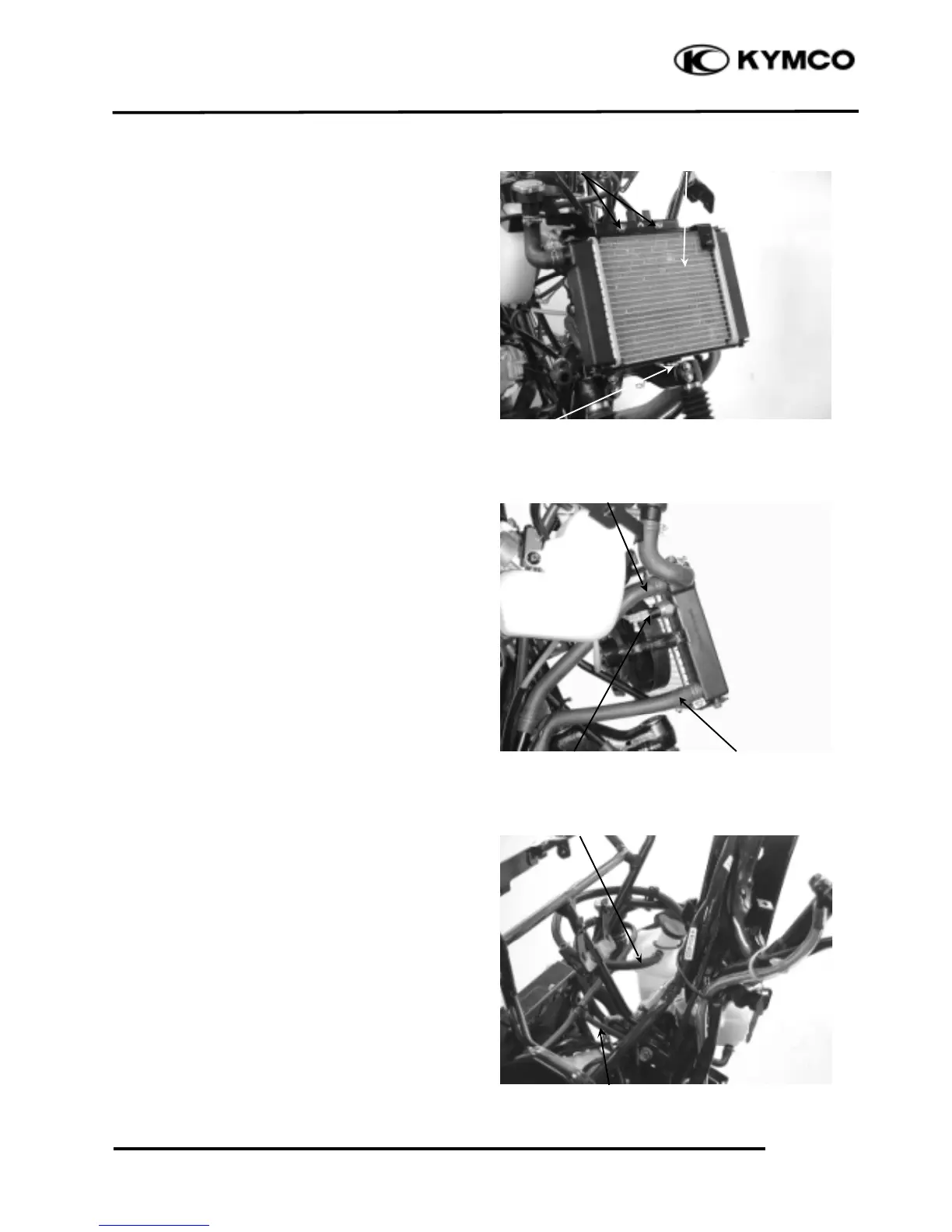

RADIATOR INSTALLATION
Install the radiator on the radiator bracket
with the two bolts and one nut.
Connect the upper and lower hoses and
secure them with hose bands.
Connect the thermostatic switch wire and
fan motor wire couplers.
Connect the overflow tube and secure with
the tube clamp.
Connect the vent tube to the radiator filler.
Fill the radiator with coolant. (
!
3-9)
After installation, check for coolant leaks.
.
Air Vent Tube
Radiator
Upper Hose
Overflow Tube
Lower Hose
Bolts
Thermostatic Switch
Wire
Nut

KYMCO GRAND DINK 125 Specifications

General

Displacement	124.6 cc
Transmission	CVT
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Seat Height	780 mm
Starting System	Electric
Cooling System	Liquid-cooled
