13. FUEL SYSTEM/CARBURETOR/
FUEL PUMP/ FUEL TANK
13-4
GRAND DINK 125/150
FUEL PUMP
CONSTRUCTION:
The fuel pump adopted for this model is a vacuum-type fuel pump which utilizes the positive and
negative pulsating pressures produced by the engine crankcase to control the oil pump diaphragms
and deliver fuel from the fuel tank to the carburetor through the suction valve and outlet valve.

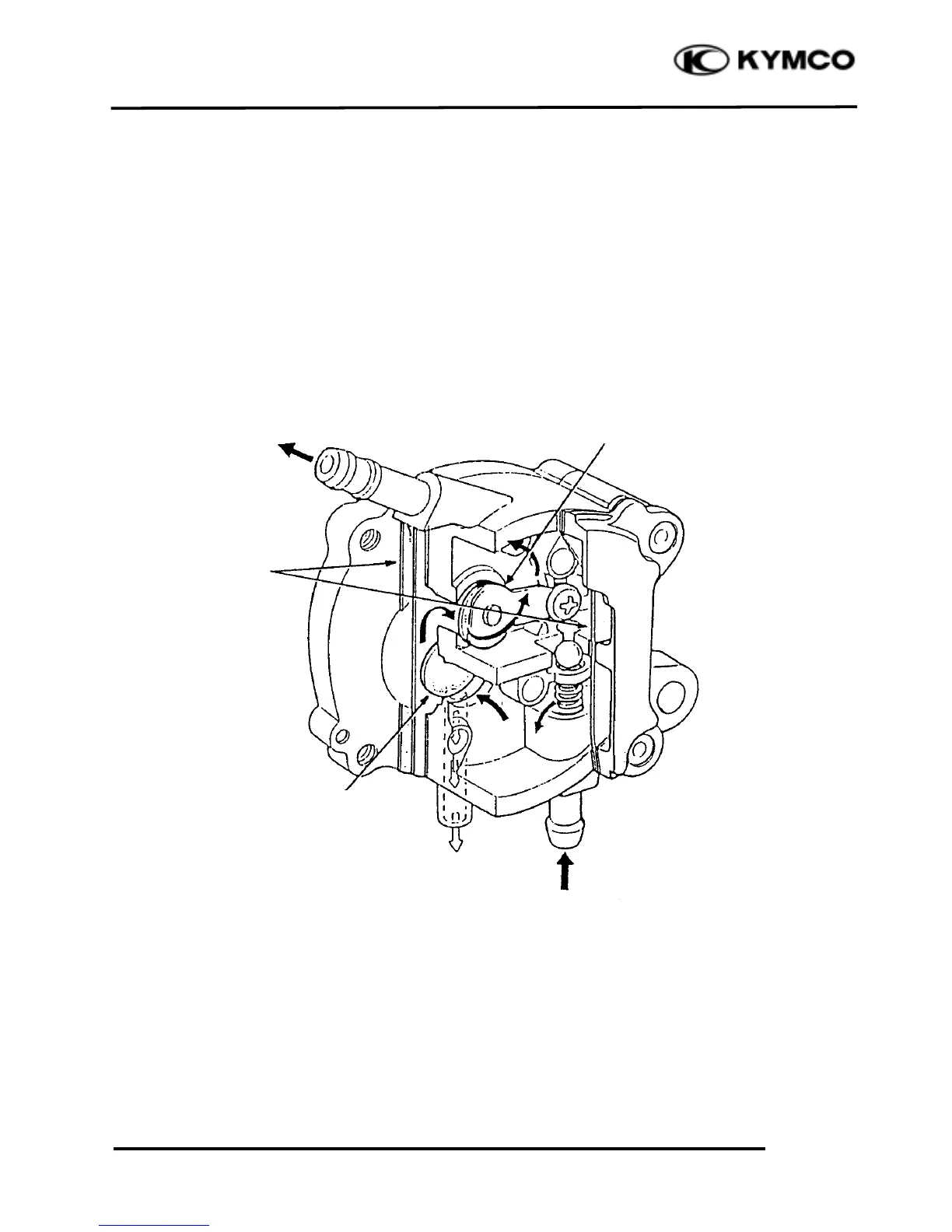

FUEL PUMP CONSTRUCTION
Diaphragms
Inlet
Outlet
Suction Valve
Outlet Valve
Pulsating Pressure
from Crankcase
