KYMCO GRAND DINK 125 User Manual

13. FUEL SYSTEM/CARBURETOR/
FUEL PUMP/ FUEL TANK
13-10
GRAND DINK 125/150

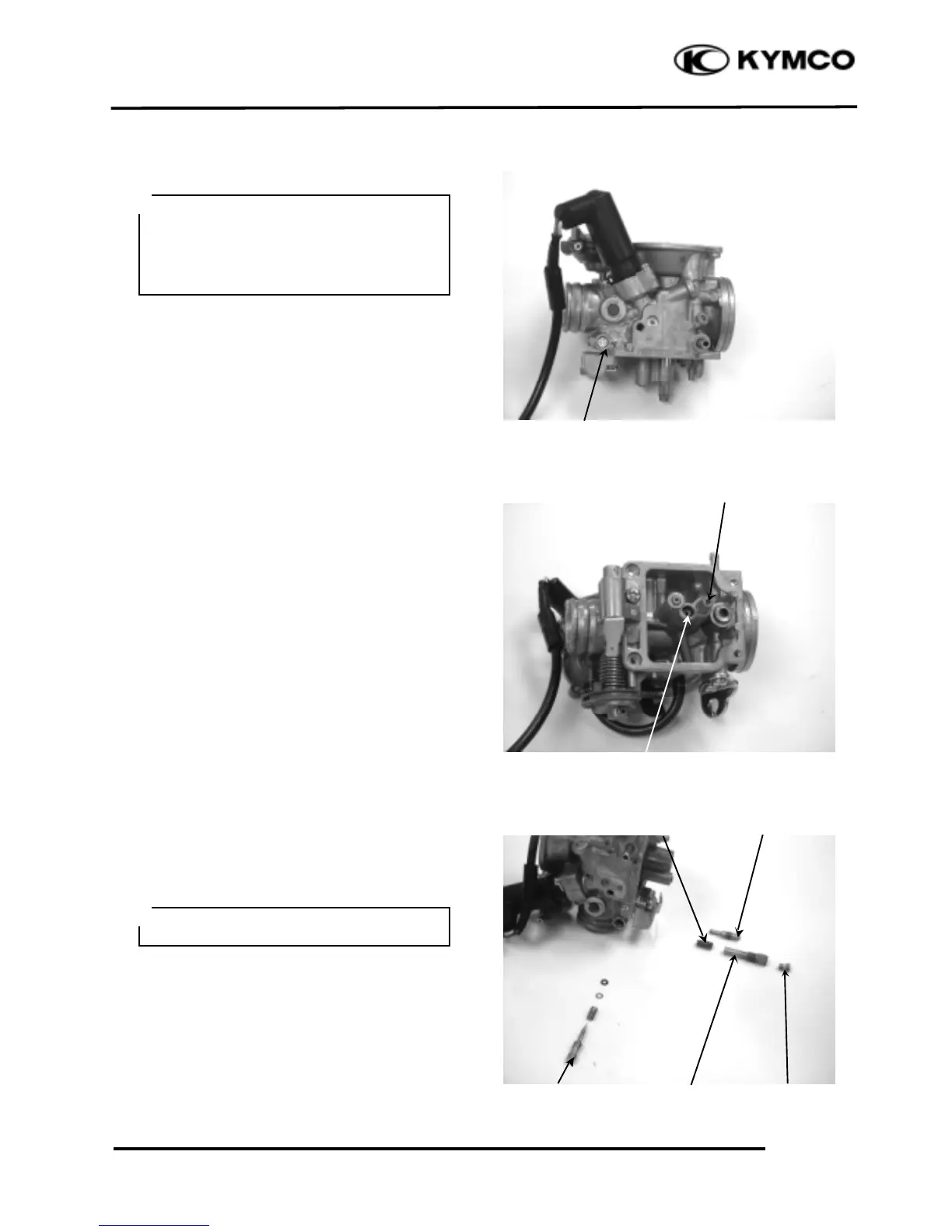

JETS/SCREWS REMOVAL
Remove the main jet, needle jet holder and
needle jet.
Remove the slow jet.
Clean the removed the main jet, needle jet
holder, needle jet and slow jet with detergent
oil.
Pilot Screw (P.S.)
Pilot Screw
Slow Jet
• Be sure to use clean detergent oil.
＊
Main Jet
Needle Jet Holder
Needle Jet
• Before removing the pilot screw, turn
the pilot screw clockwise until it seats
lightly and record the rotating turns.
Do not force the pilot screw against its
seat to avoid seat damage.
＊
Slow Jet
Main Jet

KYMCO GRAND DINK 125 Specifications

General

Displacement	124.6 cc
Transmission	CVT
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Seat Height	780 mm
Starting System	Electric
Cooling System	Liquid-cooled
