6. CYLINDER HEAD/VALVES
6-5
GRAND DINK 125/150

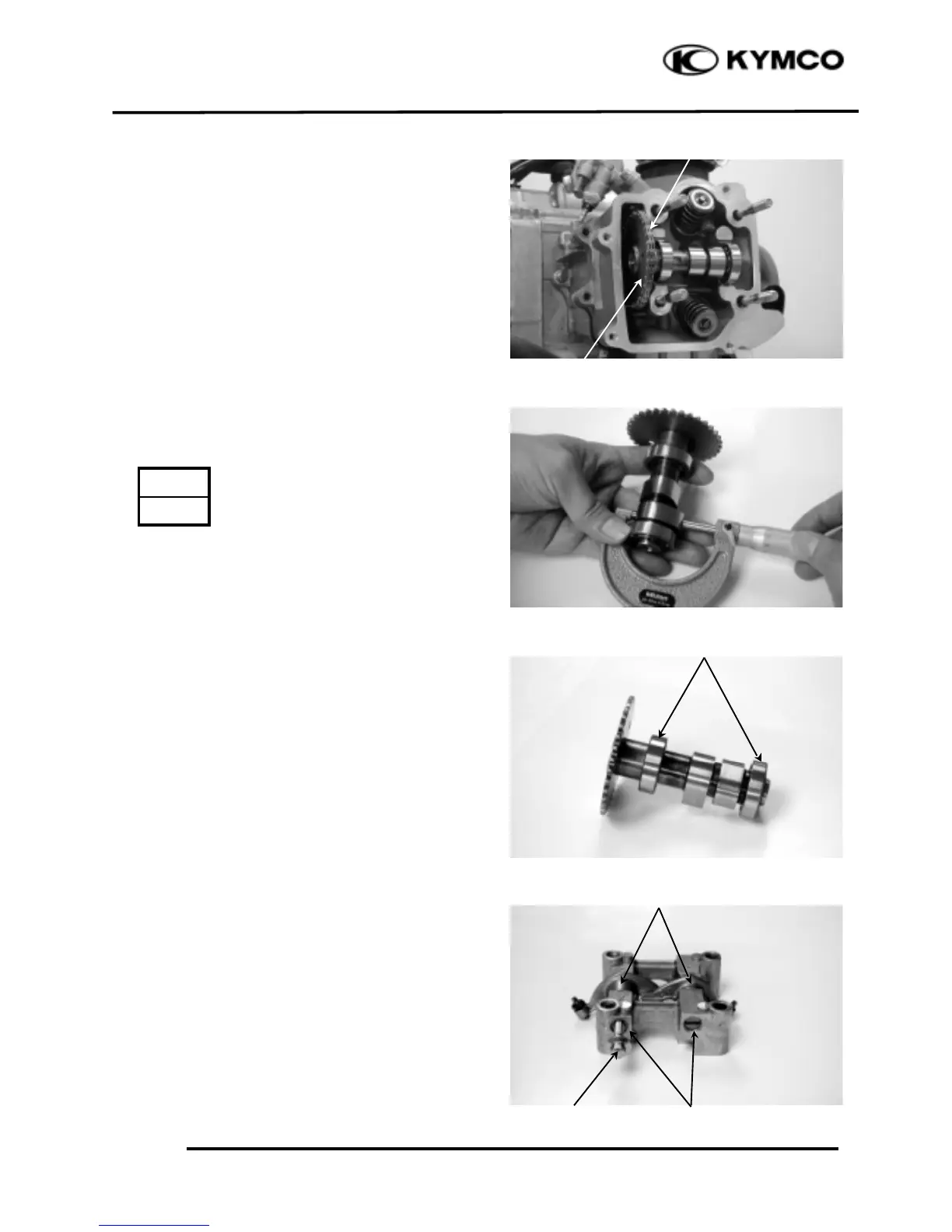

Remove the camshaft gear from the cam chain
to remove the camshaft.
CAMSHAFT INSPECTION
Check each cam lobe for wear or damage.
Measure the cam lobe height.
Service Limits:
SH30DA
IN: 30.75mm replace if below
SH25DA
EX:30.26mm replace if below
Check each camshaft bearing for play or
damage. Replace the camshaft assembly with
a new one if the bearings are noisy or have
excessive play.
CAMSHAFT HOLDER DISASSEMBLY
Take out the valve rocker arm shafts using a
6mm bolt.
Remove the valve rocker arms.
Cam Chain
Camshaft Gear
Camshaft Bearings
6mm Bolt
Valve Rocker Arms
Rocker Arm Shafts
