Appendix D: Mounting Bracket Kit
A versatile mounting bracket and screws are supplied to assist in easily installing and mounting a
single Spider or SpiderDuo device into a server rack in various orientations (e.g., horizontal or
vertical). The kit number is 083-015-R.

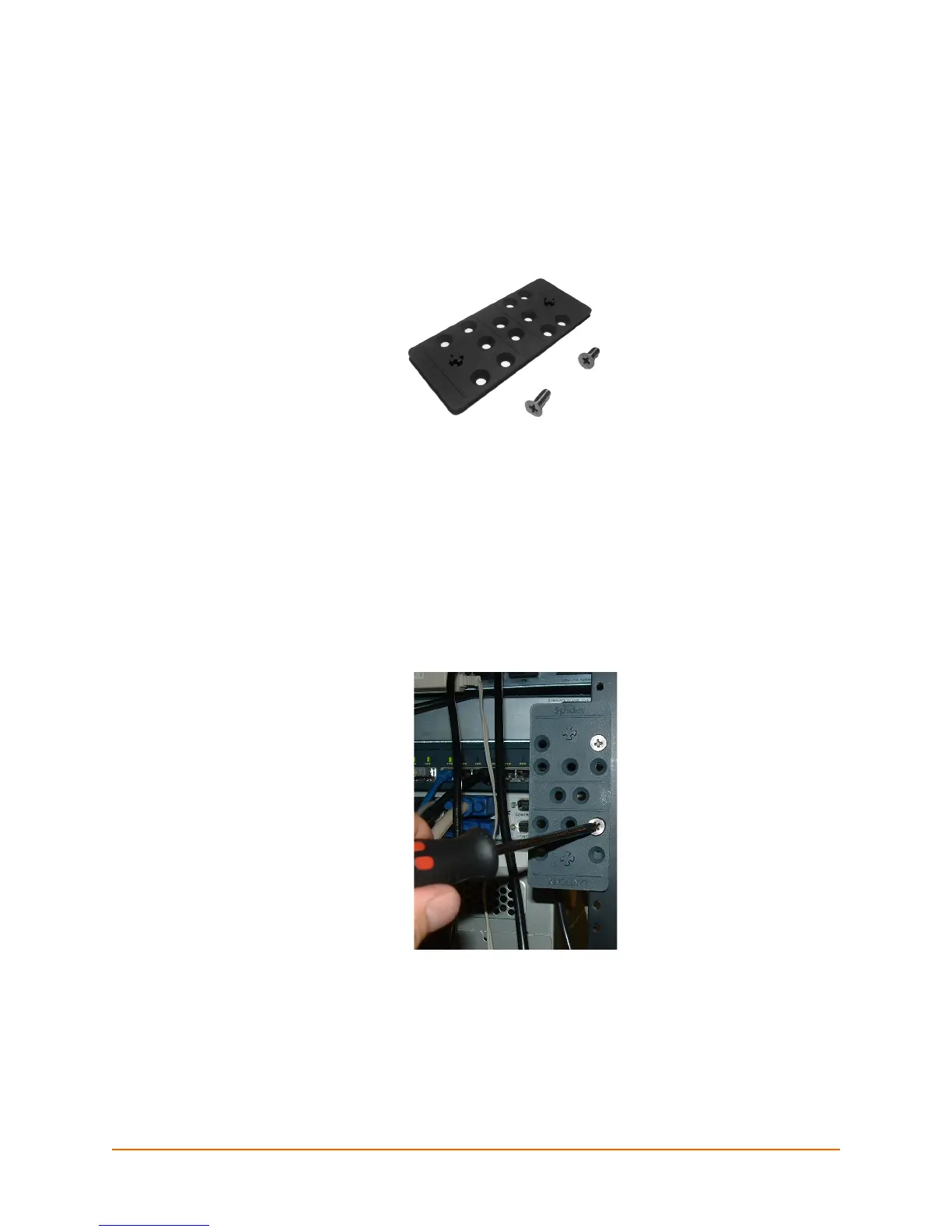

Figure D-1 Mounting Bracket and Screws
The kit includes:
One (1) 4.0” x 1-3/4” x 1/4” bracket
Two (2) 1/2” long, 10-32 stainless steel Phillips-head screws
Once the mounting bracket is installed in the rack, the Spider or SpiderDuo device can be
easily and securely attached to the elevated mounting posts and easily removed if necessary.
To install the mounting bracket and Spider device into a server rack, perform the following steps.
1. Mount the bracket with a Phillips screwdriver.
Figure D-2 Attaching the Mounting Bracket
2. Attach the Spider or SpiderDuo device to the bracket mounting posts.
