LeCroy 9300C Series User Manual

15–1
15
PANEL SETUPS

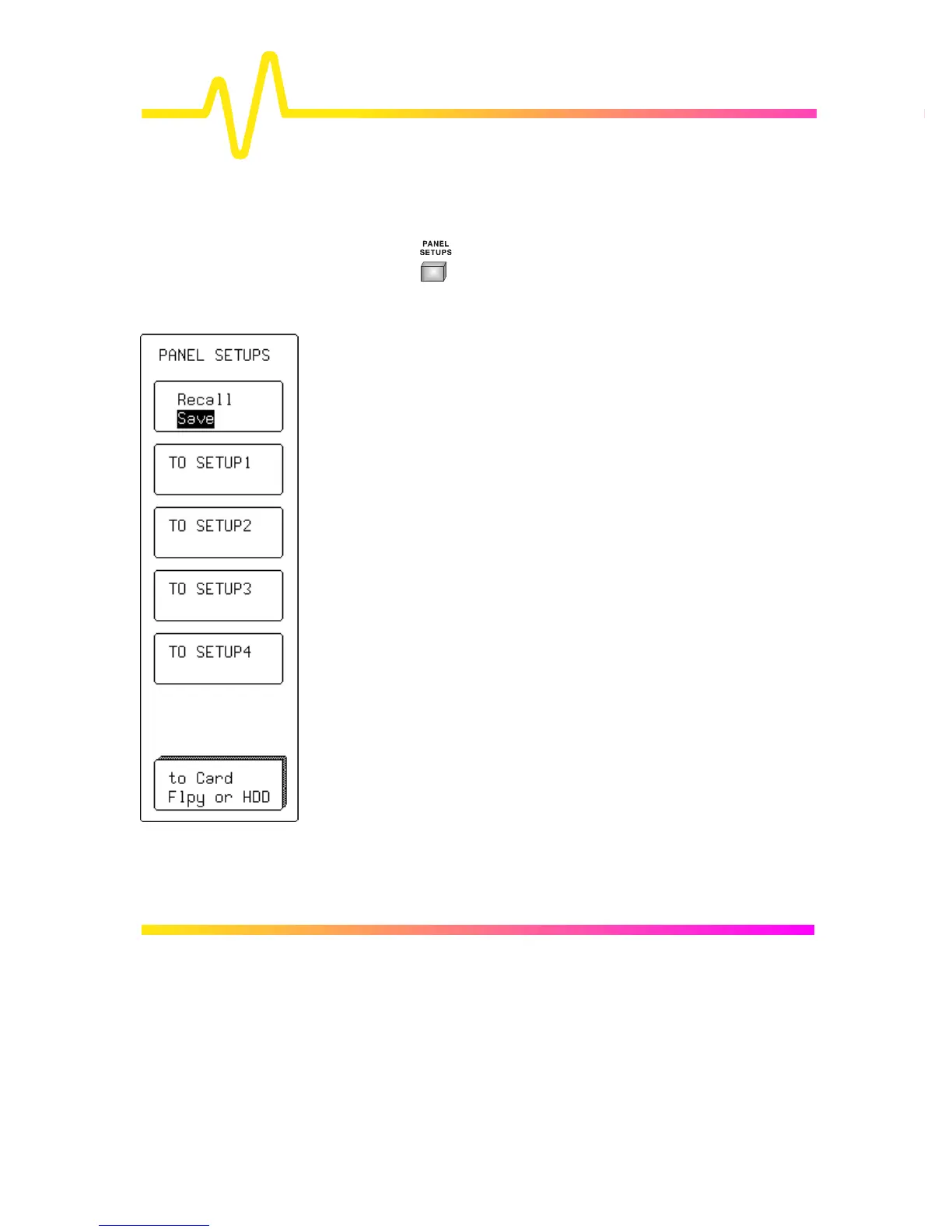

Saving and Recalling Panel Setups
PANEL SETUPS Press to access the menus used for saving or
recalling configurations — panel setups — to non-volatile
memory or floppy disk, or to memory card or portable hard
disk (HDD) depending on options installed.
Recall
Save
To choose to save a panel setup or recall one already saved.
When “Save” is selected, as shown here, the “TO SETUP”
menus appear. While when “Recall” is chosen, the “FROM
SETUP” menus, shown overleaf, appear
TO SETUP 1 ...2 ...3 or ...4
For saving any of four possible setups.
to Card, Flpy or HDD
For saving a setup to floppy, memory card, or hard disk,
depending on options.
