Rugby 870/880, Operation
18

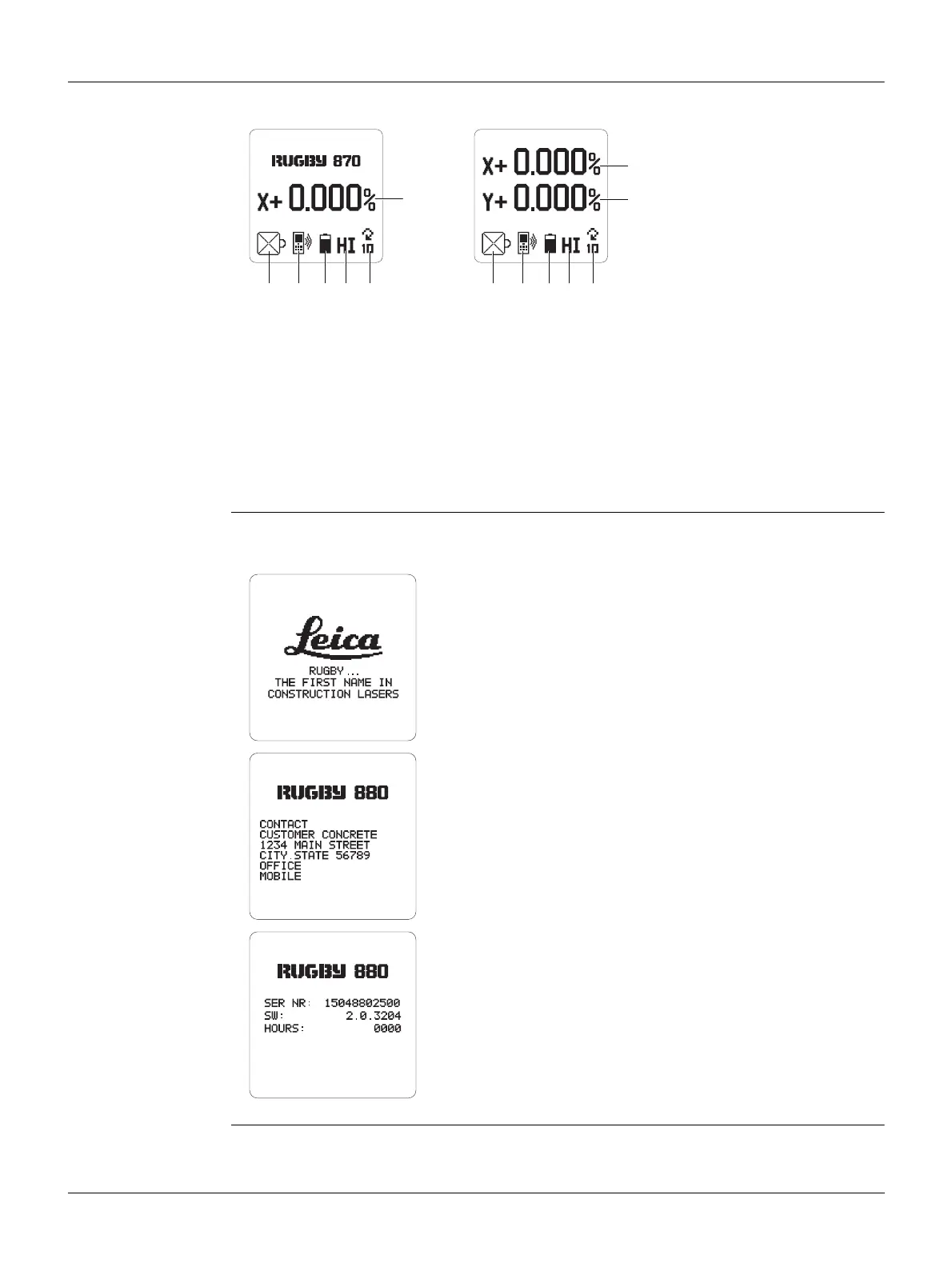

3.3 The LCD Display
Main Display The LCD display shows all the information that is required to operate the Rugby.
Start-up Screens When you turn on the Rugby, the LCD displays the Leica welcome screen, the customer
name screen and the information screen.
Rugby 870 Main Display
Rugby 880 Main Display
a) X-axis Grade Value
b) Y-axis Grade Value (Rugby 880 only)
c) Beam Masking
d) Radio Indication
e) Battery Level Indication
f) H.I. Indication
g) Head Speed
007585_001
a
cd
ef g
007586_001
cdef g
a
b
Leica welcome screen
Customer name screen:
This screen only appears if you enabled it in the menu.
Refer to 6.4" Customer Name Settings".
Information screen:
This screen displays the unit model number, serial number,
software revision level and the hours of use.
