Rugby 870/880, Receiver
27
5 Receiver
5.1 The Rod Eye Receivers
Rod Eye Receivers The Rugby 870/880 are sold with the Leica Rod Eye Receivers. The Rod Eye 180 Digital
Receiver enhances the performance of the Rugby 870/880 lasers with automatic slope
catching, monitoring and axis alignment. The following information is appropriate only
to the model you have purchased. Additional information on the Receivers can be
found in the individual User Manuals also on this CD.

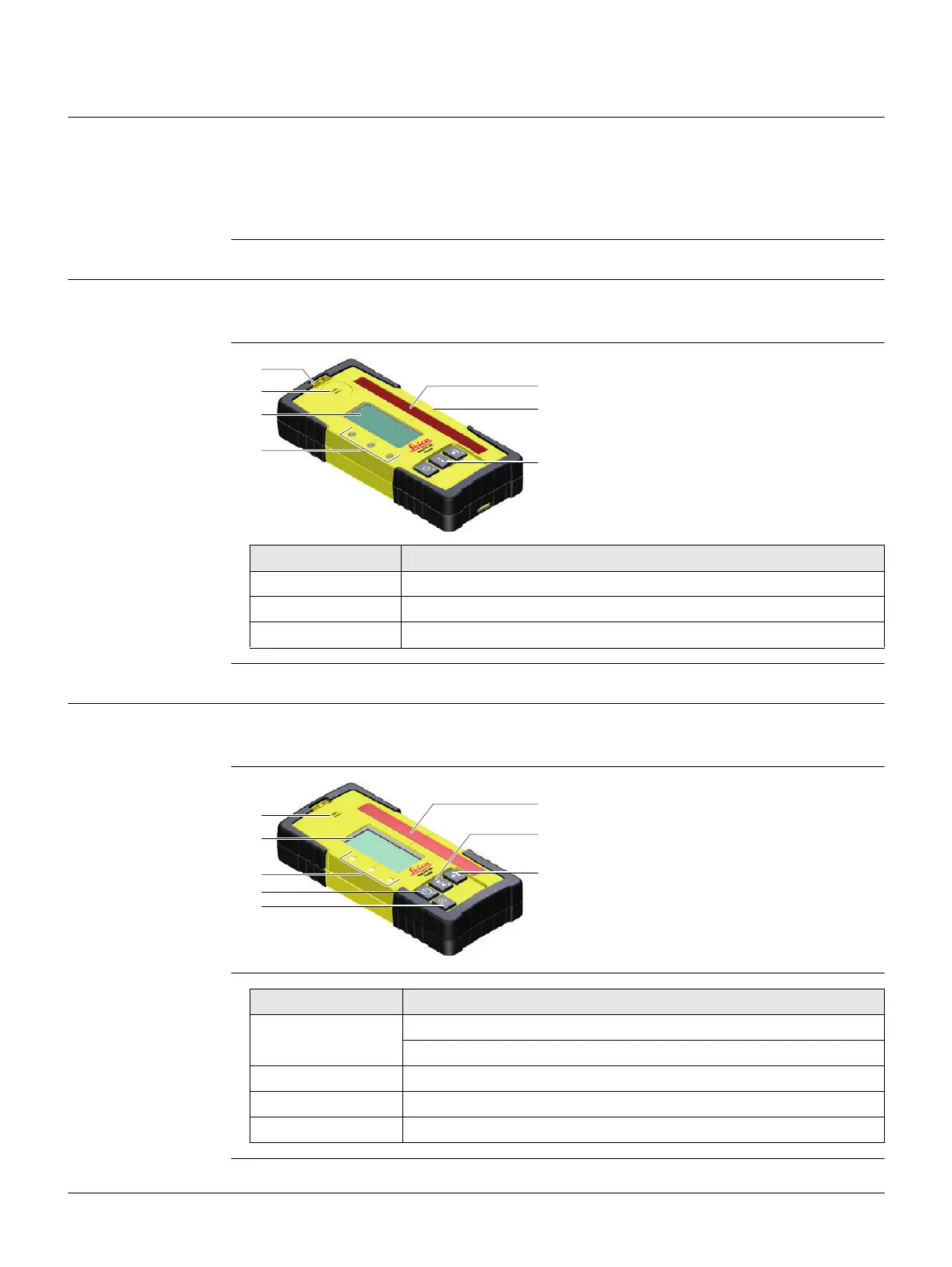

5.1.1 Rod Eye 140, Classic Receiver
The Rod Eye 140 Classic Receiver provides you with basic position information by using
an arrow display.
Instrument compo-
nents
5.1.2 Rod Eye 160, Digital Receiver
The Rod Eye 160 Digital Receiver provides you with basic position information by using
an arrow display plus digital readout.
Instrument compo-
nents
Description of the
Buttons
a) Level vial
b) Audio Speaker
c) LCD window
d) LEDs
e) Laser reception window
f) On-grade
g) Power button, Bandwidth button and
Audio button
Button Function
Power Press once to turn on the Receiver.
Bandwidth Press to change detection bandwidth.
Audio Press to change the audio output.
005147_001
a
b
c
d
e
f
g
a) Speaker
b) LCD Digital Display
c) LED Display
d) Power button
e) Laser man button
f) Reception window
g) Bandwidth button
h) Audio button
004637_001
a
b
c
d
e
f
g
h
Button Function
Power Press once to turn on the receiver.
Press 1.5 seconds to turn off the receiver.
Laser man Press to capture the digital reading.
Bandwidth Press to change detection bandwidths.
Audio Press to change the audio output.
