Leica Rugby 880 User Manual

Rugby 870/880, RC800 Remote Control
24
4 RC800 Remote Control
4.1 Description of the Remote Control
The RF Remote Control communicates with the Rugby via RF (radio frequency) and is
used to control the same functions as on the laser.

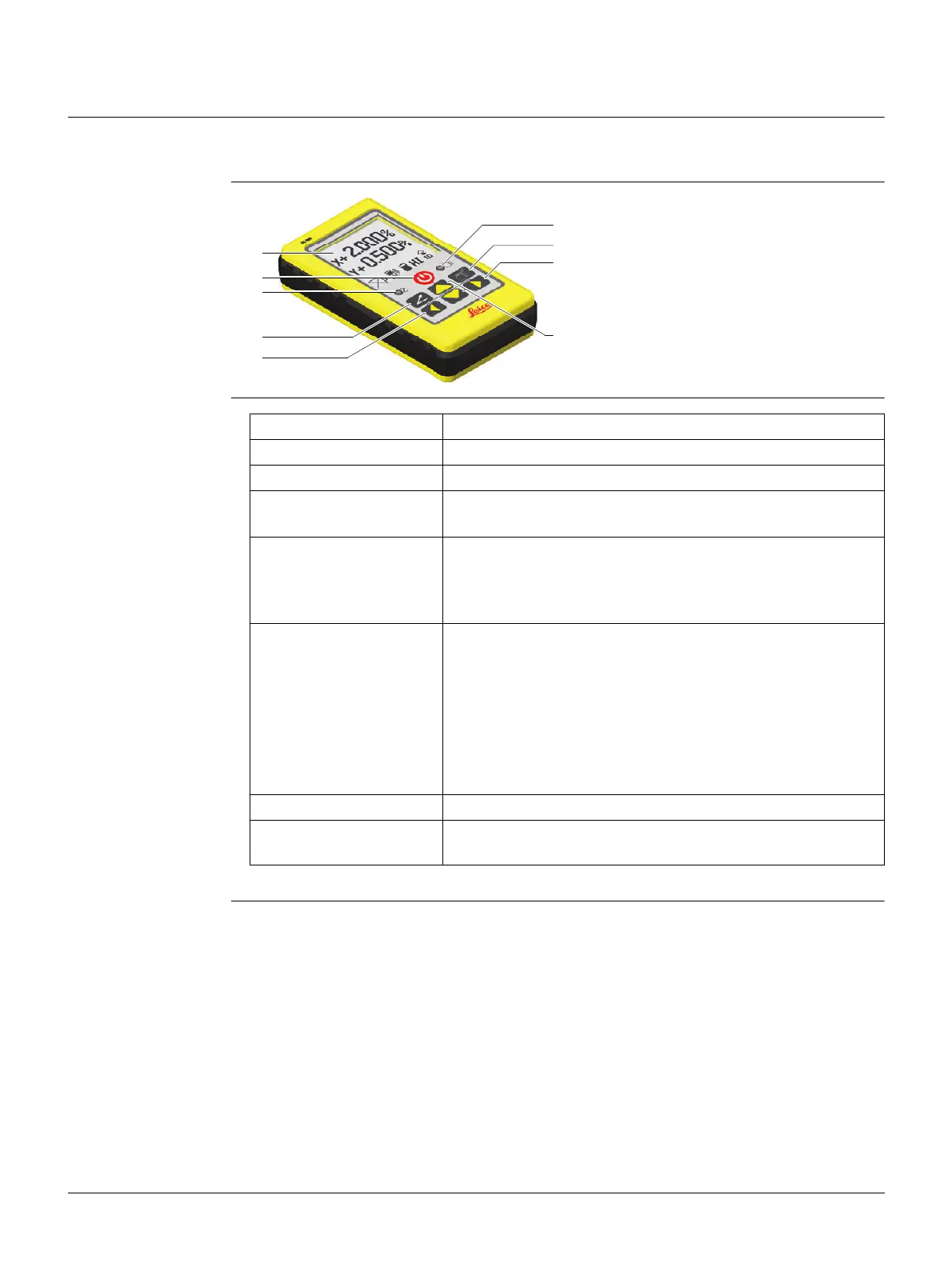

RC800 Remote
Control
Description of the
Control Panel
* In the Remote Control menu, you can select the sleep time.
a) LCD display
b) Power button
c) Remote battery LED
d) Grade button
e) Left and right arrow buttons
f) Rugby LED
g) Sleep mode button
h) Up and down arrow buttons
007830_002
a
b
c
d
e
f
g
h
e
LCD Display Displays all required user information.
Power Button Press to turn on or off the Remote Control.
Grade Button Press to start grade entry mode.
Up and Down Arrow
Buttons
Press to change the grade displayed.
Press both simultaneously to reset the grade value to zero.
Left and Right Arrow
Buttons
Press to display and move cursor for grade entry.
Press both simultaneously to enter the Rugby menu.
Press and hold simultaneously for 1.5 seconds to enter the
Remote Control menu.
Sleep Mode Button Press to put the Rugby in sleep mode.
• During Sleep Mode, all functions are disabled.
• The LCD display indicates that the Rugby is in Sleep
Mode.
• The Rugby sleeps for 2 hours
*
, then shuts down auto-
matically and must be turned on again at the laser.
• When in Sleep Mode, pressing the sleep button wakes
the Rugby and normal operation is resumed.
Rugby LED Indicates level status of the Rugby.
Remote Battery LED Indicates when the batteries for the Remote Control
should be replaced.
