Rugby 870/880, Rugby 870/880 Menu
31
6.2 Menu Set 1
Overview
Head Speed
Settings
H.I.Alert - On/Off

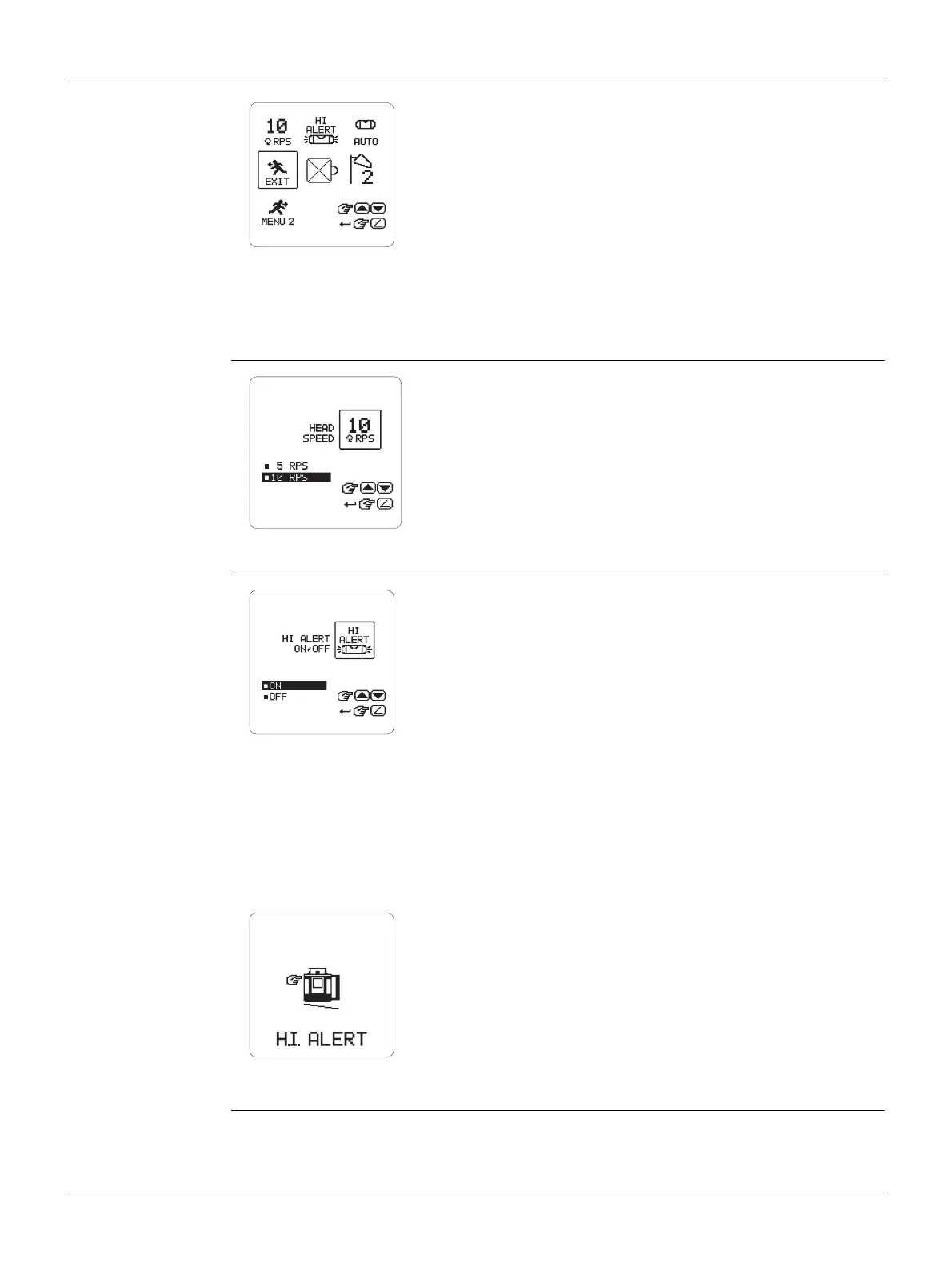

Menu Set 1
In the Menu Set 1, you can select the following parameters:
• Head Speed settings
• H.I.Alert - On/Off
• Automatic/Manual Modes
• Sensitivity settings
•Beam Masking
To exit the menu, highlight and select the EXIT icon.
OR: Wait for 8 seconds and the menu is exited auto-
matically.
To display the Menu Set 2, highlight and select the
MENU 2 icon.
007606_001
Head Speed Settings
You can select three head speed settings:
•5rps
•10rps
H.I.Alert Settings
You can choose to enable or disable the H.I.Alert function:
•On
•Off
When enabled, the H.I.Alert function turns on automatically
every time the Rugby is turned on. The function becomes
active 30 seconds after turning on the Rugby.
How does the H.I.Alert function work?
The Height of Instrument (H.I.) or Elevation Alert function prevents incorrect work
caused by movement or settling of the tripod that would cause the laser to level at a
lower height.
30 seconds after the Rugby has levelled and the head of the laser starts rotating, the
H.I.Alert function becomes active.
H.I.Alert screen
The H.I.Alert function monitors the movement of the laser;
if disturbed, the H.I.Alert screen flashes and the Rugby
beeps rapidly.
To stop the alert, turn the Rugby off and on again. Check the
height of the laser before beginning to work again.
007609_001
007610_001
