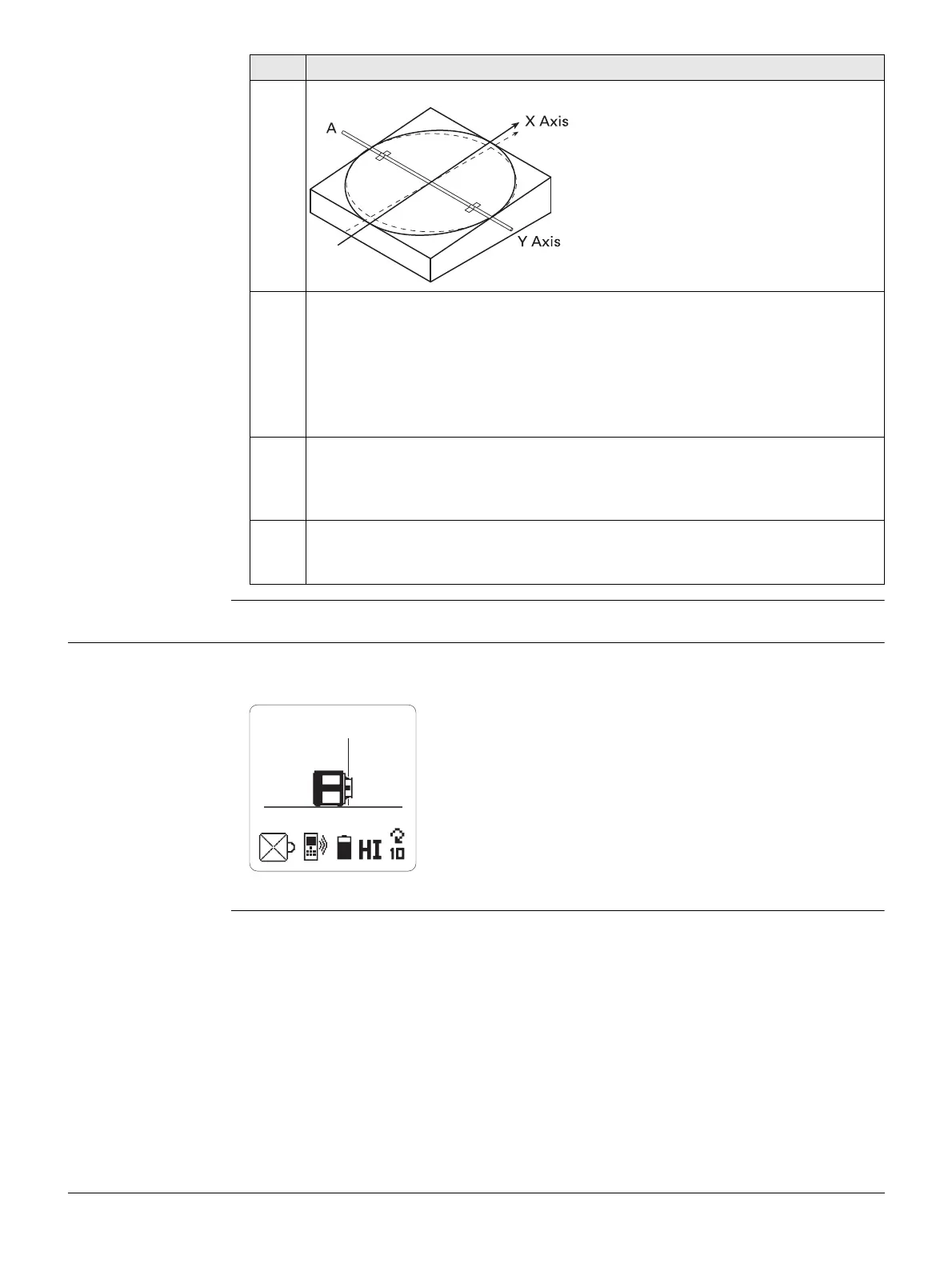

3.9 Laydown Operation (Rugby 880 Only)
Vertical plane of
laser light
You can use the Rugby 880 in laying down position to create a vertical plane for layout
and alignment jobs.
Rugby 880 Laying Down Screen
4. With +5.000% in the X-axis, take a second reading at Point A.
5. Alignment:
• If the second reading is equal to the first reading, the X-axis is aligned
correctly.
• If the second reading is greater than the first reading, rotate the Rugby
clockwise (to the right) until the two readings are equal.
• If the second reading is less than the first reading, rotate the Rugby
counter-clockwise (to the left) until the two readings are equal.
Sighting Scope - An optional sighting scope is available for the Rugby 870/880
which improves the axis alignment for second day setups. It is recommended
that you first perform the precise alignment procedure, and then adjust the
scope to these axes.
Automatic Axis Alignment - Automatic axis alignment is possible with the
Rugby 870/880 using the Rod Eye 180 receiver. (Refer to "8.6 Automatic Axis
Alignment")
