4.LocatethePCIcardyouwanttoremove.See“Systemboardcomponents”onpage42.

5.Ifnecessary,removeanypartsordisconnectanycablesthatmightimpedeyouraccesstothePCIcard.

DependingonthetypeofthePCIcard,youmightalsoneedtodisconnectanycablesfromthePCI

card,thesystemboard,andorthehot-swapharddiskdrivebackplane.

6.RemovethescrewthatsecuresthePCIcard.Then,graspthePCIcardbyitsedgesandcarefully

pullitoutofthePCIcardslot.

Note:ThePCIcardtstightlyintothePCIcardslot.Ifnecessary,alternatemovingeachsideofthePCI

cardasmallandequalamountuntilitiscompletelyremovedfromtheslot.

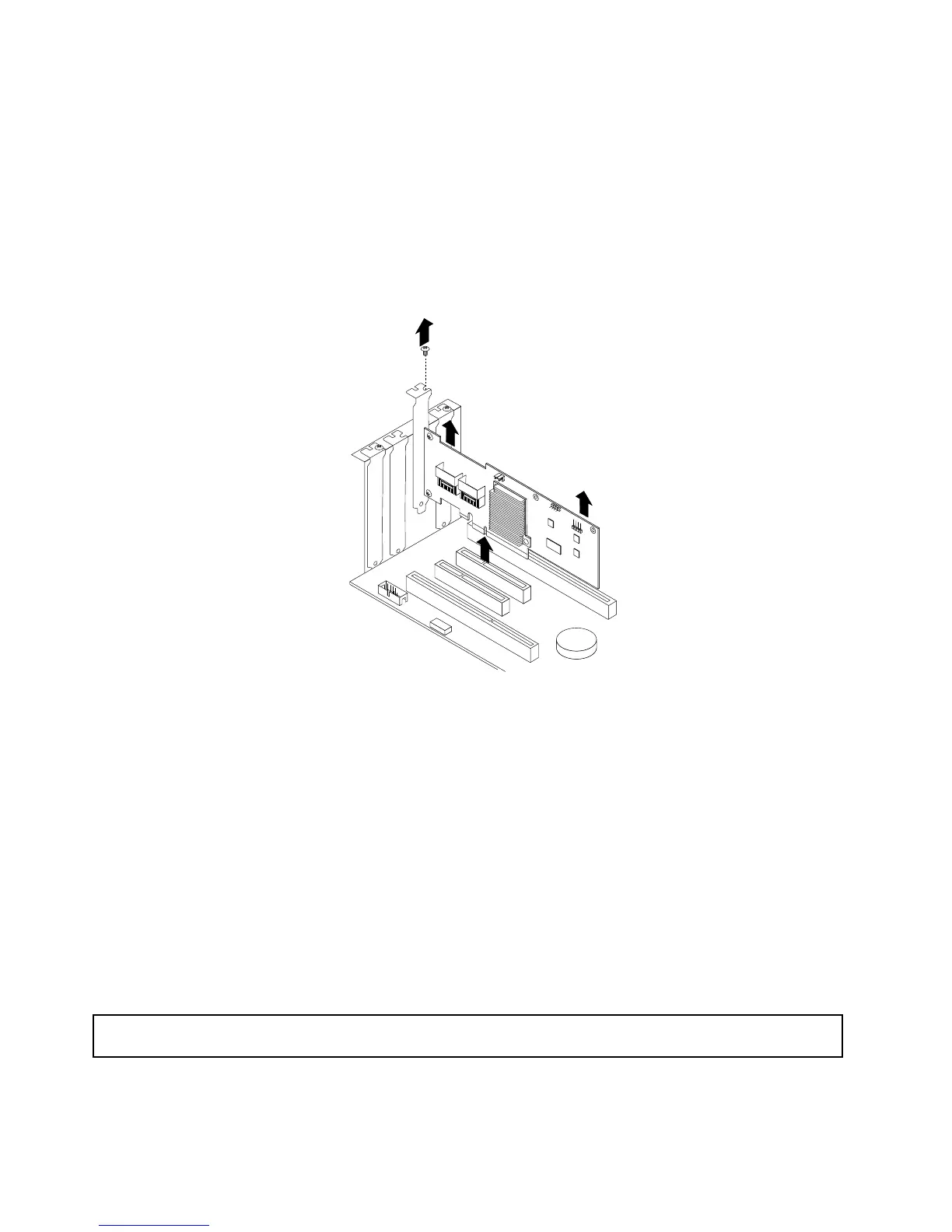

Figure42.RemovingaPCIcard

7.InstallanewPCIcardtoreplacetheoldoneorinstallaPCIcardslotbrackettocovertheplace.

See“InstallingaPCIcard”onpage93

8.IfyouareinstructedtoreturntheoldPCIcard,followallpackaginginstructionsanduseanypackaging

materialsthataresuppliedtoyouforshipping.

Whattodonext:

•Toworkwithanotherpieceofhardware,gototheappropriatesection.

•Tocompletetheremovalprocedure,goto“Completingthepartsreplacement”onpage162.

InstallingorremovingtheEthernetcard

ThistopicprovidesinstructionsonhowtoinstallorremovetheEthernetcard.

InstallingtheEthernetcard

Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstandingthe“Safetyinformation”

onpageiiiand“Guidelines”onpage83.

ThistopicprovidesinstructionsonhowtoinstalltheEthernetcardandhowtoinstalltheEthernetcard

driveronWindowsoperatingsystems.

96ThinkServerUserGuide
