4.LocatetheiButtonsocketonthesystemboard.Opentheretainingclip1ontheiButtonsocketto

releasethesystemboardRAID5keyandthencompletelyremovethekeyfromtheiButtonsocket.

Note:Ifnecessary,removeanypartsordisconnectanycablesthatmightimpedeyouroperation.

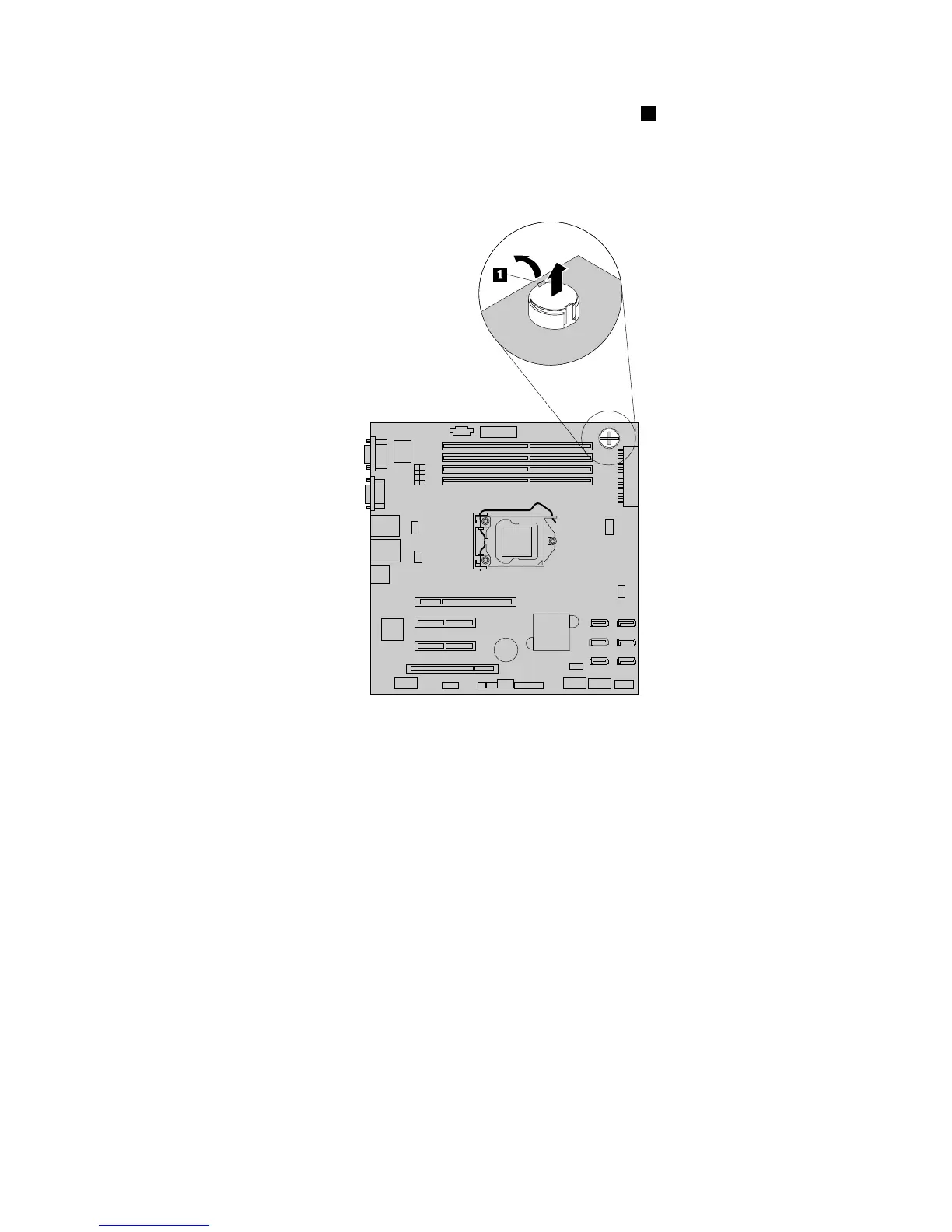

Figure46.RemovingthesystemboardRAID5key

5.IfyouareinstructedtoreturntheoldsystemboardRAID5key,followallpackaginginstructionsand

useanypackagingmaterialsthataresuppliedtoyouforshipping.

Whattodonext:

•Toworkwithanotherpieceofhardware,gototheappropriatesection.

•Tocompletetheremovalprocedure,goto“Completingthepartsreplacement”onpage162.Asthe

onboardSATAsoftwareRAID5isnotavailablewithoutthesystemboardRAID5key,youmightneedto

recongureRAIDforyourserver.See“ConguringRAID”onpage71

InstallingorremovingtheThinkServeriKVMRemoteManagement

Module

ThistopicprovidesinstructionsonhowtoinstallorremovetheThinkServeriKVMRemoteManagement

Module(hereinafterreferredtoastheiKVMkey).

TheiKVMkeyoffersconvenient,remoteKVMaccessandcontrolthroughtheLANorInternet.Youcanuse

theiKVMkeytogainlocation-independentremoteaccesstorespondtocriticalincidentsandtoundertake

necessarymaintenance.Therefore,workingasanintegratedsolutioninyourserver,theiKVMkeyprovides

Chapter6.Installing,removing,orreplacinghardware105
