INSTALLATION AND MAINTENANCE
VARMECA 30
Variable speed motor or geared motor
OPERATING EXTENSIONS
LEROY-SOMER
3776 en - 07.2007 / h
en

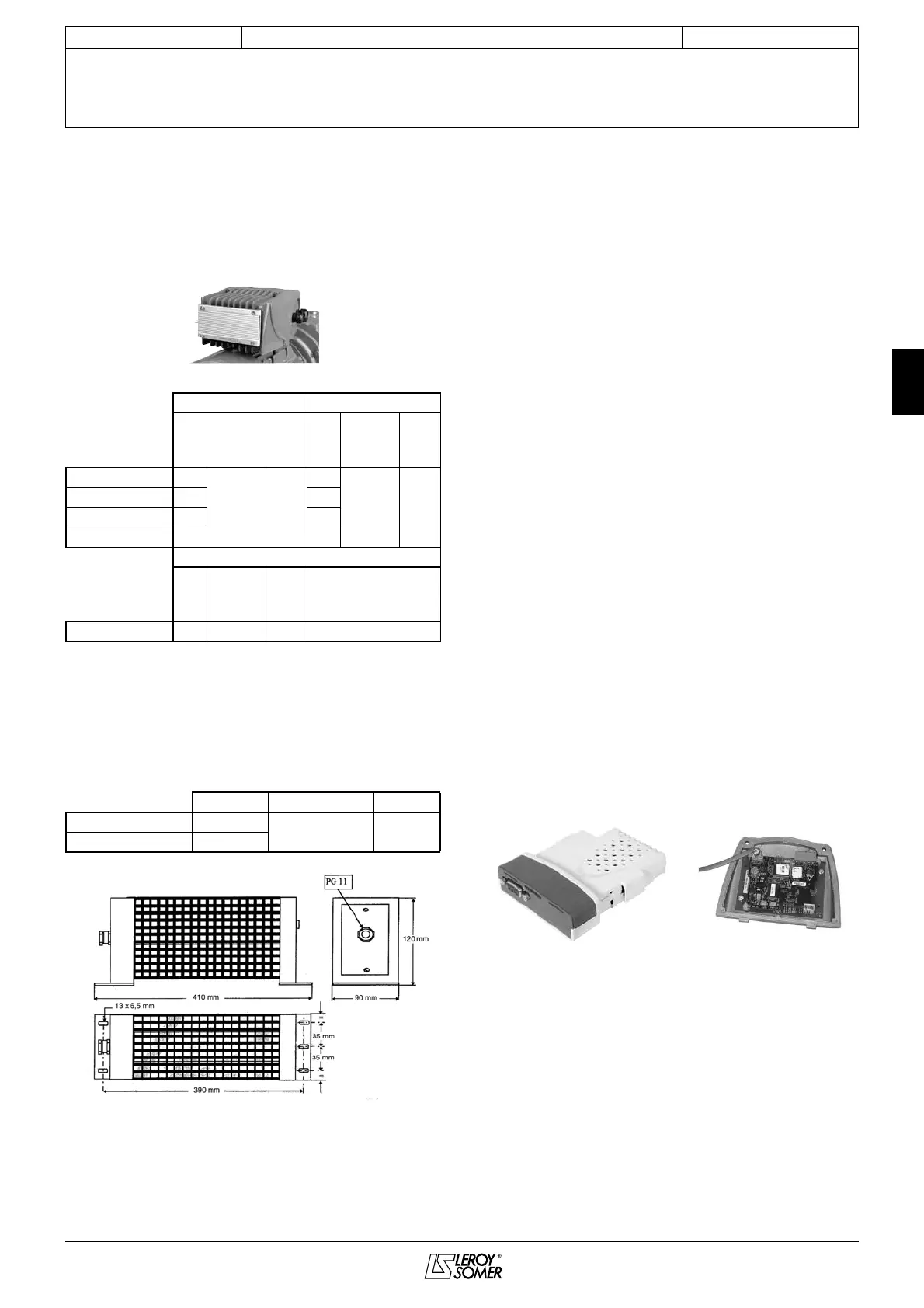

7.5 - IP 65 braking resistor option
(RF100 – RF200 – RF600)
For operation in 4 quadrants and energy dissipation, resistors
can be fixed directly onto the VARMECA casing. In this case,
the jumper between terminals FI and R- should be
removed (VMA 31 and 32).
External resistors with greater thermal power can be used,
provided that the minimum ohmic value of 180 Ω (RF 100 –
RF 200) or 50 Ω (RF 600) is respected.
7.6 - IP 20 external braking resistor
option (RF - BRR - 800 - 200)
7.7 - Power supply and
electromechanical brake control option
(SO VMA 31/32)
The motor must be fitted with an FCR brake adapted for the
VARMECA 31/32.
The brake has a built-in power supply. The brake is released
as soon as the run command is enabled. The brake is
engaged after a stop command, at the end of the deceleration
ramp or on disconnection of the power supply.
7.8 - Additional I/O interface and
sequential brake control option
(ESFR VMA 31/32)
The brake has a built-in power supply. The brake is controlled
according to a sequence which can be adjusted using the
VARMECA parameters.
7.9 - Additional I/O interface and
sequential brake control option
(ESFR VMA 33/34)
The brake has a built-in power supply. The brake is controlled
according to a sequence which can be adjusted using the
VARMECA parameters. See VARMECA 30 parameter-
setting manual.
7.10 - Fieldbus options (not available
for VMA32 M)
The interface card is mounted inside the VARMECA casing.
Protocols supported:
PROFIBUS DP - INTERBUS S
DEVICENET - CAN OPEN
7.11 - Encoder feedback option
(COD VMA 33/34)
VMA33/34 only: Please contact Leroy-Somer.
RF 100 RF 200
P
peak
kW
P
thermal
kW
Value
Ω
P
peak
kW
P
thermal
kW
Value
Ω
VMA 31T/TL 3.2
0.1 200
3.2
0.2
200
(2x100
in
series)
VMA 31M 0.8 0.8
VMA 32T/TL 3.2 3.2
VMA 32M 0.8 0.8
RF 600
P
peak
kW
P
thermal
kW
Value
Ω
VMA 33/34T/TL
12.8 0.6 50
200 (2x100 in parallel)
P peak kW P thermal kW Ω value
VMA 31/32T-TL 3.2
0.8 200
VMA 31/32M 0.8
