66
INSTALLATION AND MAINTENANCE
VARMECA 30
Variable speed motor or geared motor
OPERATING EXTENSIONS
LEROY-SOMER
3776 en - 07.2007 / h
7.12 - Parameter-setting
console option (PX LCD)
The console option provides access to the drive internal
settings (terminal block configuration, ramp, speed and PI
settings, etc).
See VARMECA 30 parameter-setting manual.
Description of the option:
1 PX LCD console
1 cable L = 3 m

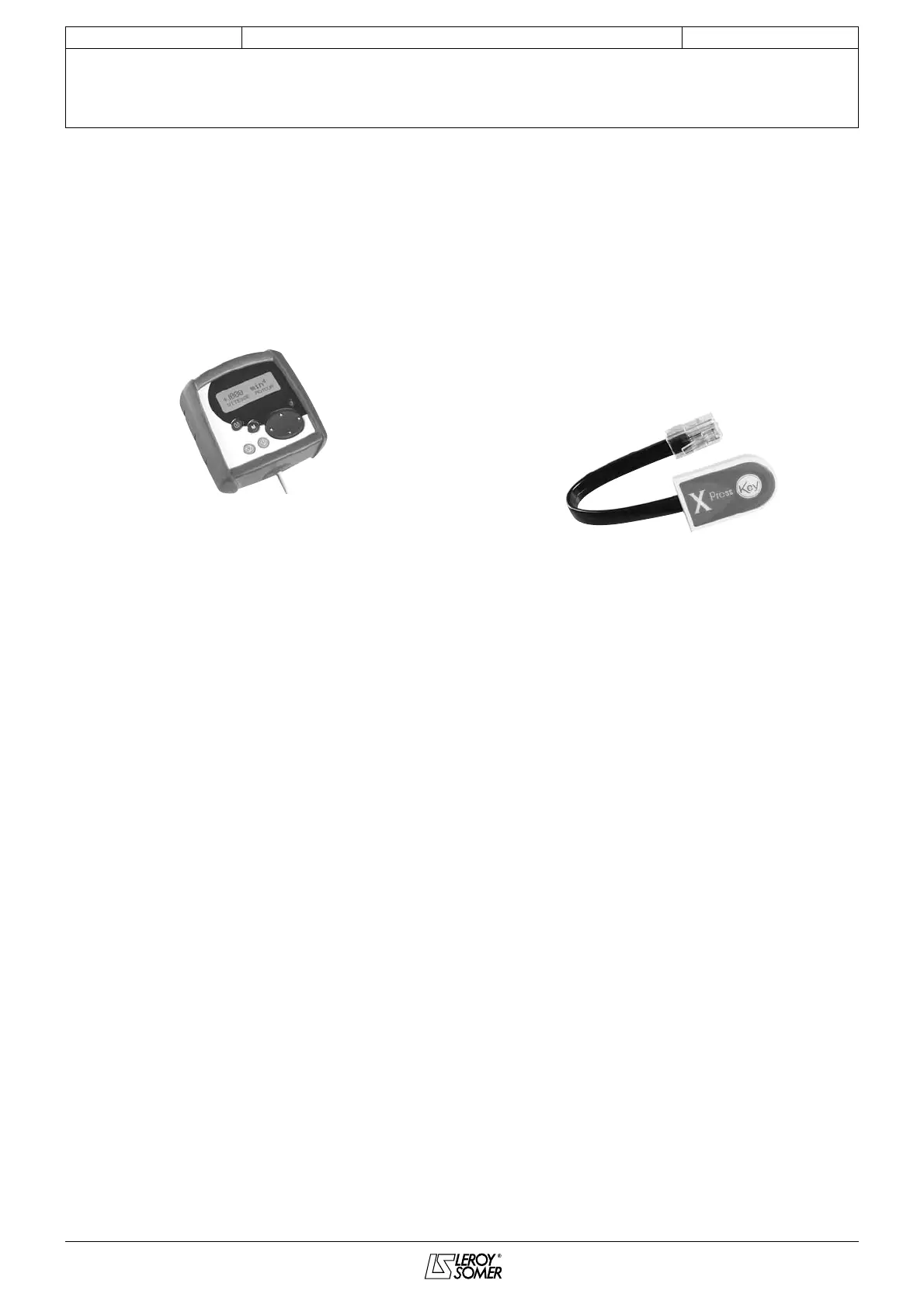

PX LCD parameter-setting console
7.13 - Parameter-setting software
option (SOFTVMA 30)
This option provides access to the drive internal settings from
a PC. The software is compatible with WINDOWS 95, 98, NT,
2000, XP and subsequent versions.
See VARMECA 30 parameter-setting manual.
Description of the option:
1 CD ROM
1 cable, L = 3 m
7.14 - Operator display option
(PAD VMA 30)
The VARMECA 30 operator display consists of a display unit,
three control buttons and three parameter-setting keys.
Please contact Leroy-Somer.
7.15 - XPress Key (PX Key)
7.15.1 - General
The XPress Key option is used to save a copy of all the
VARMECA 30 parameters so that they can be duplicated very
simply in another drive.
7.15.2 - Setting drive parameters with XPress
Key
• Connect XPress Key to the serial port via a RJ45 connector.
• With the drive locked, press the "Key" button for a first time.
Confirm the transfer of parameters into the drive by pressing
the "Key" button a second time.
CAUTION:
If confirmation is not received within 10 seconds, the
procedure is cancelled.
