Linksys LAPN600 User Manual

91
Using 802.1x Mode (without WPA)
This is very similar to using WPA-Enterprise.
The only difference is that on your client, you must NOT enable the setting The key is pro-
vided for me automatically.
Instead, you must enter the WEP key manually, ensuring it matches the WEP key used on the
access point.

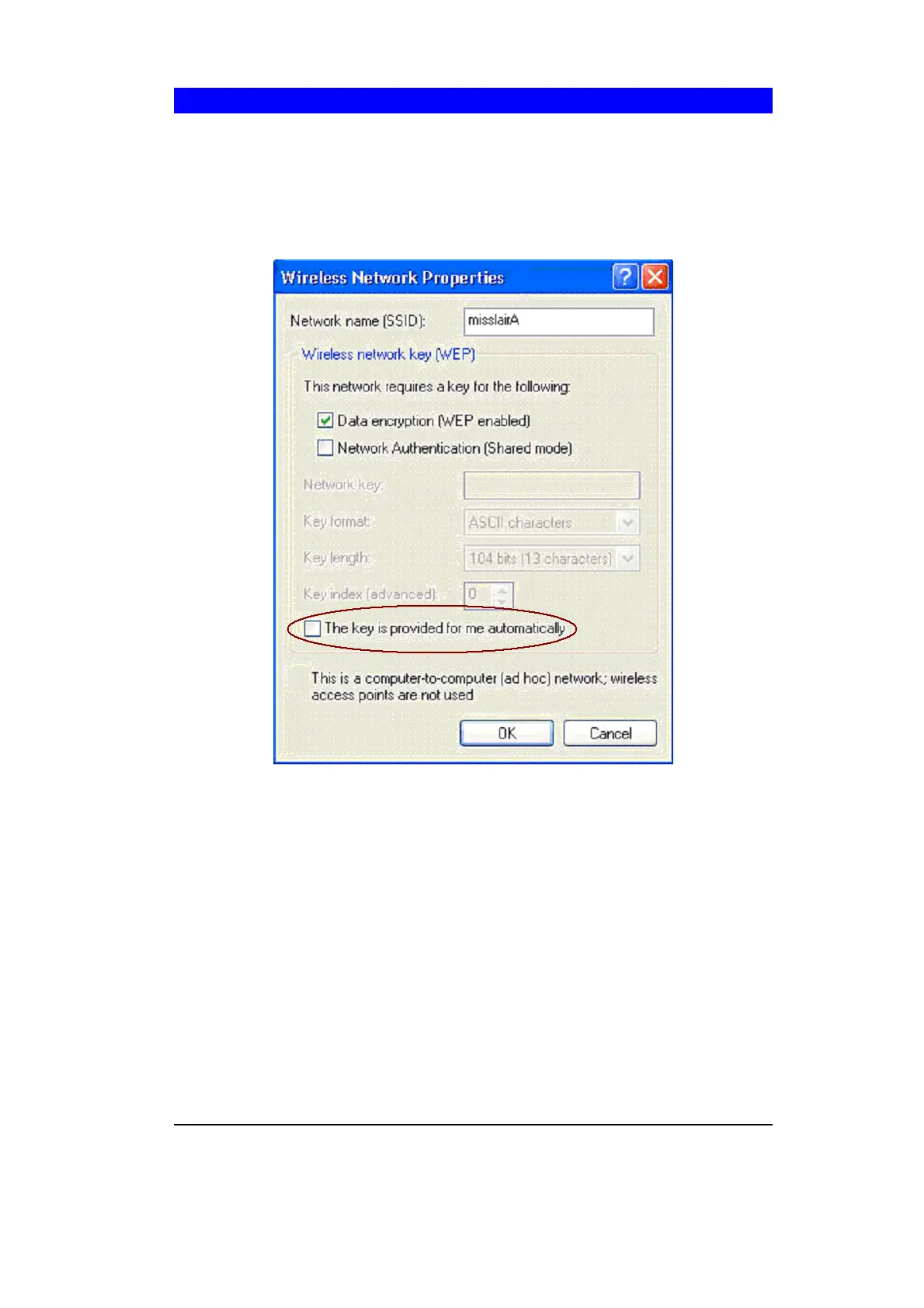

Figure 71: Properties Screen
Note:
On some systems, the 64-bit WEP key is shown as 40-bit and the 128-bit WEP key is shown
as 104-bit. This difference arises because the key input by the user is 24 bits less than the key
size used for encryption.

Linksys LAPN600 Specifications

General

Color	white
Wi-Fi Speed	600 gigabits per second
Frequency Band	2.4 ghz
QoS Traffic Prioritization	no
Wireless Standard	n
Data Encryption	yes
Encryption Type	other, wep, wpa, wpa2
Security Features	rogue ap detection; ssid to vlan mapping; 802.1x supplicant
Ports	rj-45
Bluetooth	no

Weight and Dimensions

Height	1.72 inches
Width	9.33 inches
Net Weight	1.1 pounds
