Linksys SRW2024 User Manual

3
Chapter 2: Getting to Know the Switch
Overview
16- or 24-Port 10/100/1000 Gigabit Switch with WebView
Chapter 2: Getting to Know the Switch
Overview
The 16- and 24-Port Switches differ in number of LEDs and ports. Pictured in this chapter is the 16-Port Switch;
however, the other Switch is similar in form and function.
The Front Panel
The Switch's LEDs and ports are located on the front panel.
LEDs
SYSTEM Green. The SYSTEM LED lights up to indicate that the Switch is powered on.
Link/Act Green. The Link/Act LED lights up to indicate a functional network link through the
corresponding port (1 through 16 or 1 through 24) with an attached device. It flashes to
indicate that the Switch is actively sending or receiving data over that port.
Gigabit Orange. The Gigabit LED lights up to indicate a Gigabit connection on the corresponding
port (1 through 16 or 1 through 24).
Ports
1-24 The Switch is equipped with 16 or 24 auto-sensing, Ethernet network ports, which use RJ-
45 connectors. These ports support network speeds of 10Mbps, 100Mbps, and 1000Mbps.
They can operate in half and full-duplex modes. Auto-sensing technology enables each
port to automatically detect the speed of the device connected to it (10Mbps, 100Mbps, or
1000Mbps), and adjust its speed and duplex accordingly.

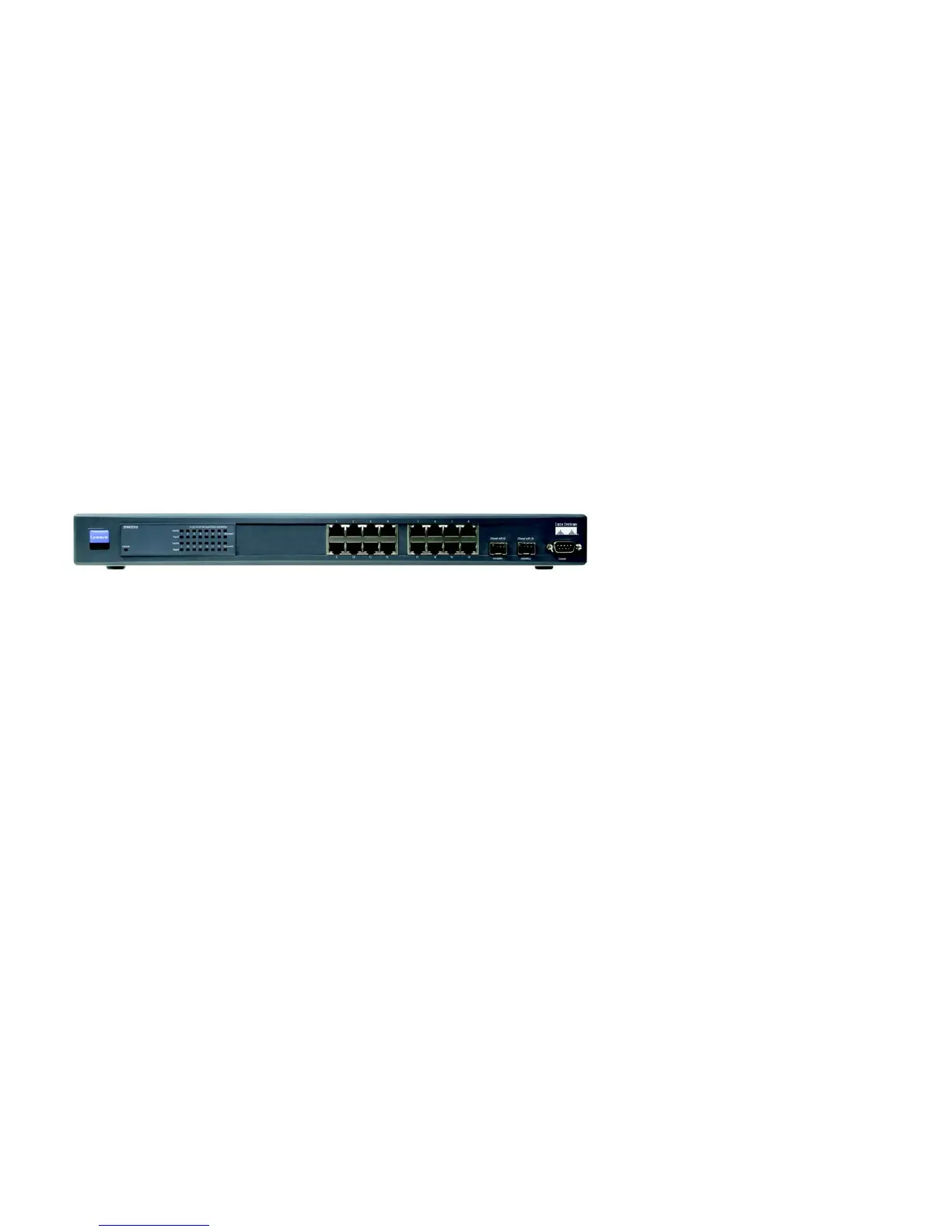

Figure 2-1: Front Panel of the 16-Port Switch
