Chapter 5: Using the Web-based Utility for Configuration
Maintenance Tab - HTTP File Download
16- or 24-Port 10/100/1000 Gigabit Switch with WebView
Port. Select the port you want to test.
Test Result. This is the test result. OK indicates that the cable passed the test. No Cable means there is no cable
connected to the port. Open Cable means the cable is connected on only one side. Short Cable indicates that a
short has occurred in the cable. Undefined indicates that the test could not be properly performed.
Cable Fault Distance. This is the distance from the port at which the cable error occurred.
Last Update. This is the last time the port was tested.
Test Now. Click the Test Now button to perform the test.
Approximate Cable Length. This is the approximate length of the tested cable. The Approximate Cable Length
test can be performed only when the port is up and operating at 1Gbps.
Maintenance Tab - HTTP File Download
The HTTP File Download screen allows you to download a file to the Switch via HTTP.
Source File Name. Enter the file path of the file you want to download, or click the Browse button to browse for
the source file.
Click the Submit button to begin the download.
Help Tab
When you are viewing any screen of the Web-based Utility and you want help information about the settings on
that screen, click the Help tab. The relevant help information will automatically be displayed. At the end of the
help information, there is a link available to take you to an index of help information, if you want additional
information.

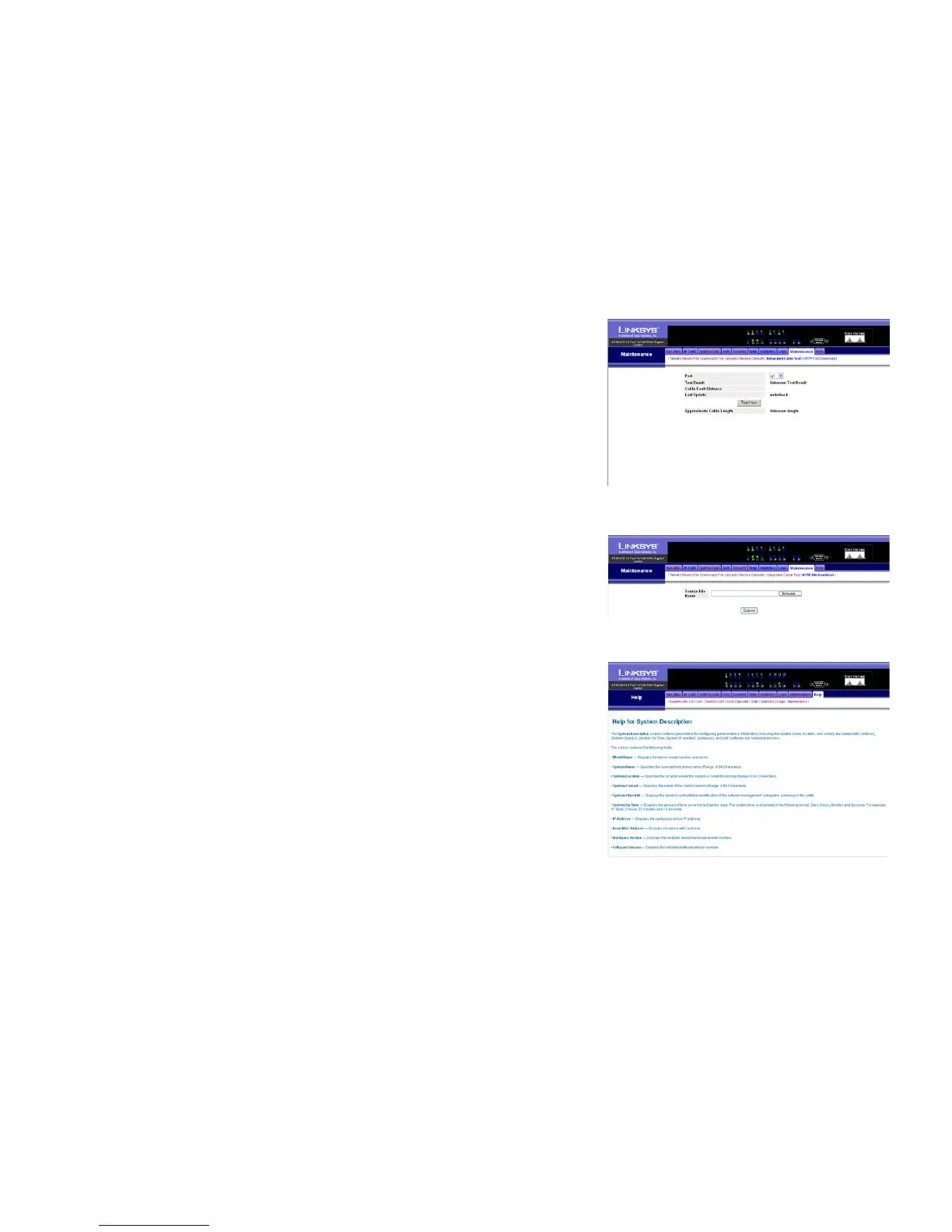

Figure 5-65: Integrated Cable Test - Perform Test
Figure 5-66: Maintenance - HTTP File Download
Figure 5-67: Help - System Description
