Chapter 5: Using the Web-based Utility for Configuration
Sys. Info. (System Information) Tab - System Mode
16- or 24-Port 10/100/1000 Gigabit Switch with WebView
System Contact. Enter the name of the contact person for this Switch.
System up time. This displays the amount of time that has elapsed since the Switch was last reset.
IP Address. This is the IP address of the Switch.
Base MAC Address. This is the MAC address of the Switch.
Hardware Version. Displayed here is the version number of the Switch’s hardware.
Software Version. Displayed here is the version number of the Switch’s software.
Click the Submit button to save your changes.
Sys. Info. (System Information) Tab - System Mode
The System Mode screen allows you to enable or disable the Jumbo Frames feature. Jumbo Frames enable the
travel of identical data in fewer frames; this promotes faster data transmissions.
Jumbo Frames. If you want to enable this feature on the Switch, select Enabled. You will be notified that this
feature will be enabled after the Switch is reset. Otherwise, select Disabled.
Click the Submit button to save your changes.
Sys. Info. (System Information) Tab - Forwarding Database
The Forwarding Database screen lets you define the aging interval of the Switch.
Aging Interval. This specifies the aging out period on the Forwarding Database.
Click the Submit button to save your changes.
A table of VLAN (Virtual Local Area Network) entries is listed.
VLAN ID. Displayed here is the ID number of the VLAN for this entry.
MAC Address. This is the MAC address of the entry.
Port. This is the port number for this entry.
ifIndex. This is the interface for this entry.

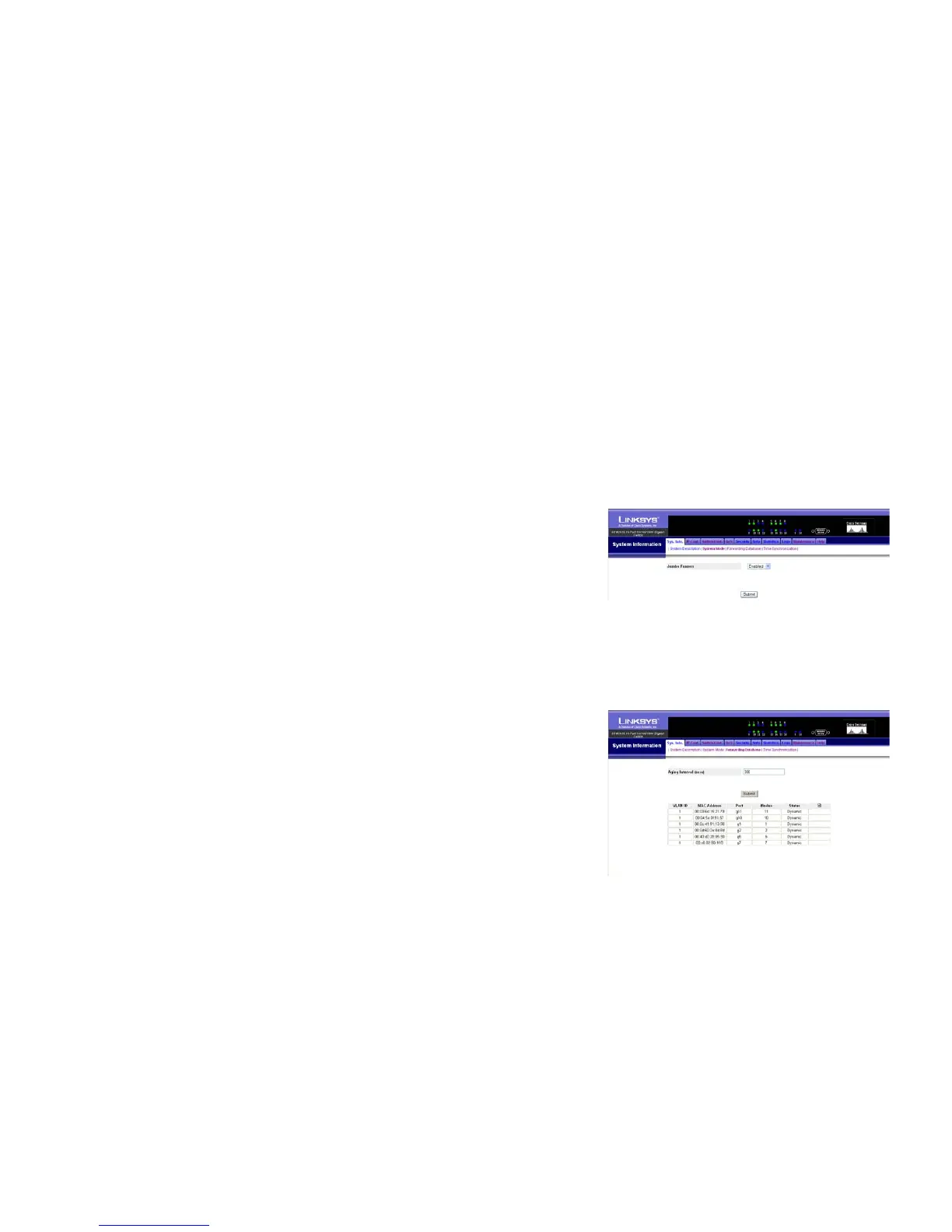

Figure 5-3: System Information - System Mode
Figure 5-4: System Information - Forwarding Database
