28
Chapter 5: Using the Web-based Utility for Configuration
QoS Tab - CoS to Queue
16- or 24-Port 10/100/1000 Gigabit Switch with WebView
% of WRR Bandwidth. This is the percentage of bandwidth used by WRR. This automatically changes if you
change the WRR Weight for a queue.
Click the Submit button to save your changes.
QoS Tab - CoS to Queue
The CoS to Queue screen lets you assign CoS settings to traffic queues.
Class of Service. This specifies the CoS priority tag values (0 is the lowest and 7 is the highest).
Queue. This indicates the traffic forwarding queue to which the CoS priority is mapped. You can designate up to
four traffic priority queues.
Restore Defaults. To restore the factory defaults for mapping CoS values to a forwarding queue, click this
checkbox.
Click the Submit button to save your changes.
Security Tab - ACL
The ACL screen lists the access profiles and allows you to configure access profiles for the Switch.
Access Profile. This is the name of the access profile.
Activated. You can activate an access profile by selecting the radio button. You can deactivate an access profile
by deselecting the radio button.
If you want to delete a current access profile, then select the access profile’s X icon and click the Submit button.
To create an access profile, click the paper and pencil icon. To modify an access profile, click the access profile’s
pencil icon. On the new screen that appears, you can modify the access profile.
Access Profile Name. This is the name of the access profile.
Rule Priority. This is the rule priority. When a packet is matched to a rule, user groups are granted permission or
denied access.
Management Method. This is the method for which the access profile is defined.
Interface. This indicates the interface type to which the rule applies.

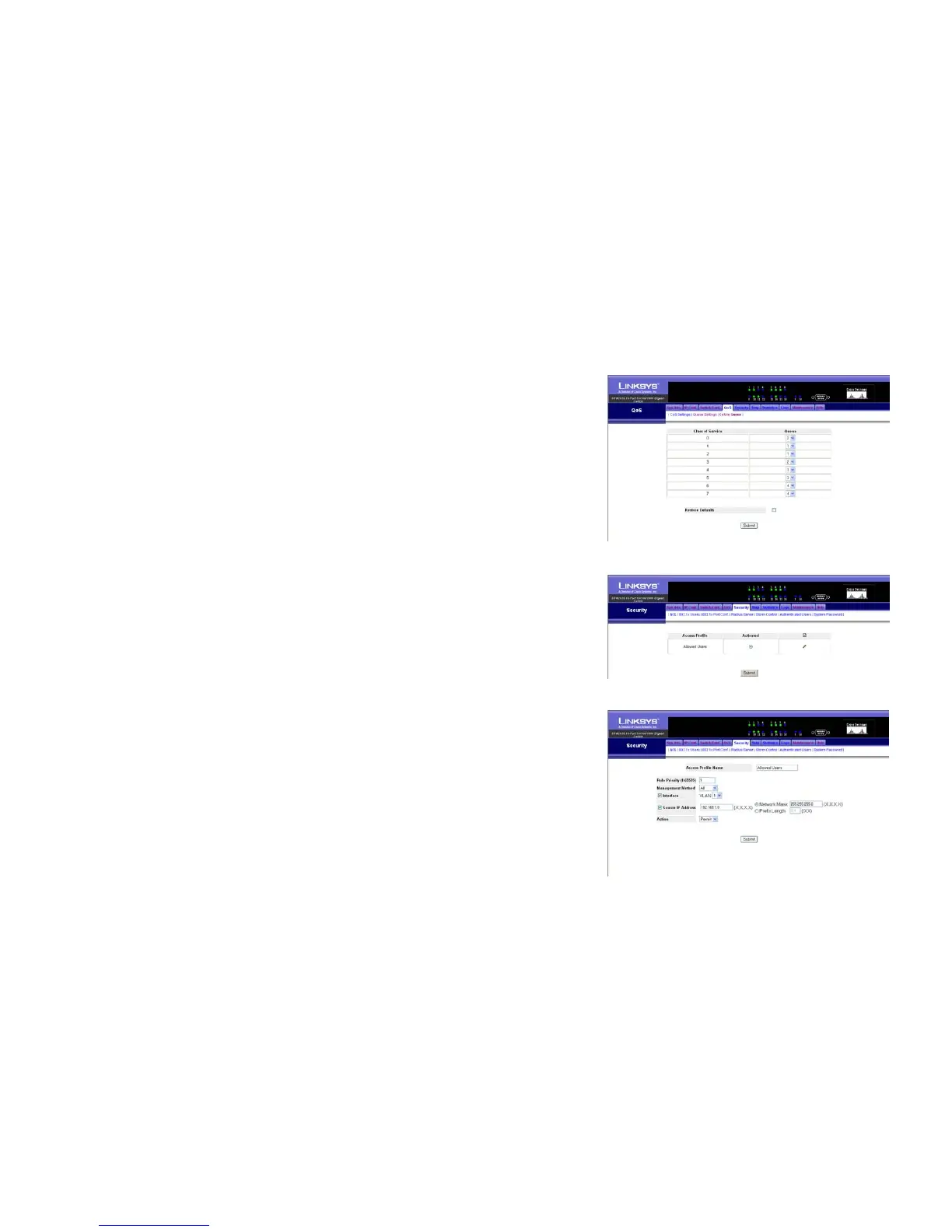

Figure 5-21: QoS - CoS to Queue
Figure 5-22: Security Tab - ACL
Figure 5-23: ACL - Add Access Profile
