Chapter 4: Using the Console Interface for Configuration
Configuring the Switch through the Console Interface
16- or 24-Port 10/100/1000 Gigabit Switch with WebView
Telnet Configuration
On the Telnet Configuration screen, the time-out is displayed.
Select Edit to make changes. When your changes are complete, press the Esc key to return to the Action menu,
and select Save to save your changes.
IP Configuration
The IP Configuration screen displays these choices: the Switch’s IP Address Settings, HTTP, and Network
Configuration.
IP Address Configuration
The Switch’s IP information is displayed here.
IP Address. The IP Address of the Switch is displayed. (The default IP address is 192.168.1.254.) Verify that the
address you enter is correct and does not conflict with another device on the network.
Subnet Mask. The subnet mask of the Switch is displayed.
Default Gateway. The IP address of your network’s default gateway is displayed.
Management VLAN. The VLAN ID number is displayed.
DHCP client. The status of the DHCP client is displayed. If you want the Switch to be a DHCP client, then select
ENABLE. If you want to assign an static IP address to the Switch, then enter the IP settings and select DISABLE.
Select Edit to make changes. When your changes are complete, press the Esc key to return to the Action menu,
and select Save to save your changes.

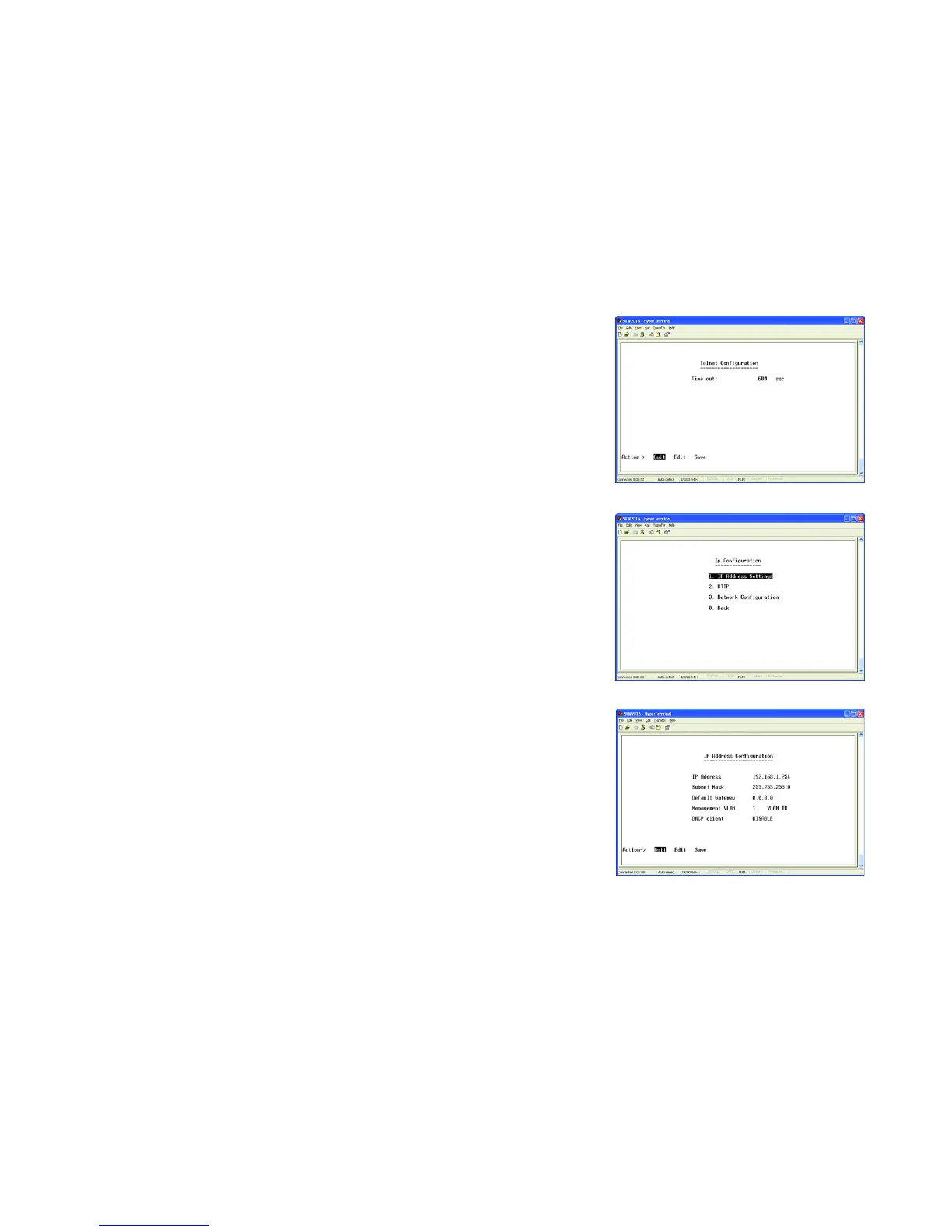

Figure 4-12: Telnet Configuration
Figure 4-13: IP Configuration
Figure 4-14: IP Address Configuration
