26
Chapter 5: Using the Web-based Utility for Configuration
Switch Conf. (Configuration) Tab - Port Mirroring
16- or 24-Port 10/100/1000 Gigabit Switch with WebView
Switch Conf. (Configuration) Tab - Port Mirroring
The Port Mirroring screen lets you configure the Switch’s port mirroring settings. Port mirroring can be used for
diagnostics or debugging. It forwards copies of incoming and outgoing packets from one port to a monitoring
port.
Ports to be Mirrored. Select the port number from which port traffic is mirrored.
Probe Port. Select the port number to which port traffic is copied.
Mode. Select the appropriate port mode configuration, RxOnly (receiving only), TxOnly (transmitting only), or
Both (receiving and transmitting).
Click the Submit button to save your changes.
Your port mirroring sessions are listed in a table.
Probe Port. This is the port number to which port traffic is copied.
Port To Be Mirrored. This is the port number from which port traffic is mirrored.
Copy Direction. This displays the traffic direction(s) being monitored.
Remove. If you want to delete a port mirroring session, click its Remove checkbox and the Remove button.
Switch Conf. (Configuration) Tab - LACP
The LACP screen allows you to enable the use of the Link Aggregation Control Protocol (LACP) on relevant links
for LAGs. Listed on this screen are the LACP LAGs.
Port. This is the port number using LACP.
Port Priority. This is the LACP priority value for the port.
LACP Timeout. This is the administrative LACP timeout period, Short or Long.
Click the pencil icon to modify settings for a port. A new screen will appear, displaying the available LACP
settings.
Global Parameters
LACP System Priority. Select the LACP priority value for the system.

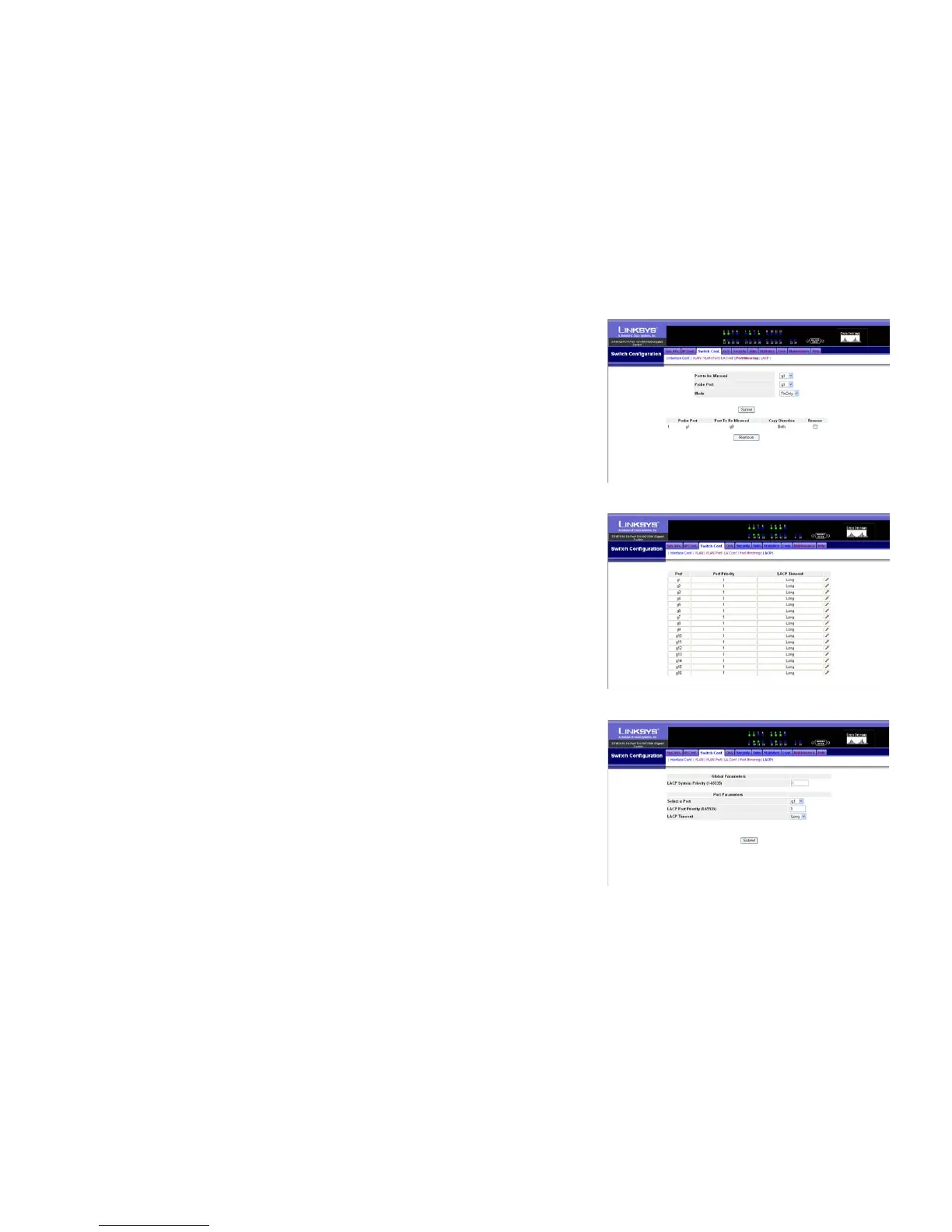

Figure 5-16: Switch Configuration - Port Mirroring
Figure 5-17: Switch Configuration - LACP
Figure 5-18: LACP - Change Settings
