Chapter 4: Using the Console Interface for Configuration
Configuring the Switch through the Console Interface
16- or 24-Port 10/100/1000 Gigabit Switch with WebView
4. Set the serial port settings as follows:
Bits per second: 38400
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None
Then click OK.
Configuring the Switch through the Console Interface
The console screens consist of a series of menus. Each menu has several options, which are listed vertically. You
select a menu option when you highlight it; pressing the Enter key activates the highlighted option.
To navigate through the menus and actions of the console interface, use the up or down arrow keys to move up or
down, and use the left or right arrow keys to move left or right. Use the Enter key to select a menu option, and use
the Esc key to return to the previous selection. Menu options and any values entered or present will be
highlighted. The bottom of the screen lists the actions available.
Switch Main Menu
The System Main Menu screen displays these choices:
1. System Configuration Information Menu
2. Port Status
3. Port Configuration
4. Help

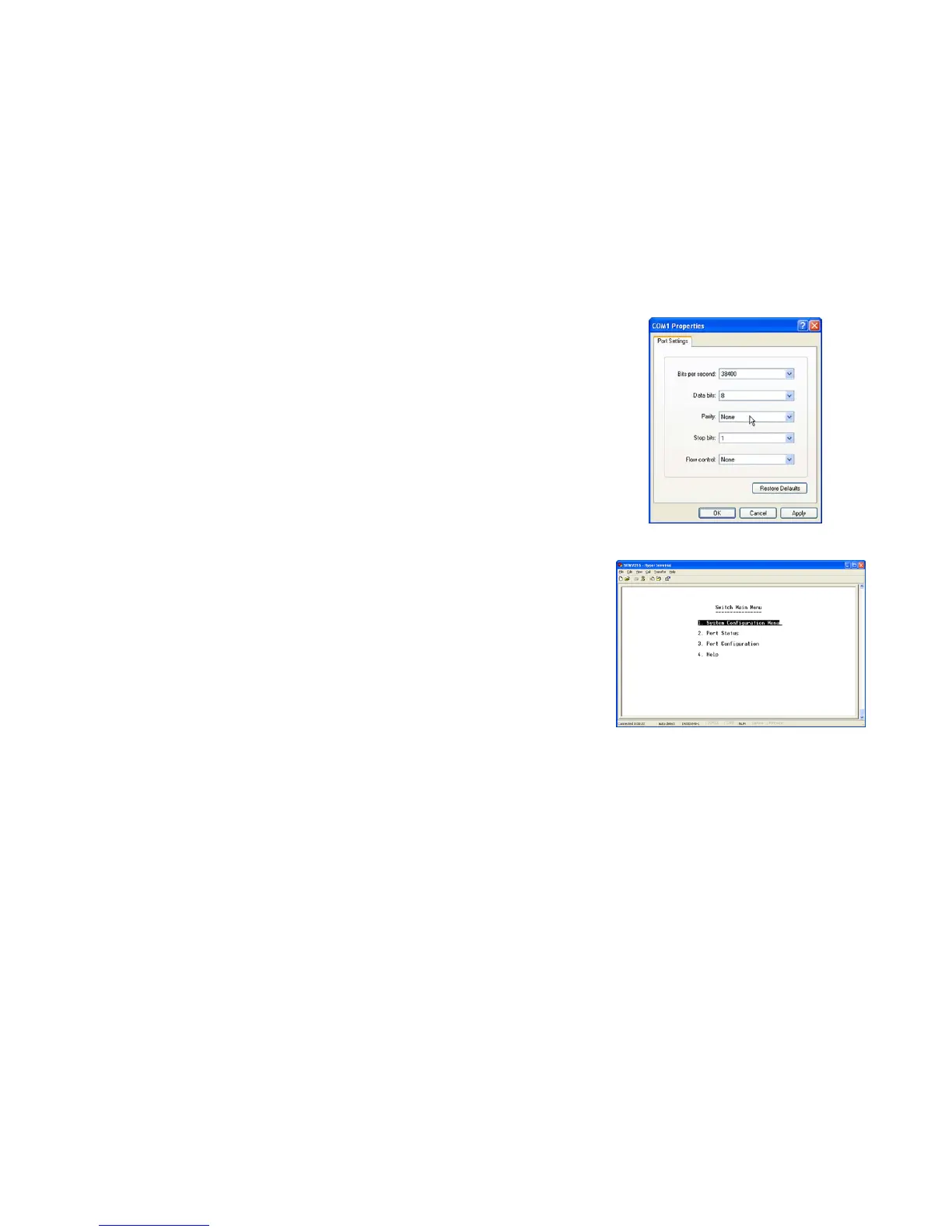

Figure 4-5: Switch Main Menu
Figure 4-4: COM1 Properties
