Mahindra 60 Series User Manual

103
60 Series 2WD / 4WD, Model - 8560

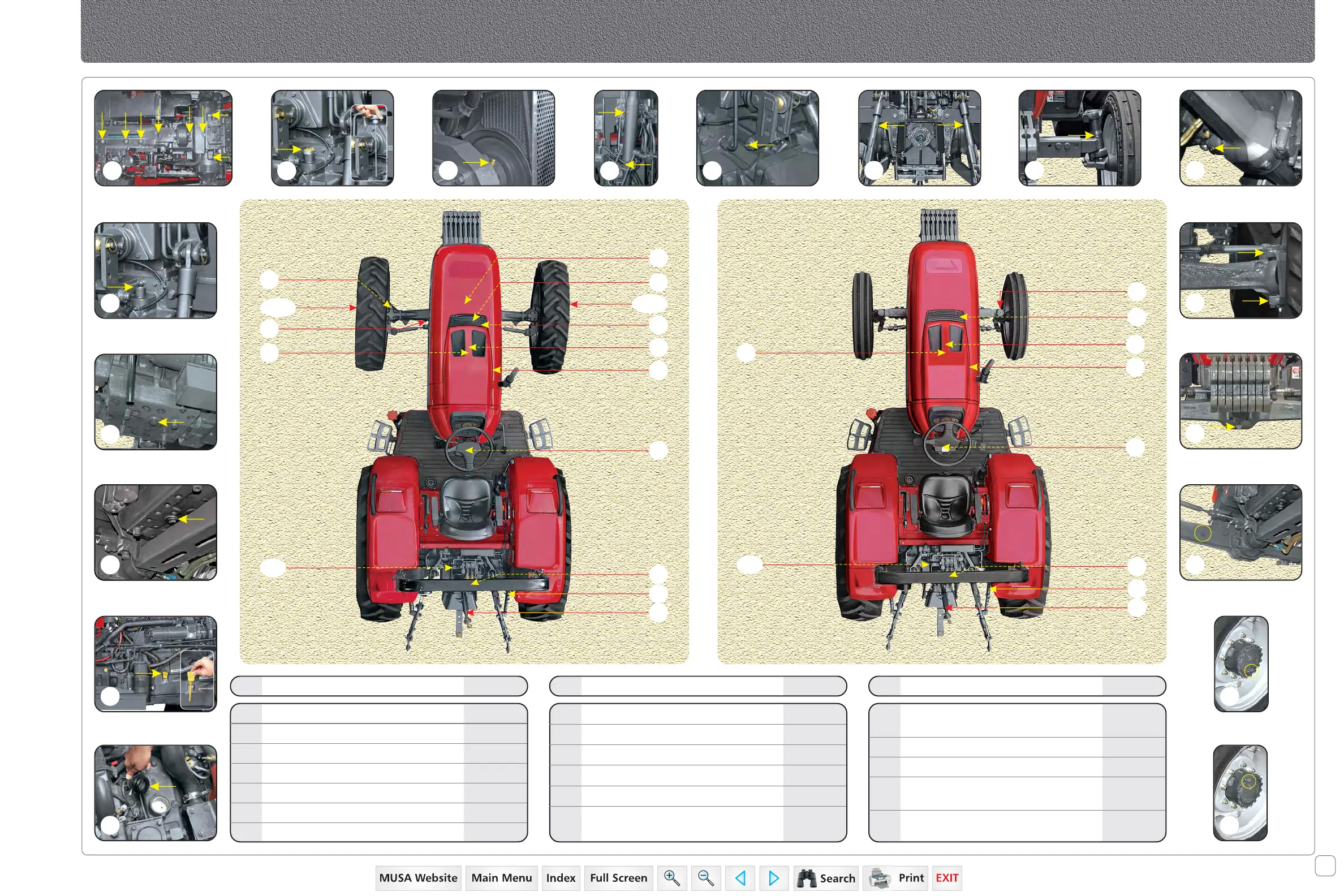

Lubrication and Greasing Chart - 8560 2WD / 4WD
8
4
33
2
1
1311
5
97
14
15
16
18
17
6 10
12
1 Engine Oil Filler Cap EO
2 Engine Oil Dipstick EO
3 Crankcase Drain Plug - 4WD EO
4 Crankcase Drain Plug - 2WD EO
5 Transmission Oil Filling GO
6 Transmission Oil Drain Plug GO
7 Transmission Oil Dipstick GO
No.
D e s c r i p t i o n Lubricant
14 Hub Reduction Steering CL
Case LH / RH - 4WD
15 Front Axle Oil Drain Plug - 4WD FO
16 Beam Housing Drain Plug - 4WD FO
17 Hub Housing Level Plug FO
LH / RH - 4WD
18 Hub Housing Fill Plug FO
LH / RH - 4WD
No. Description Lubricant
8 Roller Bearing Front Cover CL
9 Top Link CL
10 Bell Crank CL
11 Lift Rod LH / RH CL
12 Steering Knuckle Post LH / RH - 2WD CL
13 Front Axle Central CL
Trunnion Support - 4WD
No. Description Lubricant
1
2
3
1
2
4
6
5/7
6
5/7
8
9
11
10
8
9
11
10
12
13
14
15
16
17/18
17/18
