50
60 Series 2WD/4WD, Model - 8560
Wheel Tread Adjustment

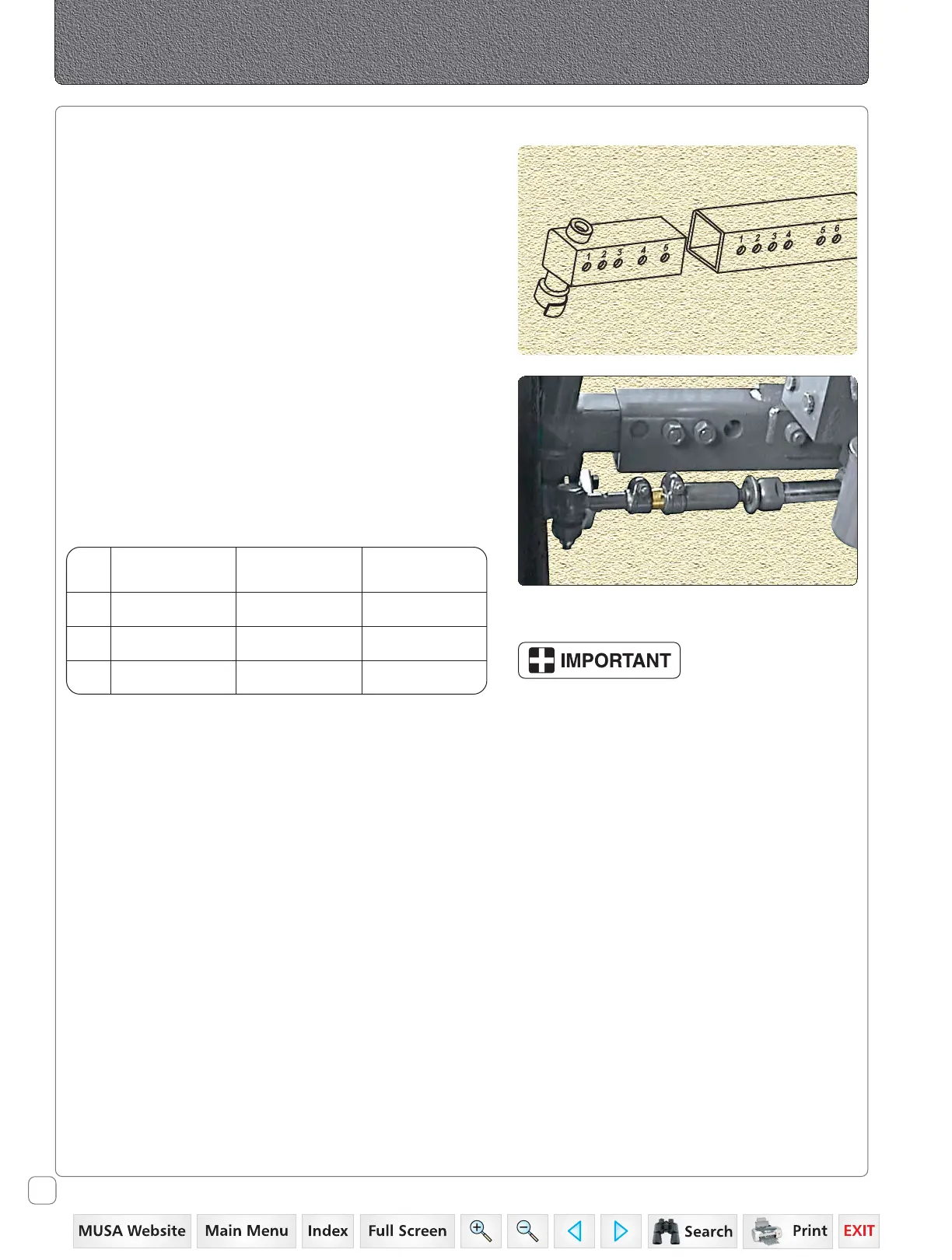

Adjustment of Front Wheel Tread - 2WD
Adjustment of Front Wheel Tread for 8560 2WD Adjustment
of the front axle extension allows variation of the tread
in 4" (10.16 cm) increments from 58” (121.92 cm) to
66" (142.2 cm). The axle can be off-set in 4" (10.16 cm)
increments as required.
Milled in the tie rod are adjustment grooves, which give
adjustment to correspond with the axle extension settings.
Whenever the axle extensions are altered the tie rod and
toe-in must be re-set. It is to be noted that the track width
may vary with change in the front tire size.
To adjust the front wheel tread, raise the front end of the
tractor and remove bolts holding the axle extension pieces.
Remove the tie rod nut and bolt and pull out the axle
extensions.
Move the axle extensions to the required position and
adjust the tie rod to the corresponding position. Replace
bolts in holes selected and tighten the axle extensions.
Replace the tie rod bolt and tighten.
Sr. Tread Width F.A. Extenstion F.A. Box (Piece)
No. Holes Holes
1. 58" 1, 2, 3 2, 3, 5
2. 62" 1, 2, 5 1, 2, 6
3. 66" 2, 3, 5 1, 2, 5
# For Front Tire Size 11L x 15
An arrow is marked on the sidewall of the tire,
which must always point in the direction of
forward rotation to obtain maximum traction.
